Husqvarna R316 Ts AWD - 967291801 (2015) Riding Mower

Model: R316 Ts AWD - 967291801 (2015)

Back To Assemblies

Save Part Not Listed?
product name

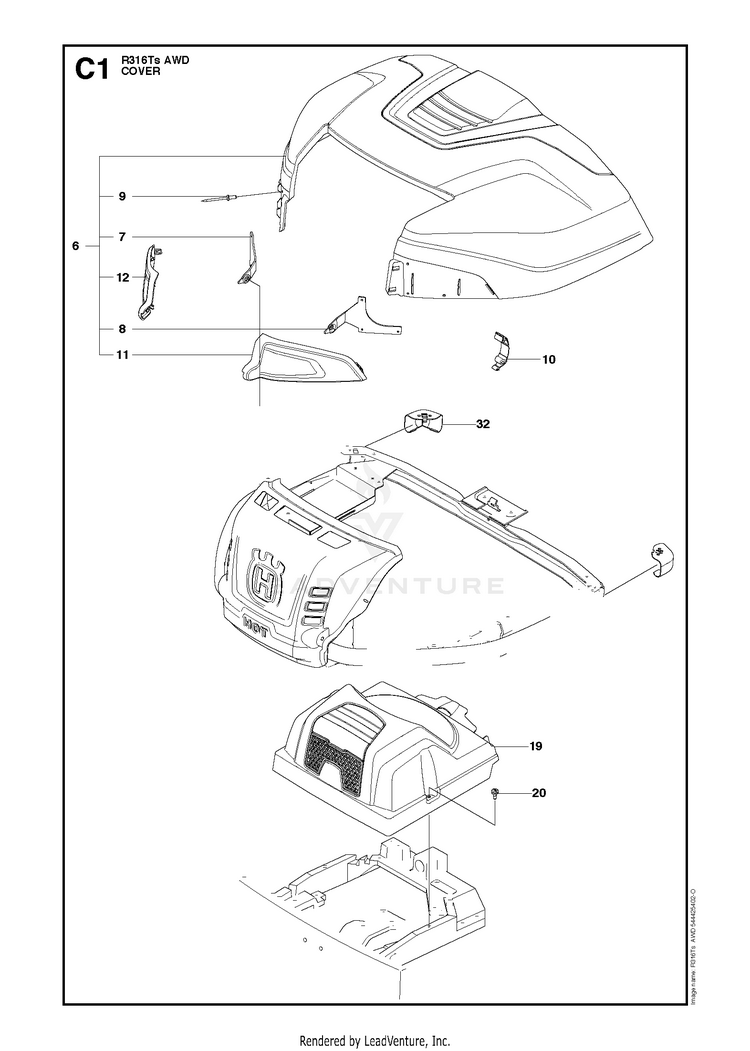

COVER 3

...
...
6
NEEDS DESCRIPTION HUS-577614702
...
20
SCREW HUS-574856201
...
8
HINGE HUS-578113702
...
19
TRANSMISSION COVER HUS-578261304
...
32
PLUG HUS-577903301
...
10
CLIP GRAY HUS-503894703
...
9
Rivet HUS-722795402
...
11
COVER HUS-577612602
...
7
HINGE HUS-578113701
...
12
COVER HUS-577612601
