Husqvarna R316 Ts AWD - 967291801 (2015) Riding Mower

Model: R316 Ts AWD - 967291801 (2015)

Back To Assemblies

Save Part Not Listed?
product name

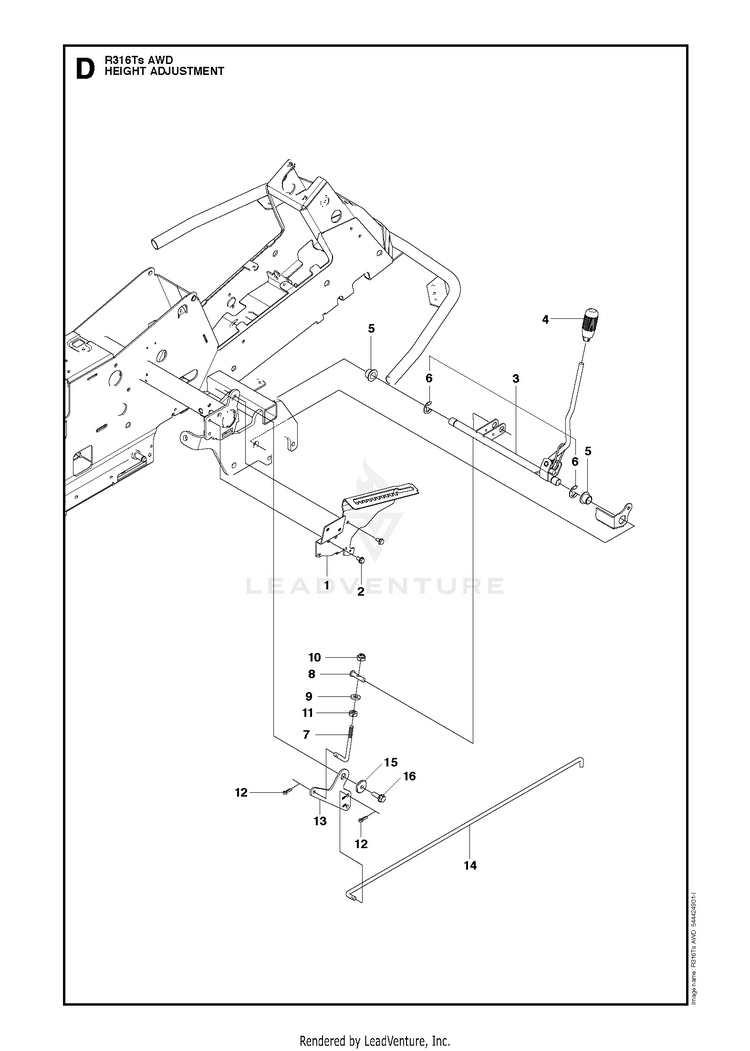

HEIGHT ADJUSTMENT

...
...
15
Washers HUS-584288604
...
6
CIRCLIP HUS-735312220
...
5
BEARING FLANGE HUS-584871302
...
12
Split Pin HUS-721618301
...
7
LINKAGE HUS-506908201
...
11
NUT HUS-731231801
...
1
BRACKET ASSY HUS-578001302
...
3
HEIGHT ADJUSTER HUS-577999901
...
8
Pins HUS-506784601
...
9
GSPH HUS-596134901
...
16
BOLT HUS-506597401
...
13
LINK HUS-578040701
...
2
BOLT HUS-506570103
...
10
LOCKNUT M8 HUS-732211801
...
4
Handles HUS-588164101
...
14
CONNECTION ROD HUS-523114501
