Husqvarna R316 T Riding Mower

Model: R316 T

Back To Assemblies

Save Part Not Listed?
product name

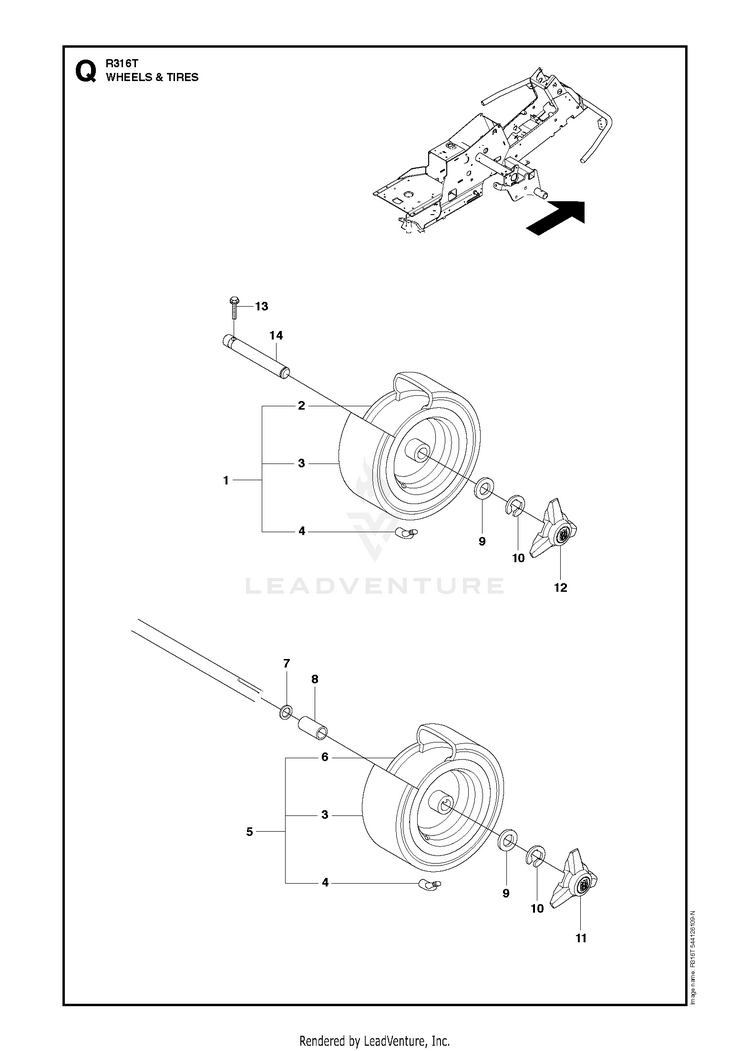

WHEELS & TIRES

...
...
1
WHEEL HUS-523012202
...
6
RIM HUS-523034801
...
4
VALVE HUS-506574301
...
11
HUB CAP HUS-544353501
...
13
BOLT FLANGE - M8X40\ HUS-725245961
...
9
WASHER HUS-506504803
...
12
HUB CAP HUS-544353502
...
3
TIRE HUS-535460001
...
7
WASHER HUS-506504805
...
2
RIM HUS-523034501
...
14
AXLE HUS-535470801
...
8
SPACE SLEEVE HUS-506596203
...
10
RETAINING RING HUS-506899001
...
5
WHEEL HUS-523012602
