Husqvarna R316 T AWD Riding Mower

Model: R316 T AWD

Back To Assemblies

Save Part Not Listed?
product name

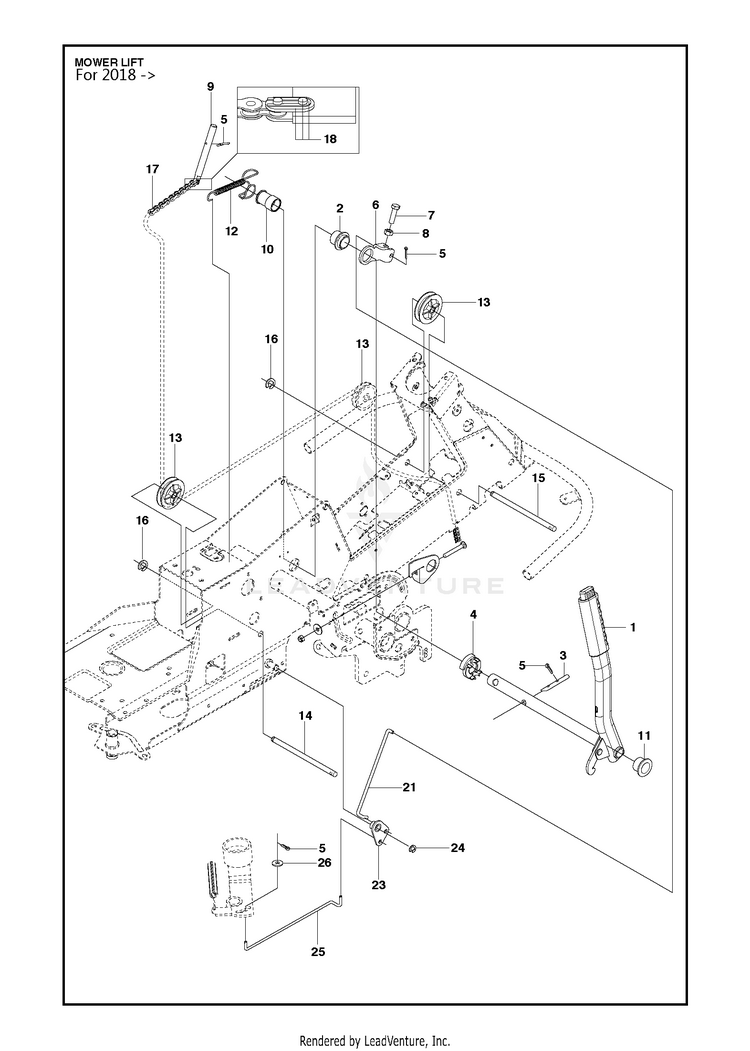

MOWER LIFT / DECK LIFT

...
...
26
SPACER HUS-734116441
...
11
BEARING FLANGE HUS-584871301
...
12
SPRING HUS-588927501
...
17
CHAIN HUS-506554609
...
5
Split Pin HUS-721618301
...
24
RETAINING RING HUS-735311420
...
6
LIFTING ARM LINK HUS-588927001
...
1
NEEDS DESCRIPTION HUS-590880601
...
8
Nut HUS-731232001
...
9
Rods HUS-588927401
...
3
PIN HUS-525406601
...
18
LINK HUS-506554701
...
23
LINK HUS-544378601
...
25
CONNECTION ROD HUS-544448801
...
7
SCREW HUS-725249751
...
21
CONNECTION ROD HUS-544456901
...
14
NEEDS DESCRIPTION HUS-582871901
...
16
Lock Ring HUS-735311820
...
4
NEEDS DESCRIPTION HUS-588927101
...
10
NEEDS DESCRIPTION HUS-588927301
...
15
NEEDS DESCRIPTION HUS-582871902
...
2
NEEDS DESCRIPTION HUS-588926901
...
13
PULLEY HUS-506905601
