Husqvarna R220T - 966785701 (2012-03) Riders

Model: R220T - 966785701 (2012-03)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

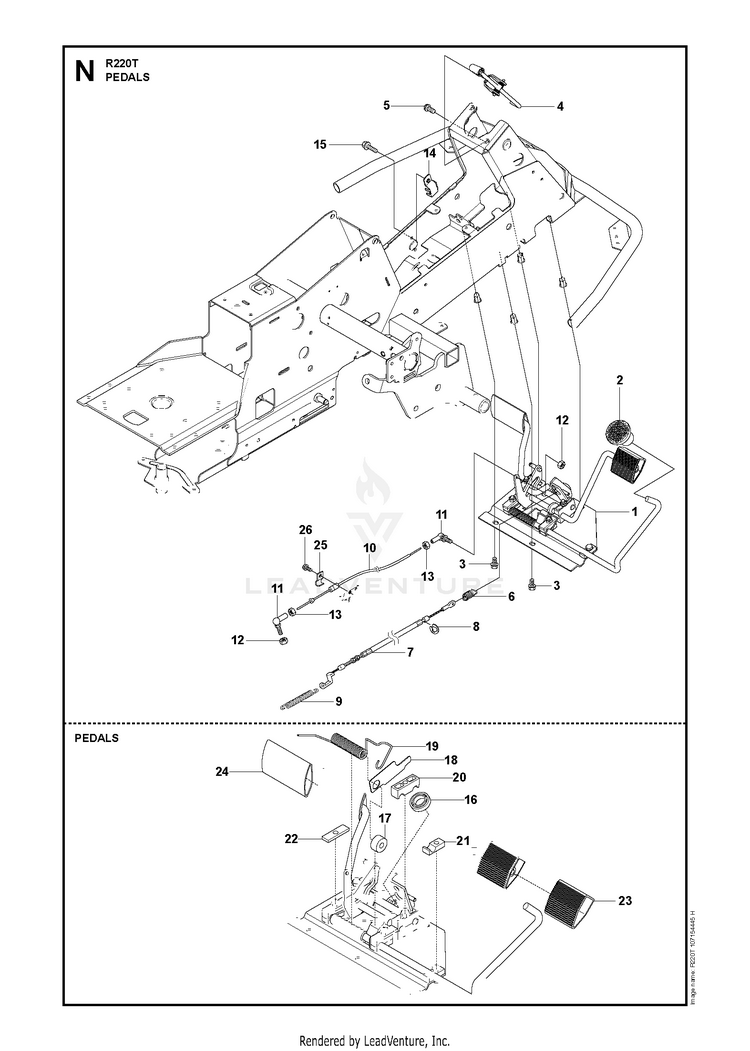

PEDALS

...
...
1
PEDAL PLATE ASSY HYDROSTATIC K HUS-583951401
...
2
KNOB, THREADED HUS-586727401
...
3
BOLT HUS-506570104
...
4
BRAKE LEVER ASSY HUS-544403101
...
5
SCREW HUS-725236461
...
6
SPRING HUS-506946301
...
7
BRAKE WIRE HUS-506992701
...
8
E-RING 5 HUS-735310920
...
9
SPRING HUS-506535603
...
10
CONTROL CABLE TRANSMISSION HUS-582152001
...
11
CONNECTOR, BALL JOINT HUS-578776801
...
12
LOCKNUT M5 HUS-732211401
...
13
NUT HUS-731231401
...
14
BRACKET HUS-522430801
...
15
SCREW HUS-725236461
...
16
BALL BEARING 6002-2RS1 HUS-738210204
...
17
ROLLER HUS-535459901
...
18
PLATE HUS-535459601
...
19
SPRING HUS-535459501
...
20
PEDAL SHAFT CLAMP HUS-506506501
...
21
SUPPORT HUS-506954101
...
22
PLATE HUS-506804101
...
23
PEDAL RUBBER HUS-586966401
...
24
PEDAL RUBBER L = 102MM HUS-586966402
...
25
CLAMP HUS-506566501
...
26
SCREW HUS-725236461
