Husqvarna R220T - 966785701 (2012-03) Riders

Model: R220T - 966785701 (2012-03)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

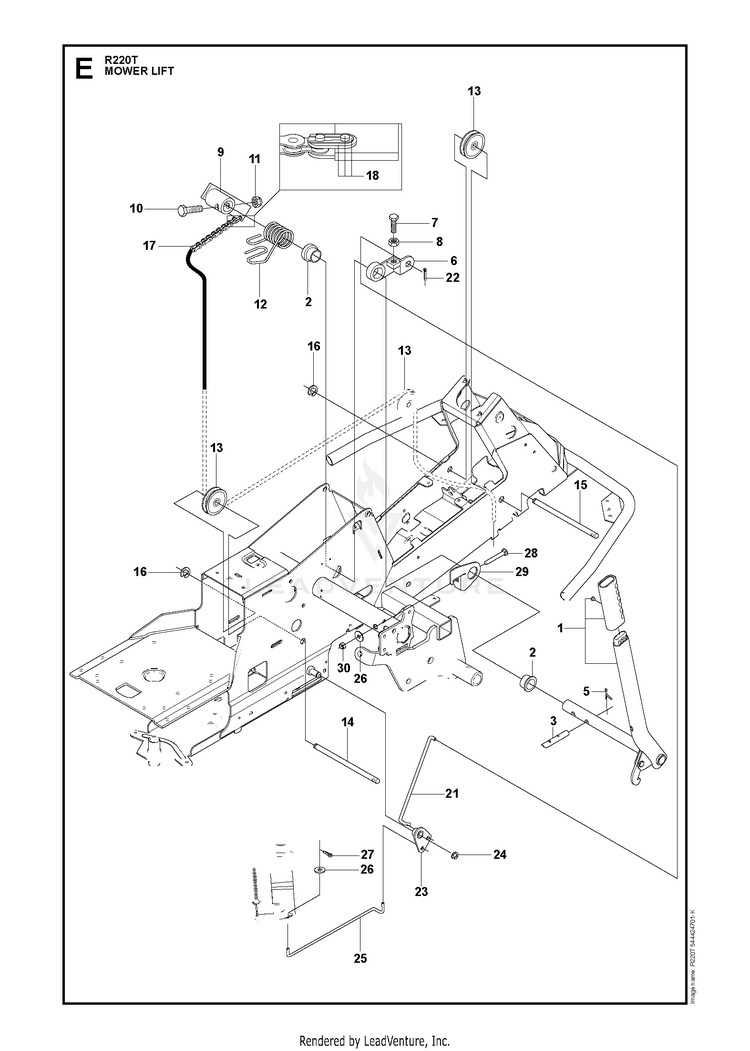

MOWER LIFT / DECK LIFT

...
...
1
LIFTING LEVER ASSY HUS-577966701
...
2
BEARING FLANGE HUS-584871301
...
3
PIN HUS-525406601
...
5
Split Pin HUS-721618301
...
6
LEVER CLUTCH HUS-506784301
...
7
SCREW HUS-725249751
...
8
Nut HUS-731232001
...
9
LIFTING ARM HUS-544433601
...
10
Screw HUS-725254251
...
11
Nut HUS-732252201
...
12
SPRING HUS-506916801
...
13
PULLEY HUS-506905601
...
14
SHAFT HUS-506905701
...
15
SHAFT HUS-506905702
...
16
Lock Ring HUS-735311820
...
17
CHAIN HUS-506554607
...
18
LINK HUS-506554701
...
21
CONNECTION ROD HUS-544456901
...
22
Split Pin HUS-721618301
...
23
LINK HUS-544378601
...
24
RETAINING RING HUS-735311420
...
25
CONNECTION ROD HUS-544448801
...
26
SPACER HUS-734116441
...
27
Split Pin HUS-721618301
...
28
SCREW HUS-535423803
...
29
SHEET HUS-577999501
...
30
LOCKNUT M8 HUS-732211801
