Husqvarna R220T - 966785701 (2012-03) Riders

Model: R220T - 966785701 (2012-03)

Back To Assemblies

Save Part Not Listed?
product name

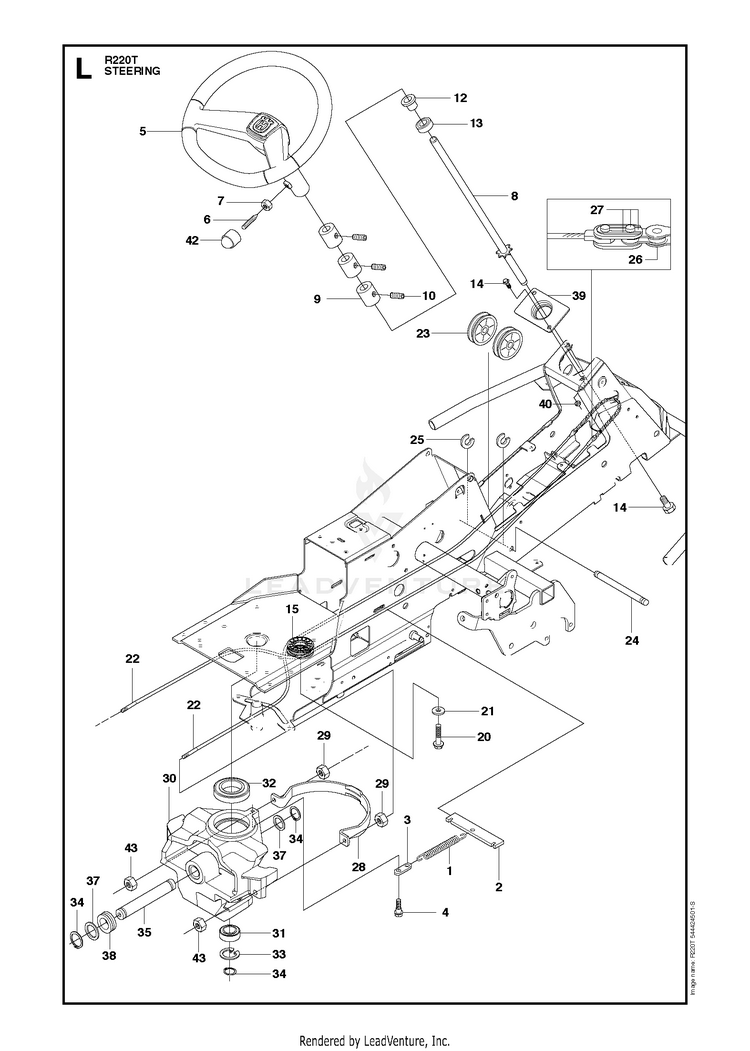

STEERING

...
...
1
SPRING HUS-506671901
...
2
Brackets HUS-590735401
...
3
CONNECTOR HUS-506670801
...
4
BOLT HUS-506597401
...
5
STEERING WHEEL HUS-577960401
...
6
SCREW HUS-728745505
...
7
NUT HUS-731231801
...
8
STEERING ROD HUS-575632201
...
9
DRIVER STEERING WHEEL HUS-587080901
...
10
Screw HUS-728844305
...
12
SPACER HUS-506887801
...
13
BALL BEARING 6004-2RS1 HUS-738210404
...
14
BOLT HUS-506570104
...
15
PULLEY HUS-576492501
...
20
COLLAR SCREW HUS-506675403
...
21
WASHER HUS-734117441
...
22
WIRE ASSY HUS-501604804
...
23
ROLLER HUS-506522401
...
24
SHAFT HUS-506539404
...
25
RETAINING RING HUS-735311420
...
26
STEERING CHAIN HUS-506554601
...
27
LINK HUS-506554701
...
28
WIRE GUIDE HUS-544427301
...
29
Nut HUS-731232001
...
30
SPINDLE HUS-577659301
...
31
Ball Bearing 6005-2rs HUS-738210504
...
32
BALL BEARING 6010 2RS1 HUS-738211004
...
33
CIRCLIP SGH 47 HUS-735314010
...
34
RETAINING RING SGA 25 HUS-735312600
...
35
SHAFT HUS-506985901
...
37
WASHER HUS-506773401
...
38
V-RING HUS-740681421
...
39
BRACKET HUS-578065201
...
40
NUT HUS-732212001
...
42
PROTECTIVE COVER HUS-544433201
...
43
NUT HUS-732212001
