Husqvarna R220T - 966785701 (2012-03) Riders

Model: R220T - 966785701 (2012-03)

Back To Assemblies

Save Part Not Listed?
product name

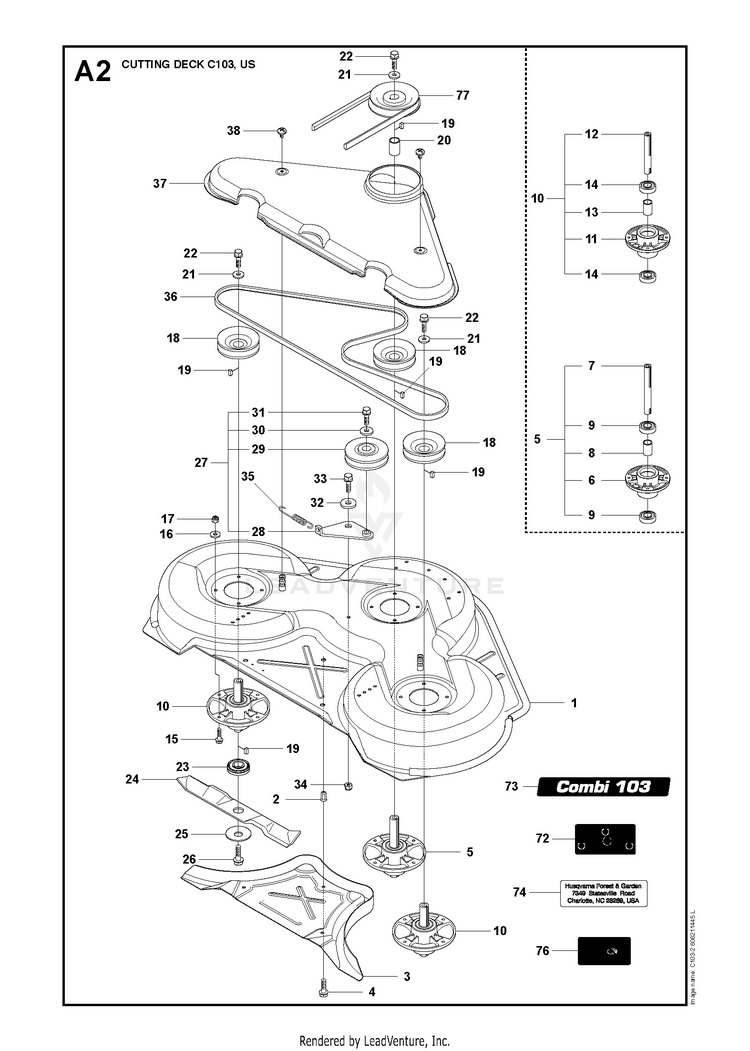

103CM CUTTING DECK

...
...
1
CUTTING DECK RIDER HUS-574210801
...
2
NUT HUS-506916201
...
3
PLUG HUS-544449201
...
4
BOLT HUS-506570104
...
5
BLADE HOUSING ASSY HUS-576384101
...
6
BEARING HOUSING HUS-576384201
...
7
SHAFT HUS-576384301
...
8
SPACING SLEEVE HUS-576384401
...
9
BEARING HUS-738230434
...
10
BLADE HOUSING ASSY HUS-576384102
...
11
BEARING HOUSING HUS-576384201
...
12
SHAFT HUS-576384302
...
13
SPACING SLEEVE HUS-576384401
...
14
BEARING HUS-738230434
...
15
BOLT HUS-535423801
...
16
WASHER BRB 8.4X17 HUS-734116401
...
17
LOCKNUT M8 HUS-732211801
...
18
PULLEY HUS-506922101
...
19
KEY HUS-506533501
...
20
SPACER HUS-544068002
...
21
WASHER HUS-734117441
...
22
SCREW HUS-544114101
...
23
ADAPTER HUS-535504202
...
24
BLADE HUS-504188210
...
25
WASHER HUS-588145601
...
26
SCREW HUS-544114101
...
27
BELT TENSIONER ASSY KIT HUS-586966601
...
28
BELT TENSIONER ASSY KIT HUS-586966601
...
29
PULLEY HUS-506532701
...
30
SPACER HUS-734116441
...
31
BOLT HUS-506558302
...
32
Washers HUS-584288604
...
33
SCREW HUS-725245171
...
34
LOCKNUT M8 HUS-732211801
...
35
SPRING HUS-506533101
...
36
BELT HUS-589530601
...
37
BELT COVER C103 HUSQ - GREY HUS-544096103
...
38
SCREW HUS-544400501
...
72
Decal HUS-506789701
...
73
DECAL HUS-544238103
...
74
DECAL HUS-506983901
...
76
DECAL HUS-574510001
...
77
PULLEY HUS-506778601
