Husqvarna R215 TX Riding Mower

Model: R215 TX

Back To Assemblies

Save Part Not Listed?
product name

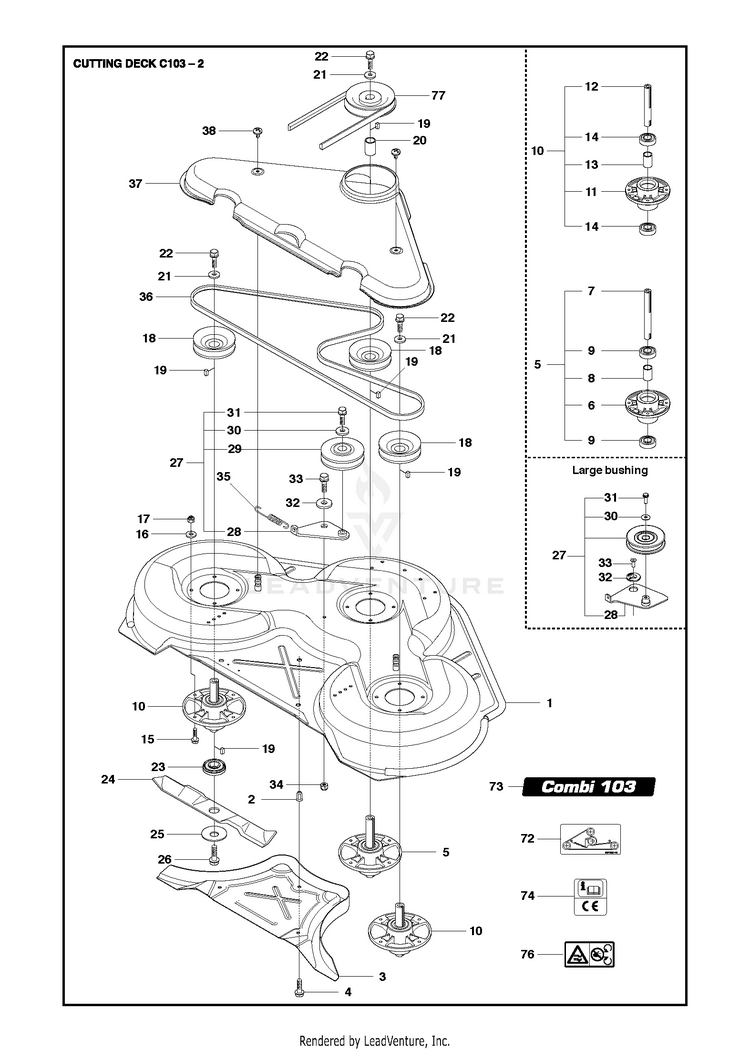

103CM CUTTING DECK 2

...
...
38
SCREW HUS-544400501
...
4
BOLT HUS-506570104
...
22
SCREW HUS-544114101
...
12
SHAFT HUS-576384302
...
10
BLADE HOUSING ASSY HUS-576384102
...
28
BELT TENSIONER ASSY KIT Small bushing HUS-586966601
...
73
DECAL HUS-544238103
...
36
BELT HUS-589530601
...
17
LOCKNUT M8 HUS-732211801
...
7
HUS-576384303
...
29
PULLEY For 967150801, 966757201 HUS-506532701
...
31
Large bushing HUS-586320401
...
15
BOLT HUS-535423801
...
37
BELT COVER C103 HUSQ - GREY For 967150801, 966757201 HUS-544096103
...
33
SCREW Large bushing HUS-725645301
...
29
NEEDS DESCRIPTION For 967291301 HUS-581864601
...
8
SPACING SLEEVE HUS-576384401
...
20
SPACING SLEEVE HUS-544068003
...
24
BLADE HUS-504188210
...
77
PULLEY HUS-506778601
...
2
NUT HUS-506916201
...
74
DECAL HUS-506929001
...
23
ADAPTER HUS-535504202
...
9
BEARING HUS-738230434
...
33
SCREW Small bushing HUS-725245171
...
30
SPACER HUS-734116441
...
35
SPRING HUS-506533101
...
13
SPACING SLEEVE HUS-576384401
...
11
BEARING HOUSING HUS-576384201
...
31
BOLT Small bushing HUS-506558302
...
72
Decal HUS-506789701
...
26
SCREW HUS-544114101
...
32
WASHER SHOULDER ASSY Large bushing HUS-586496701
...
34
LOCKNUT M8 HUS-732211801
...
21
WASHER HUS-734117441
...
27
BELT TENSIONER ASSY KIT Small bushing HUS-586966601
...
28
Large bushing HUS-585359901
...
14
BEARING HUS-738230434
...
3
PLUG HUS-544449201
...
25
WASHER HUS-588145601
...
18
PULLEY HUS-506922101
...
5
HUS-576384103
...
37
For 967291301 HUS-585070701
...
27
Belt Tensioners Large bushing HUS-586964001
...
76
DECAL HUS-574510001
...
16
WASHER BRB 8.4X17 HUS-734116401
...
32
Washers Small bushing HUS-584288604
...
19
KEY HUS-506533501
...
6
BEARING HOUSING HUS-576384201
...
1
HUS-504569805
