Husqvarna R214 TC - 970542301 (2022) Riding Mower

Model: R214 TC - 970542301 (2022)

Back To Assemblies

Save Part Not Listed?
product name

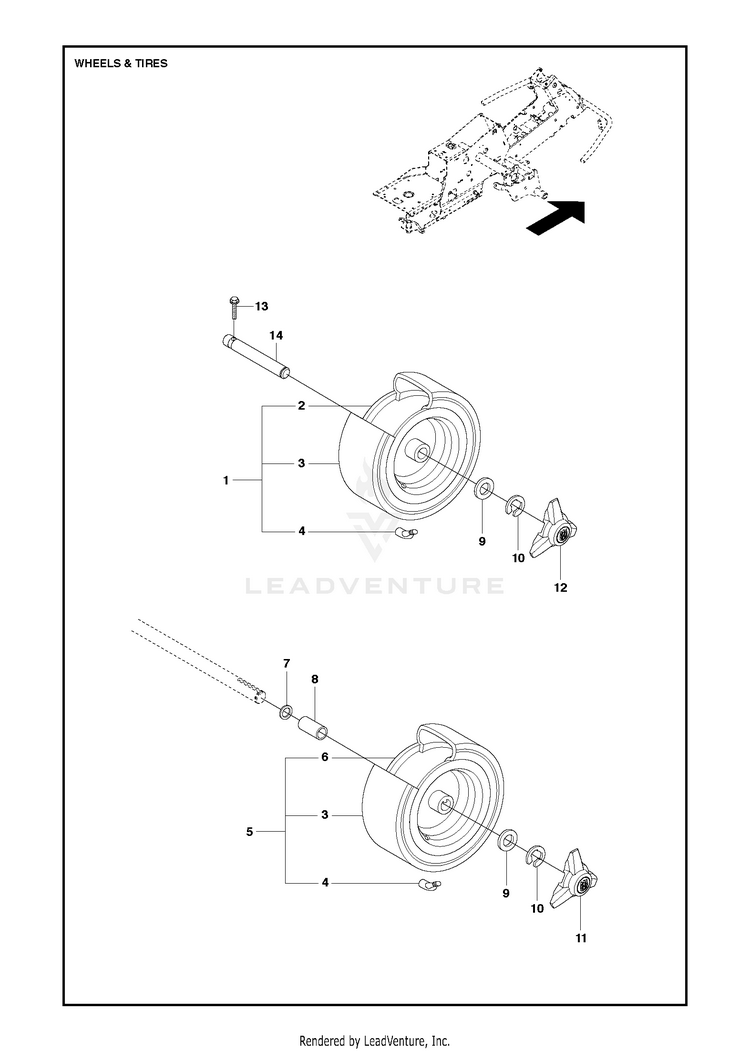

WHEELS & TIRES

...
...
13
BOLT FLANGE - M8X40\ HUS-725245961
...
12
HUB CAP HUS-544353502
...
14
NEEDS DESCRIPTION HUS-597465401
...
5
WHEEL For 970542301 HUS-523012602
...
1
NEEDS DESCRIPTION For 970569101 HUS-523012206
...
5
NEEDS DESCRIPTION For 970569101 HUS-523012606
...
2
RIM HUS-523034501
...
7
WASHER HUS-506504803
...
8
SPACE SLEEVE HUS-506596203
...
1
WHEEL For 970542301 HUS-523012202
...
10
RETAINING RING HUS-506899001
...
3
TIRE HUS-535460001
...
11
HUB CAP HUS-544353501
...
4
VALVE HUS-506574301
...
6
RIM HUS-523034801
...
9
WASHER HUS-506504805
