Husqvarna R214 TC - 970542301 (2022) Riding Mower

Model: R214 TC - 970542301 (2022)

Back To Assemblies

Save Part Not Listed?
product name

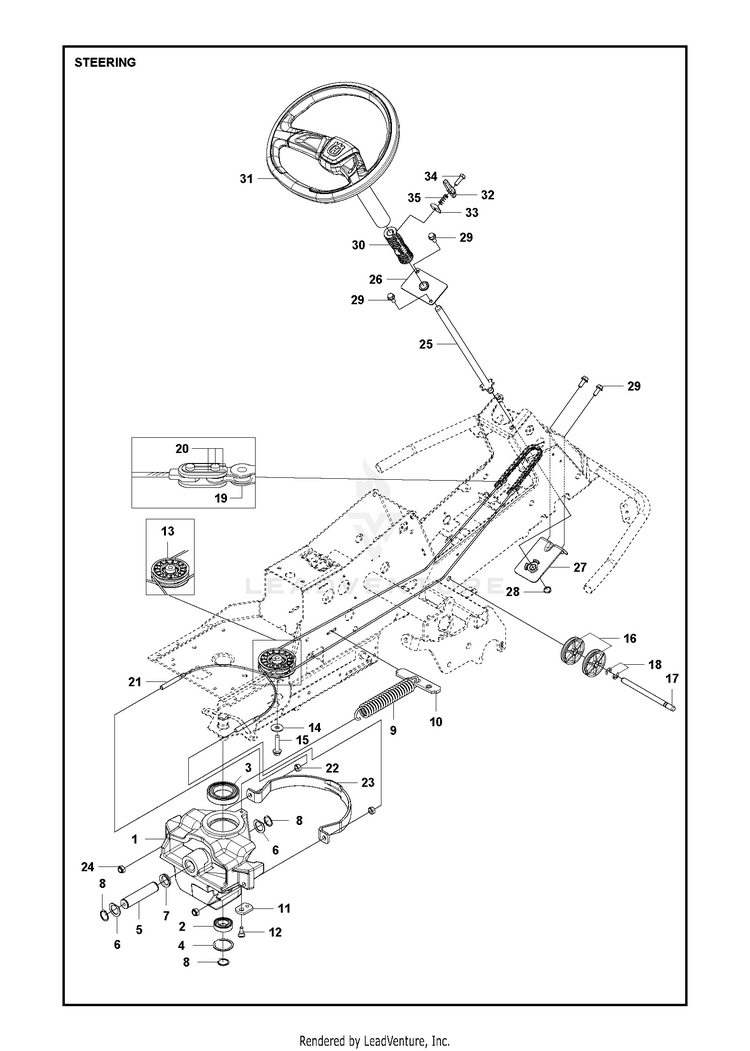

STEERING

...
...
7
V-RING HUS-740681421
...
1
SPINDLE HUS-577659301
...
19
STEERING CHAIN HUS-506554601
...
15
COLLAR SCREW HUS-506675403
...
27
BRACKET STEERING ROD ASSY HUS-583899701
...
21
WIRE ASSY HUS-501604804
...
20
LINK HUS-506554701
...
22
Nut HUS-731232001
...
31
NEEDS DESCRIPTION For 970542301 HUS-593166101
...
34
PIN HUS-593149401
...
12
BOLT HUS-506597401
...
8
RETAINING RING SGA 25 HUS-735312600
...
2
Ball Bearing 6005-2rs HUS-738210504
...
26
BRACKET STEERING ASSY WITH BUS HUS-584155601
...
24
NUT HUS-732212001
...
6
WASHER HUS-506773401
...
3
BALL BEARING 6010 2RS1 HUS-738211004
...
25
NEEDS DESCRIPTION HUS-593947201
...
17
SHAFT HUS-506539404
...
5
SHAFT HUS-506985901
...
10
Brackets HUS-590735401
...
31
NEEDS DESCRIPTION For 970569101 HUS-593166107
...
16
ROLLER HUS-506522401
...
35
SPRING STEERING ADJUSTMENT HUS-593868801
...
30
DRIVER STEERING WHEEL HUS-587080901
...
28
RETAINING RING SGA 15 HUS-735311700
...
32
HANDLE HUS-593149501
...
29
BOLT HUS-506570104
...
11
CONNECTOR HUS-506670801
...
23
WIRE GUIDE HUS-544427301
...
18
RETAINING RING HUS-735311420
...
9
SPRING HUS-506671901
...
13
PULLEY HUS-576492501
...
4
CIRCLIP SGH 47 HUS-735314010
...
33
FIXING PLATE HUS-593605201
...
14
WASHER HUS-734117441
