Husqvarna R214 Riding Mower

Model: R214

Back To Assemblies

Save Part Not Listed?
product name

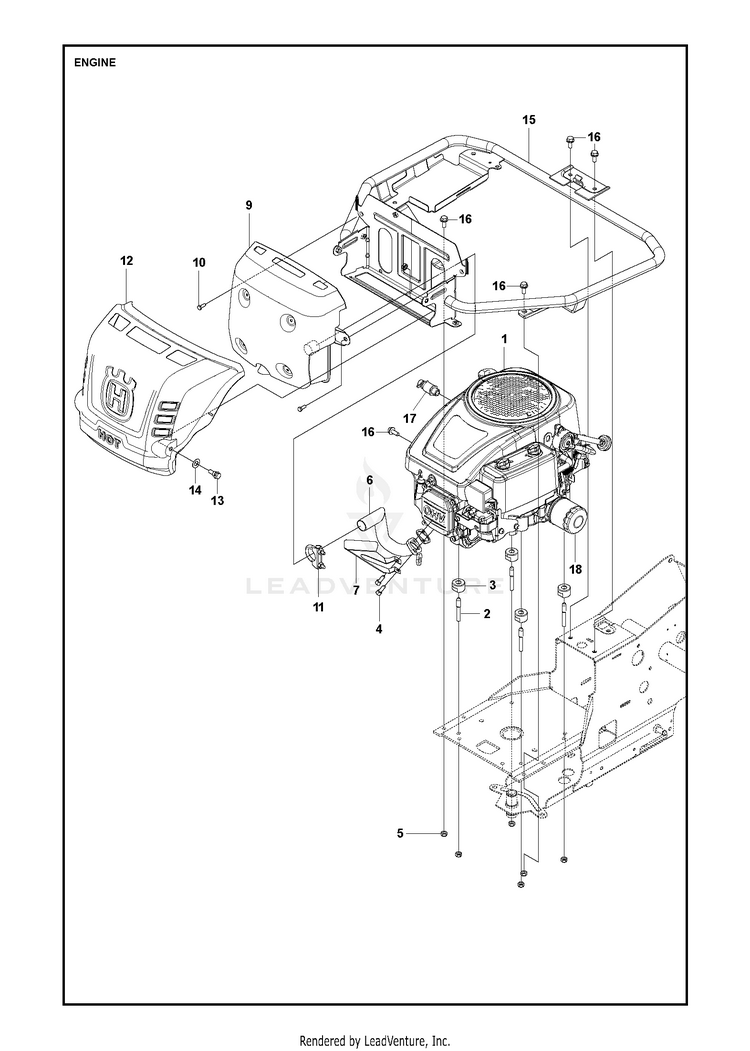

ENGINE

...
...
3
NEEDS DESCRIPTION HUS-529344601
...
11
CLAMP ASSY EXHAUST HUS-501152201
...
4
BOLT HUS-506556301
...
13
BOLT HUS-506597401
...
6
NEEDS DESCRIPTION HUS-529361601
...
14
SPRINGWASHER HUS-506839401
...
1
NEEDS DESCRIPTION HUS-531262101
...
15
NEEDS DESCRIPTION HUS-529905701
...
5
LOCKNUT M8 HUS-732211801
...
12
HEAT SHIELD HUS-577818502
...
10
SCREW HUS-725236461
...
18
FILTER OIL FILTER (ENG.452) HUS-591165901
...
16
BOLT HUS-506570104
...
2
NEEDS DESCRIPTION HUS-578207502
...
7
NEEDS DESCRIPTION HUS-533005401
...
17
VALUE.OIL.DRAIN HUS-532428287
...
9
MUFFLER HUS-577813601
Schematic Image Zoomed
