product name

Husqvarna R214 C Riding Mower

Model: R214 C

Back To Assemblies

Save Part Not Listed?
product name

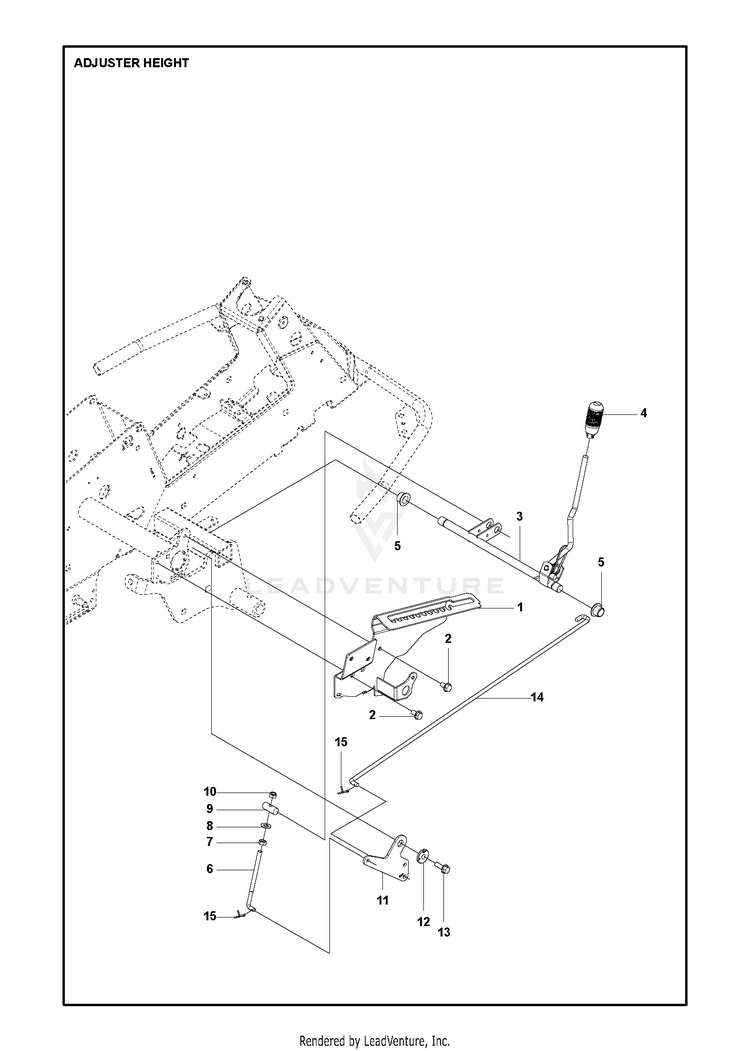

HEIGHT ADJUSTMENT

...
...
5
BEARING FLANGE HUS-584871302
...
14
CONNECTION ROD HUS-544227001
...
13
BOLT HUS-506597401
...
4
Handles HUS-588164101
...
10
LOCKNUT M8 HUS-732211801
...
7
NUT HUS-731231801
...
2
BOLT HUS-506570103
...
12
Washers HUS-584288604
...
3
HEIGHT ADJUSTER HUS-577999901
...
9
Pins HUS-506784601
...
6
LINKAGE HUS-506908201
...
1
NEEDS DESCRIPTION HUS-594701302
...
15
Split Pin HUS-721618301
...
11
LINK HUS-578040701
...
8
GSPH HUS-596134901
