Husqvarna R213 C Riding Mower

Model: R213 C

Back To Assemblies

Save Part Not Listed?
product name

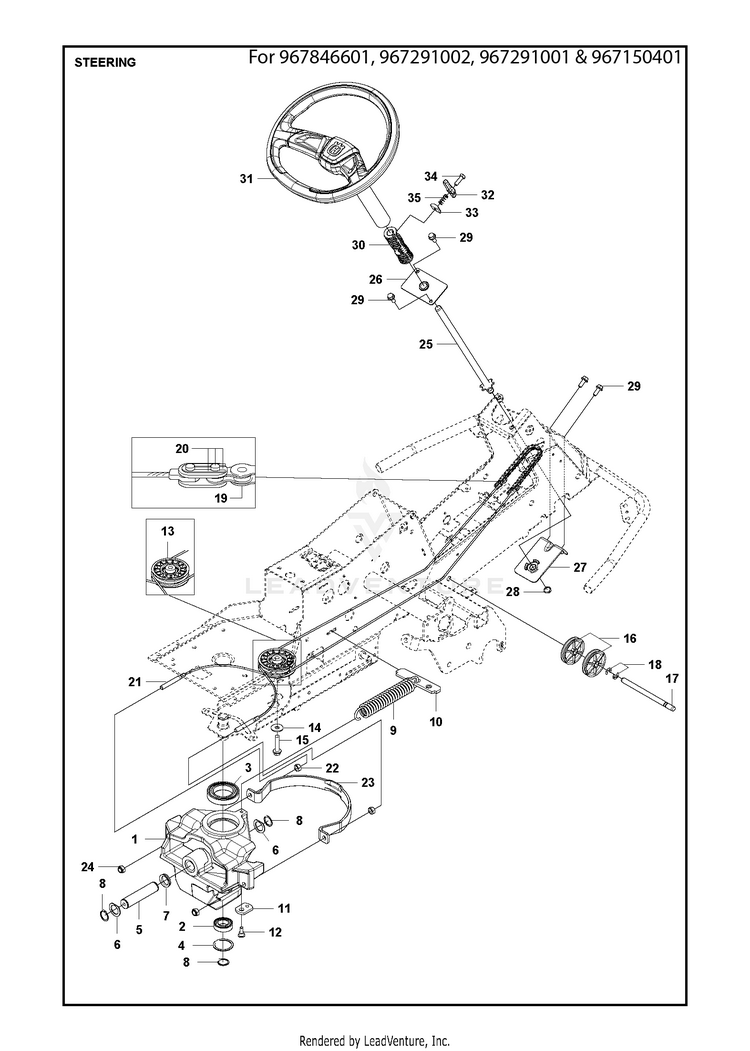

STEERING 2

...
...
27
BRACKET STEERING ROD ASSY HUS-583899701
...
26
BRACKET STEERING ASSY WITH BUS HUS-584155601
...
19
STEERING CHAIN HUS-506554601
...
15
COLLAR SCREW HUS-506675403
...
31
NEEDS DESCRIPTION HUS-593166104
...
20
LINK HUS-506554701
...
24
NUT HUS-732212001
...
9
SPRING HUS-506671901
...
34
PIN HUS-593149401
...
17
SHAFT HUS-506539404
...
2
Ball Bearing 6005-2rs HUS-738210504
...
4
CIRCLIP SGH 47 HUS-735314010
...
22
Nut HUS-731232001
...
8
RETAINING RING SGA 25 HUS-735312600
...
29
BOLT HUS-506570104
...
25
NEEDS DESCRIPTION HUS-593947201
...
23
WIRE GUIDE HUS-544427301
...
7
V-RING HUS-740681421
...
5
SHAFT HUS-506985901
...
32
HANDLE HUS-593149501
...
13
PULLEY HUS-576492501
...
30
DRIVER STEERING WHEEL HUS-587080901
...
1
SPINDLE HUS-577659301
...
10
Brackets HUS-590735401
...
12
BOLT HUS-506597401
...
21
WIRE ASSY HUS-501604804
...
18
RETAINING RING HUS-735311420
...
33
FIXING PLATE HUS-593605201
...
16
ROLLER HUS-506522401
...
11
CONNECTOR HUS-506670801
...
3
BALL BEARING 6010 2RS1 HUS-738211004
...
6
WASHER HUS-506773401
...
14
WASHER HUS-734117441
...
35
SPRING STEERING ADJUSTMENT HUS-593868801
...
28
RETAINING RING SGA 15 HUS-735311700
