Husqvarna R213 C Riding Mower

Model: R213 C

Back To Assemblies

Save Part Not Listed?
product name

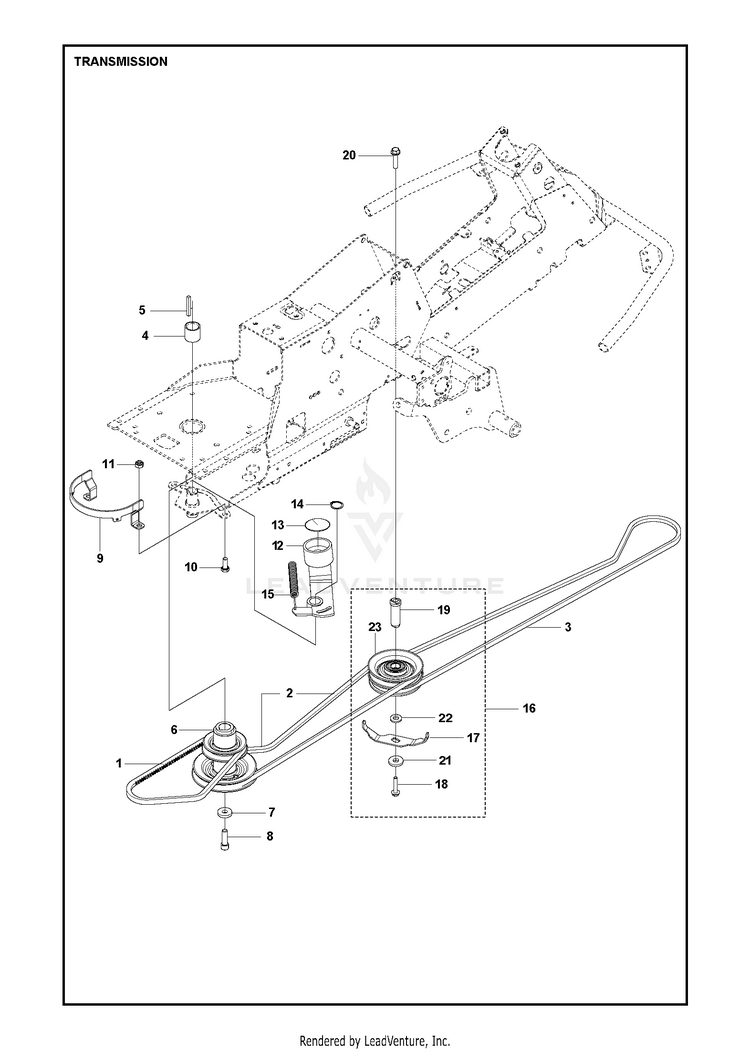

TRANSMISSION

...
...
22
WASHER For 967150401, 966756901 HUS-506775701
...
1
BELT HUS-589531201
...
15
SPRING HUS-506665601
...
18
BOLT For 967150401, 966756901 HUS-506597401
...
9
HUS-587425201
...
2

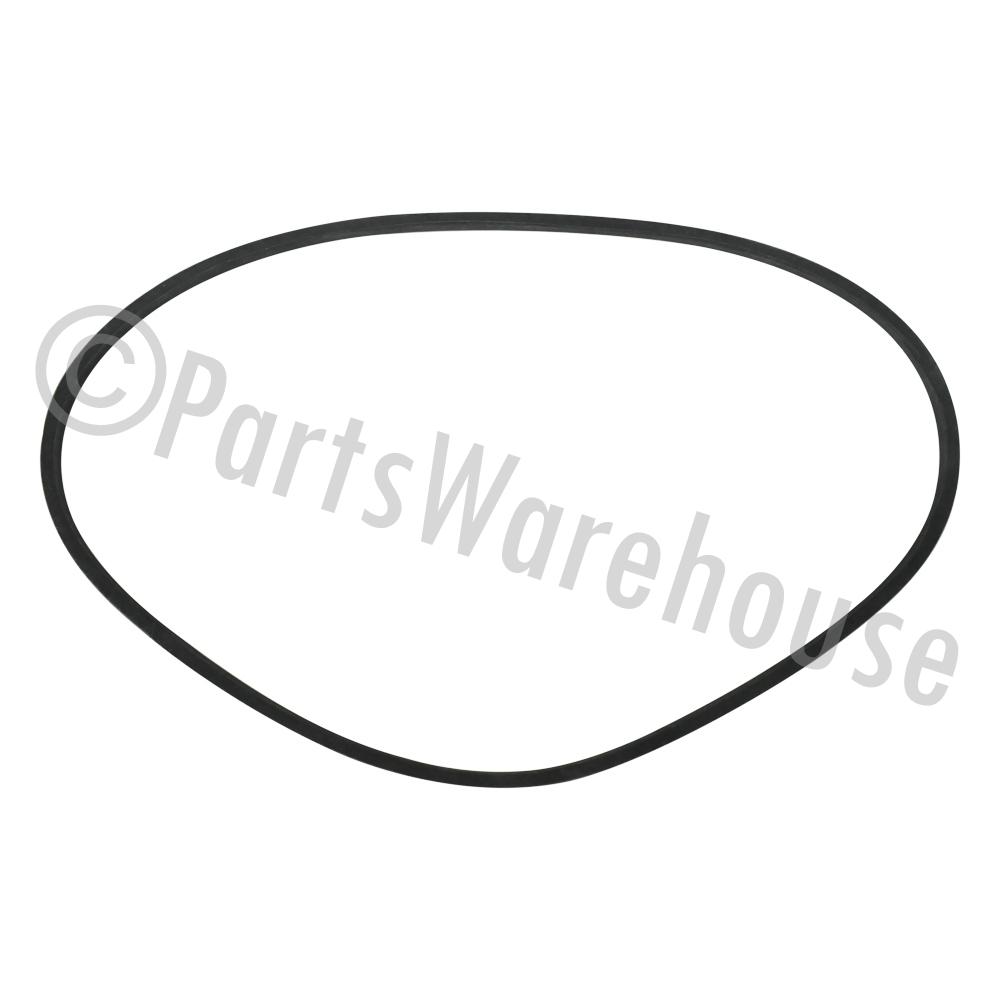

BELT KIT HUS-599675902
...
12
TENSIONER HUS-535484401
...
18
For 967846601 HUS-586320401
...
6
PULLEY HUS-535482401
...
8
SCREW HUS-506556002
...
14
RETAINING RING SGA 25 HUS-735312600
...
21
WASHER For 967150401, 966756901 HUS-506597501
...
3
Belts For 967846601 HUS-594977801
...
20
BOLT HUS-506675402
...
16
NEEDS DESCRIPTION HUS-581916301
...
4
SPACER HUS-506509201
...
17
BELT GUIDE HUS-544405301
...
10
Screw M10x25 HUS-725249371
...
5
KEY HUS-506555901
...
11
NUT HUS-732212001
...
7
WASHER HUS-506597501
...
3
Belts For 967291002, 967291001, 967150401, 966756901 HUS-594977801
...
19
SHAFT HUS-581916401
...
23
PULLEY HUS-535482201
...
13
Seals HUS-535485001
