Husqvarna R213 C Riding Mower

Model: R213 C

Back To Assemblies

Save Part Not Listed?
product name

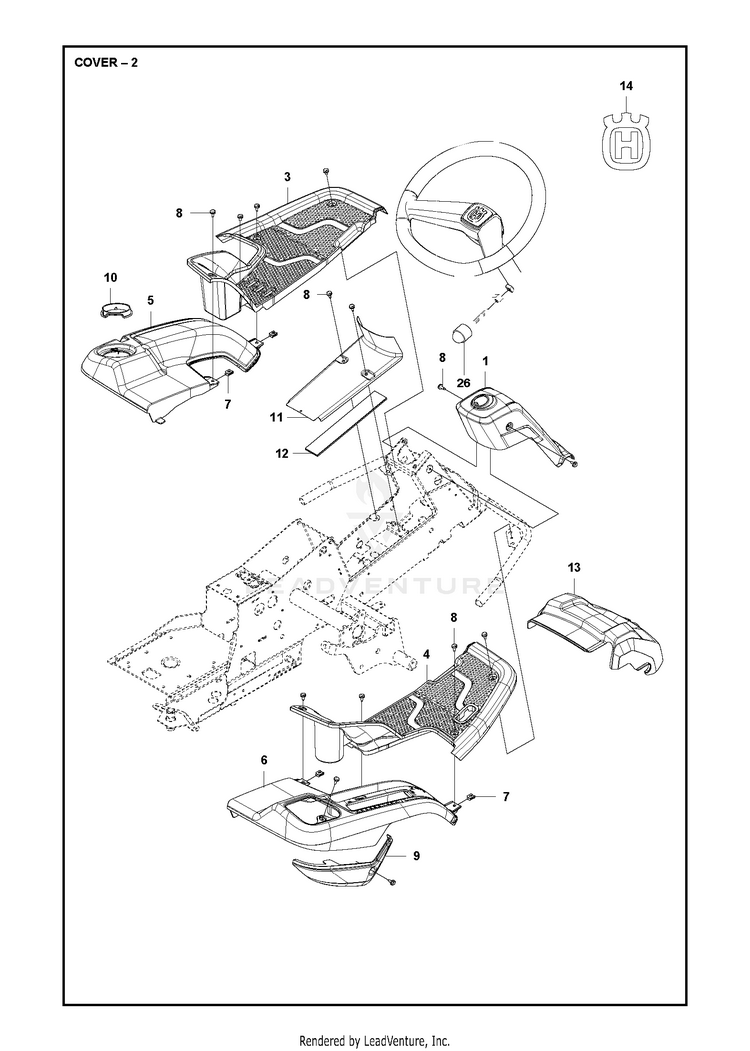

COVER 2

...
...
12
MAT COVER FRAME HUS-584260101
...
11
COVER HUS-544239201
...
10
LOCKING NUT HUS-577764501
...
8
SCREW HUS-544400501
...
5
FENDER HUS-577729501
...
26
PROTECTIVE COVER For 967291002 HUS-544433201
...
7
NUT HUS-535429101
...
13
HUS-578776301
...
1
COVER HUS-577615801
...
6
FENDER HUS-577729601
...
14
DECAL HUS-576973401
...
3
FOOT PLATE HUS-577729301
...
9
CONTROL COVER HUS-577737501
...
4
FOOT PLATE HUS-577729401
