product name

Husqvarna R213 C Riding Mower

Model: R213 C

Back To Assemblies

Save Part Not Listed?
product name

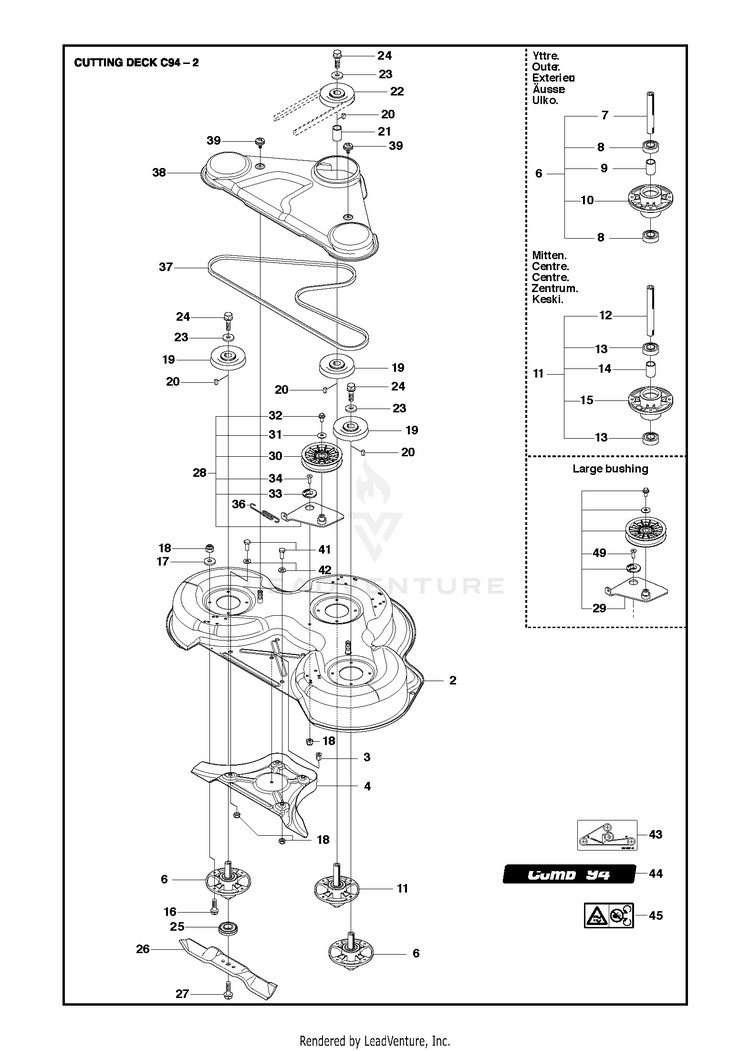

94CM CUTTING DECK 2

...
...
18
LOCKNUT M8 HUS-732211801
...
20
KEY HUS-506533501
...
19
PULLEY HUS-506922101
...
34
SCREW HUS-725645301
...
30
NEEDS DESCRIPTION HUS-581864601
...
12
HUS-576384303
...
27
BOLT HUS-506675402
...
10
BEARING HOUSING HUS-576384201
...
7
SHAFT HUS-576384302
...
31
SPACER HUS-734116441
...
9
SPACING SLEEVE HUS-576384401
...
4
PLUG C93 & C94 HUS-544065801
...
49
SCREW For 967291002, 967291001, 967150401, 966756901 HUS-725245171
...
25
BLADE BRACKET HUS-544064901
...
14
SPACING SLEEVE HUS-576384401
...
22
PULLEY HUS-506778601
...
8
BEARING HUS-738230434
...
39
SCREW HUS-544400501
...
38
HUS-522821903
...
42
WASHER BRB 8.4X17 HUS-734116401
...
33
WASHER SHOULDER ASSY HUS-586496701
...
21
SPACING SLEEVE HUS-544068003
...
24
BOLT HUS-506675402
...
37
BELT HUS-589530701
...
32
BOLT HUS-506558302
...
29
BRACKET For 967291002, 967291001, 967150401, 966756901 HUS-506797101
...
36
SPRING HUS-506533101
...
41
SCREW HUS-725245171
...
43
Decal HUS-506789701
...
13
BEARING HUS-738230434
...
16
BOLT HUS-535423801
...
26
BLADE HUS-579652510
...
3
NUT HUS-506916201
...
6
BLADE HOUSING ASSY HUS-576384102
...
15
BEARING HOUSING HUS-576384201
...
23
WASHER HUS-734117441
...
11
HUS-576384103
...
44
HUS-544238101
...
45
DECAL HUS-574510001
...
28
Belt Tensioners HUS-586964001
...
17
WASHER BRB 8.4X17 HUS-734116401
...
2
NEEDS DESCRIPTION HUS-581237407
