Husqvarna R213 C Riding Mower

Model: R213 C

Back To Assemblies

Save Part Not Listed?
product name

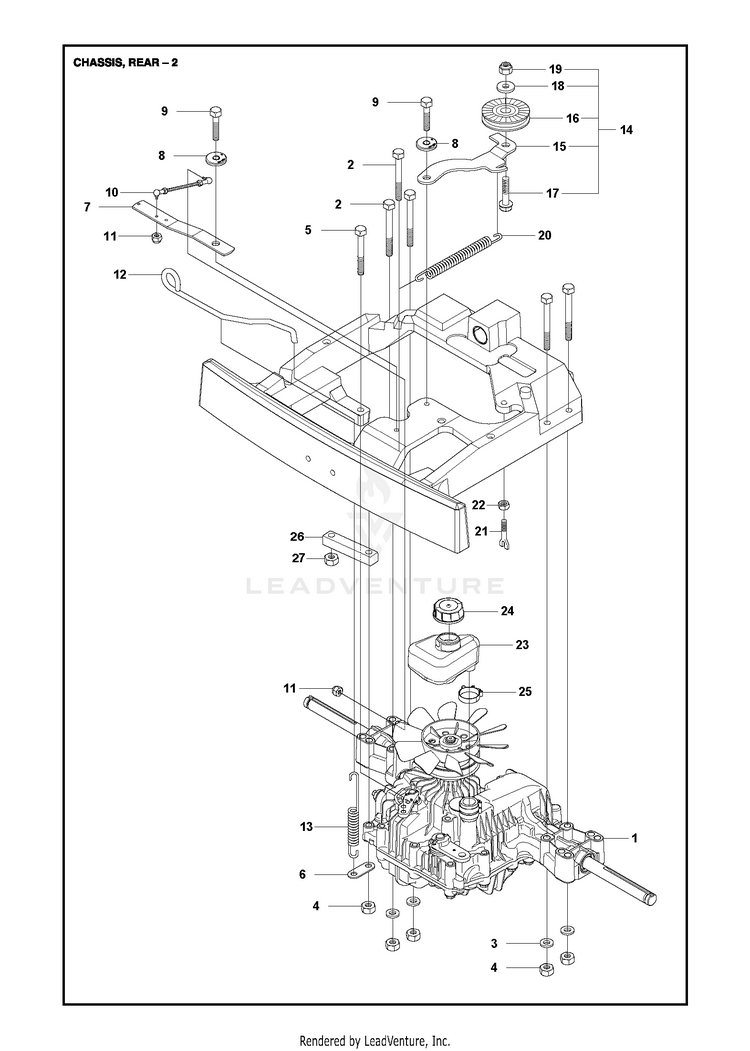

CHASSIS REAR

...
...
27
NUT For 967150401, 966756901 HUS-731231801
...
6
CONNECTOR HUS-506599301
...
23
TANK HUS-506989001
...
8
Washers For 967150401, 966756901 HUS-584288604
...
26
BRACKET For 967150401, 966756901 HUS-506987201
...
13
SPRING HUS-506834301
...
8
Washers For 967846601, 967291002, 967291001 HUS-584288604
...
24
TANK CAP ASSY For 967150401, 966756901 HUS-590324701
...
10
ROD HUS-506987501
...
11
LOCKNUT M5 HUS-732211401
...
3
WASHER BRB 8.4X17 HUS-734116401
...
9
SCREW For 967150401, 966756901 HUS-725245171
...
25
HOSE CLAMP 20-32 HUS-505131102
...
12
Rod HUS-506988201
...
17
SCREW For 967291002, 967291001, 967150401, 966756901 HUS-725245551
...
15
BELT TENSIONER ARM For 967150401, 966756901 HUS-588740401
...
19
LOCKNUT M8 HUS-732211801
...
7
NEEDS DESCRIPTION HUS-579596801
...
22
Nut HUS-731232001
...
4
NUT HUS-731231801
...
16
PULLEY HUS-506946901
...
20
Springs HUS-594924101
...
1
HYDROSTAT 7A646024070 HUS-506986301
...
2
Hex Bolt HUS-725246751
...
18
SPACER HUS-734116441
...
24
TANK CAP ASSY For 967846601, 967291002, 967291001 HUS-590324701
...
17
SCREW For 967846601, 967291002, 967291001 HUS-725245571
...
5
SCREW For 967846601, 967291002, 967291001 HUS-725246251
...
14
TENSIONER HUS-506988401
...
9
SCREW For 967846601, 967291002, 967291001 HUS-725245171
...
15
BELT TENSIONER ARM For 967846601, 967291002, 967291001 HUS-588740401
...
21
SCREW HUS-506988801
...
5
SCREW For 967150401, 966756901 HUS-725245951
