product name

Husqvarna R213 C Riding Mower

Model: R213 C

Back To Assemblies

Save Part Not Listed?
product name

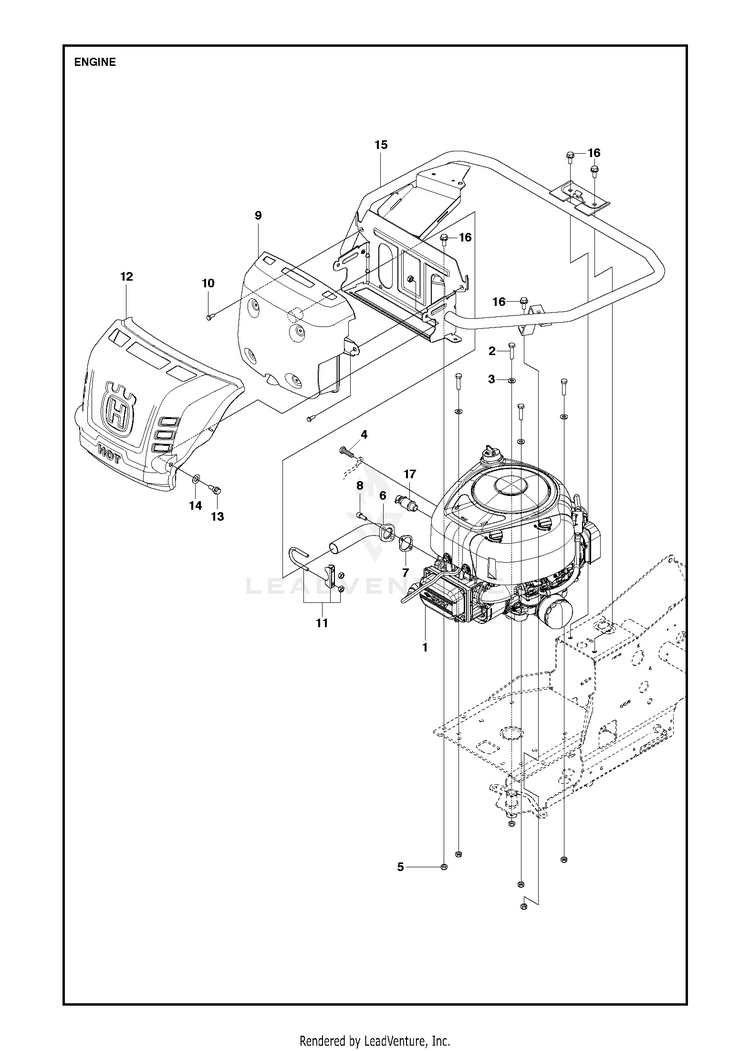

ENGINE

...
...
1
NEEDS DESCRIPTION HUS-591074601
...
3
WASHER BRB 8.4X17 HUS-734116401
...
4
HUS-506556302
...
15
HUS-577972601
...
7
FLANGE HUS-506914501
...
9
MUFFLER HUS-577813601
...
16
BOLT HUS-506570104
...
14
SPRINGWASHER HUS-506839401
...
17
VALUE.OIL.DRAIN HUS-532428287
...
13
BOLT HUS-506597401
...
5
LOCKNUT M8 HUS-732211801
...
8
BOLT HUS-506556301
...
12
HEAT SHIELD HUS-577818502
...
10
SCREW HUS-725236461
...
11
CLAMP ASSY EXHAUST HUS-501152201
...
6
HUS-578054803
...
2
SCREW HUS-725245751
Schematic Image Zoomed
