Husqvarna R153 - 953876511 (2004-01) Walk Behind Mower

Model: R153 - 953876511 (2004-01)

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
31
NEEDS DESCRIPTION HUS-531206525
...
26
HUS-531205581
...
49
HUS-531205848
...
24
HUS-531205840
...
106
NEEDS DESCRIPTION HUS-531206346
...
25
NEEDS DESCRIPTION M8 UNI 5587 HUS-531207982
...
10
NEEDS DESCRIPTION HUS-531210573
...
78
NEEDS DESCRIPTION HUS-531205536
...
88
NEEDS DESCRIPTION HUS-531205774
...
55
NEEDS DESCRIPTION M10 HUS-531207978
...
101
HUS-531211476
...
54
NEEDS DESCRIPTION DIA. 210/26 HUS-531210761
...
4
TCTC 2F DIA. 5X16 HUS-531208844
...
89
NEEDS DESCRIPTION HUS-531205787
...
42
Screws TEFR 5X10 TRILOBATA HUS-531207856
...
69
NEEDS DESCRIPTION HUS-531207700
...
51
NEEDS DESCRIPTION HUS-531205042
...
72
NEEDS DESCRIPTION HUS-531205786
...
16
NEEDS DESCRIPTION HUS-531205139
...
83
NEEDS DESCRIPTION TE M10X25 HUS-531207176
...
86
NEEDS DESCRIPTION TE 5X16 HUS-531207838
...
19
M5 HUS-531208492
...
93
NEEDS DESCRIPTION HUS-531206295
...
70
NEEDS DESCRIPTION HUS-531205216
...
64
DIA. 12/28/8 HUS-531208778
...
30
NEEDS DESCRIPTION HUS-531206531
...
90
NEEDS DESCRIPTION THROTTLE WIRE HUS-531206545
...
52
NEEDS DESCRIPTION DIN 137B 13X0,8 HUS-531206644
...
13
NEEDS DESCRIPTION TCTC 3,9 X 16 HUS-531206677
...
35
NEEDS DESCRIPTION HUS-531212046
...
18
NEEDS DESCRIPTION 5/15/1,5 HUS-531206666
...
109
SPRING HUS-531205831
...
34
NEEDS DESCRIPTION HUS-531212047
...
66
Supports HUS-531206652
...
1
NEEDS DESCRIPTION HUS-531212054
...
29
NEEDS DESCRIPTION HUS-531212444
...
8
DIA. 6,5 HUS-531204961
...
40
NEEDS DESCRIPTION 4X6,5 UNI6606 WODRUF HUS-531204907
...
39
NEEDS DESCRIPTION TEM8X90 UNI 5737 CENTURA 55LX HUS-531205768
...
61
NEEDS DESCRIPTION DIA. 12,4/17/0,3 HUS-531208859
...
58
Pins 1,8X33 HUS-531206653
...
44
NEEDS DESCRIPTION HUS-531206516
...
105
NEEDS DESCRIPTION HUS-531212393
...
81
NEEDS DESCRIPTION HUS-531206302
...
32
HUS-531210824
...
9
M6-H8 UNI 7473-ZB HUS-531208491
...
23
NEEDS DESCRIPTION DIA. 8,5 HUS-531208583
...
2
NEEDS DESCRIPTION HUS-531206544
...
50
NEEDS DESCRIPTION HUS-531210580
...
63
NEEDS DESCRIPTION DIA. 12/34/0,7 HUS-531207847
...
43
NEEDS DESCRIPTION HUS-531205772
...
59
NEEDS DESCRIPTION DIA. 8 HUS-531204906
...
53
NEEDS DESCRIPTION HUS-531205214
...
37
NEEDS DESCRIPTION DIA. 8E DIN 6798 HUS-531207981
...
97
NEEDS DESCRIPTION HUS-531206299
...
95
NEEDS DESCRIPTION TE 6X60 HUS-531208610
...
94
NEEDS DESCRIPTION BBC WIRE HUS-531206543
...
5
NEEDS DESCRIPTION HUS-531210606
...
82
WASHERS HUS-531208974
...
99
NEEDS DESCRIPTION HUS-531212478
...
22
TTSQ M8 HUS-531211480
...
84
NEEDS DESCRIPTION HUS-531208380
...
85
NEEDS DESCRIPTION HUS-531208383
...
28
HUS-531211581
...
103
HUS-531208492
...
17
NEEDS DESCRIPTION TE M5X25 HUS-531207836
...
91
NEEDS DESCRIPTION HUS-531206300
...
7
M6 HUS-531207165
...
62
NEEDS DESCRIPTION DX HUS-531205859
...
108
NEEDS DESCRIPTION HUS-531210618
...
100
HUS-531211474
...
73
NEEDS DESCRIPTION Z30-3/4 (10X785) 3L320 HUS-531206701
...
60
Washers DIA. 12E DIN 471 HUS-531208772
...
11
NEEDS DESCRIPTION DRIVE CABLE HUS-531211753
...
65
NEEDS DESCRIPTION SX HUS-531205860
...
46
NEEDS DESCRIPTION HUS-531206520
...
6
HUS-531205169
...
77
NEEDS DESCRIPTION HUS-531210777
...
12
HUS-531208043
...
76
NEEDS DESCRIPTION + REAR HOUSING 5312123-58 HUS-531210579
...
87
HUS-531210725
...
75
NEEDS DESCRIPTION HUS-531205776
...
67
NEEDS DESCRIPTION HUS-531205734
...
102
NEEDS DESCRIPTION HUS-531212364
...
96
NEEDS DESCRIPTION DIA. 6X14 HUS-531206306
...
27
HUS-531211473
...
56
HUS-531207986
...
98
NEEDS DESCRIPTION HUS-531208425
...
107
NEEDS DESCRIPTION HUS-531211591
...
104
HUS-531210817
...
68
NEEDS DESCRIPTION HUS-531207697
...
3
NEEDS DESCRIPTION HUS-531212676
...
79
NEEDS DESCRIPTION HUS-531205797
...
80
NEEDS DESCRIPTION HUS-531205796
...
47
NEEDS DESCRIPTION HUS-531210772
...
48
NEEDS DESCRIPTION HUS-531205715
...
92
NEEDS DESCRIPTION HUS-531206294
...
36
NEEDS DESCRIPTION TTSQ M8X16 HUS-531205741

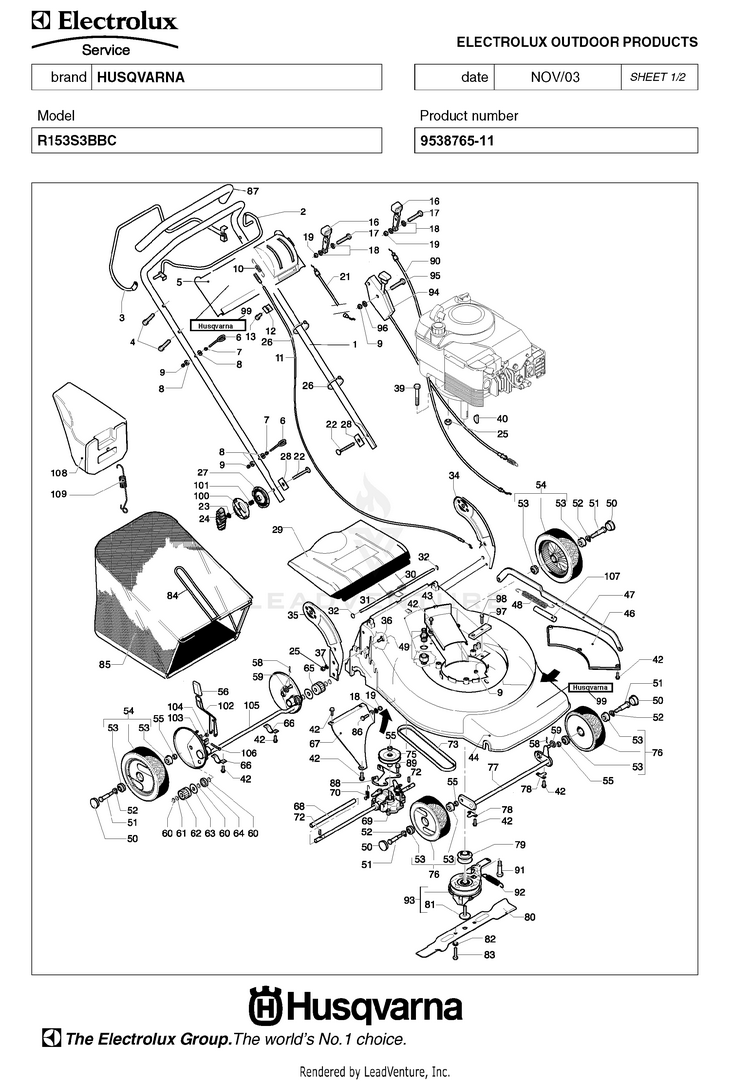

Schematic Image Zoomed
