Husqvarna R152 SVH - 96141013305 (2010-02) Walk Behind Mower

Model: R152 SVH - 96141013305 (2010-02)

Back To Assemblies

Save Part Not Listed?
product name

FRAME

...
...
49
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
55
STUD.SHOULDER.T45.BZP HUS-532194192
...
27
DECAL.CUTFINGER.CE.02 HUS-581579101
...
28
NEEDS DESCRIPTION HUS-532433368
...
53
Grassbag Assembly, Complete HUS-532401896
...
42
HANDLE.LOWER.GREY HUS-532187096
...
15
BOLT 3/8-16X1-1/8 HUS-532150406
...
45
HANDLE.ASM.UPPER.W/GRIP HUS-532186296
...
38
BRACKET.ADJ.LOWER.HDL.RT.GREY HUS-532190621
...
7
DOOR.GRASSBAG.H-GRAY HUS-532188498
...
21
SHIELD.DEBRIS.21.HV.RWGD.BLACK HUS-532188510
...
11
TUBE.SKIRT.HV.RWGD.BLACK HUS-532188359
...
34
BRKT.ADJ.LOWER.HDL.LH HUS-532187063
...
6
E-RING HUS-812000014
...
4
Grassbag HUS-532401898
...
39
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
3
ROD.REAR.HANDLE.YELLOW HUS-532183483
...
19
BOLT.HD.HEAD.3/8-24X2.50 (2 2) HUS-532191760
...
1
HANDLE.GRASSBAG.REAR.H-GRAY HUS-532190582
...
13
COVER.FRONT.21.HV.H-GRAY HUS-532414958
...
54
HUS-532433359
...
9
BOLT T HUS-872140405
...
18
Washers HUS-596238701
...
10
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
43
BAIL.CONTROL.MZR.BS.ORANGE HUS-532426812
...
44
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
2
COTTER PIN (3 2)(2 2MC) HUS-532065322
...
14
SCREW, HEX WASHER HEAD HUS-532199422
...
5
FRAME, GRASSBAG HUS-532188506
...
40
WIRE TIE HUS-532007192
...
16
Blade, 21" HUS-532415076
...
51
HUS-532433366
...
47
SCREW HUS-532750634
...
20
ADAPTER.BLADE HUS-532186766
...
48
BRACKET.UPSTOP.RT HUS-532430034
...
50
GUIDE.ROPE.WALK.MOWER HUS-532188501
...
8
ROD, PIVOT HUS-532183479
...
22
SCREW 1/4X20 HUS-817600406
...
35
KNOB.HANDLE.PLASTIC.STAR.BLACK HUS-532182398
...
56
E-RING 7/16 RE HUS-812000058
...
37
HUS-532433420
...
86
HUS-532432234
...
17
WASHER,HARDEN HUS-532851074
...
46
CABLE.MZR.50.SNAP-IN HUS-532427497
...
36
SCREW.5/16X.680.TRIM.H HUS-532194187

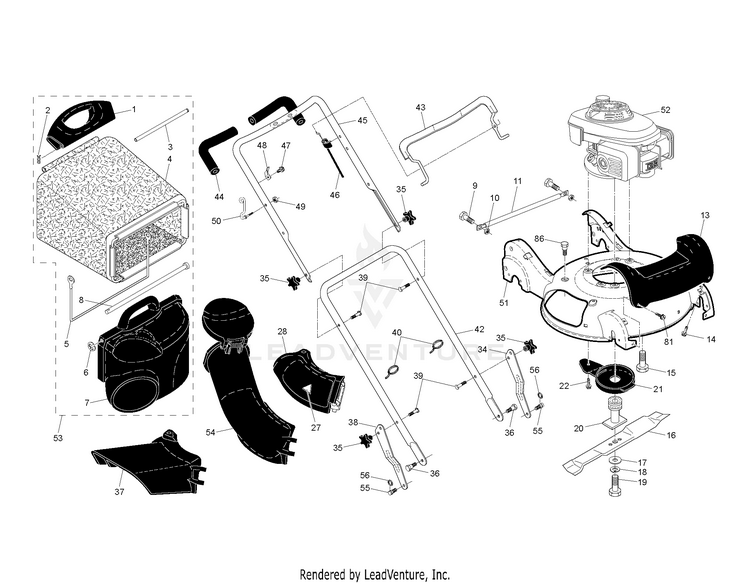

Schematic Image Zoomed
