Husqvarna R152 SV (96141013410. 2013-12) Walk Behind Mower

Model: R152 SV (96141013410. 2013-12)

Save Part Not Listed?
product name

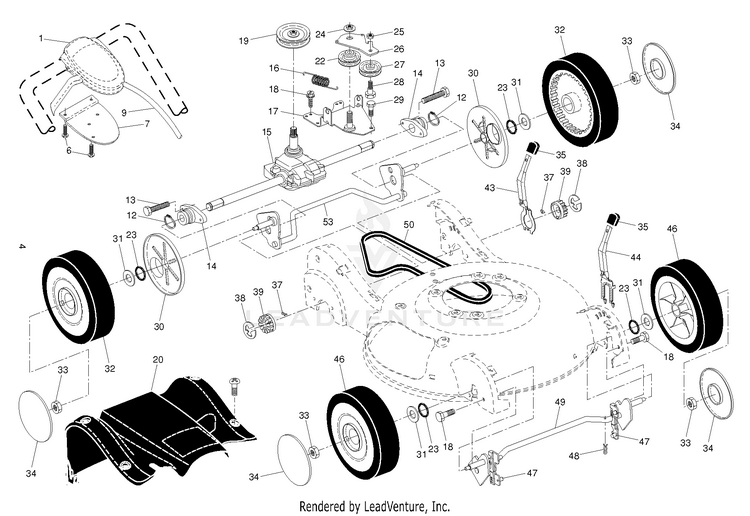

DRIVE

...
...
30
DUST COVER, WHEEL HUS-532183457
...
7
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
25
NUT.CENTERLOCK.5/16- HUS-873930500
...
39
PINION.14.TEETH.FGD HUS-532403849
...
19
RP PULLEY.DRIVE.EZ/VAR.SCREWON HUS-532443262
...
37
PAWL, DRIVE HUS-532404845
...
34
HUBCAP.WHEEL.5.SPOKE.SILVER HUS-532183442
...
44
SPRING.SELECTOR.FRONT HUS-532188509
...
20
COVER.DR.ASM.408006X418.CE Includes Mounting Screw & Pushnut HUS-532432677
...
6
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
35
KNOB.SELECTOR.SPRING.BLACK(3 2 HUS-532425242
...
22
PULLEY.IDLER.V-BELT HUS-532193791
...
23
O-RING..070X.487.NEOPRENE HUS-532197480
...
13
SCREW.1/4-20X21/4.HEX. HUS-532194186
...
14
BEARING / AXLE SUPPORT HUS-532408027
...
38
E-RING 7/16 RE HUS-812000058
...
43
LEVER, SELECTOR, HEIGHT, REAR HUS-532188508
...
26
ARM.IDLER.BZP HUS-532416736
...
49
SHAFT.ASM.FRONT.TORQUE HUS-532192431
...
29
SCREW 14-20 X 5/8 HUS-817060410
...
46
WHEEL.9X2.25.LP.TIGER.BLK HUS-532192232
...
28
SHOULDER BOLT HUS-532160829
...
24
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
18
SCREW HUS-532163409
...
31
WASHER.FLAT.1/2 HUS-532088348
...
47
BUSHING.FRONT.TORQUE.SHAFT HUS-532183438
...
27
IDLER PULLEY HUS-532166043
...
1
Drive Control Assembly, Complete HUS-532425665
...
48
SPRING RETAINER HUS-532169675
...
12
RING.RETAINING. HUS-583607301
...
17
BRACKET, GEAR CASE / DRIVE HUS-532408005
...
15
TRANSMISSION.21.HV.RWGD.AW/EZ HUS-532419211
...
9
ASM.CABLE. HUS-532197011
...
50
BELT, DRIVE HUS-532408031
...
32
WHEEL.9X2.25.LP.TIGER.BLACK HUS-532192622
...
53
SHAFT.ASM.REAR.TORQUE.HV.BZP HUS-532416740
...
16
SPRING HUS-532406558

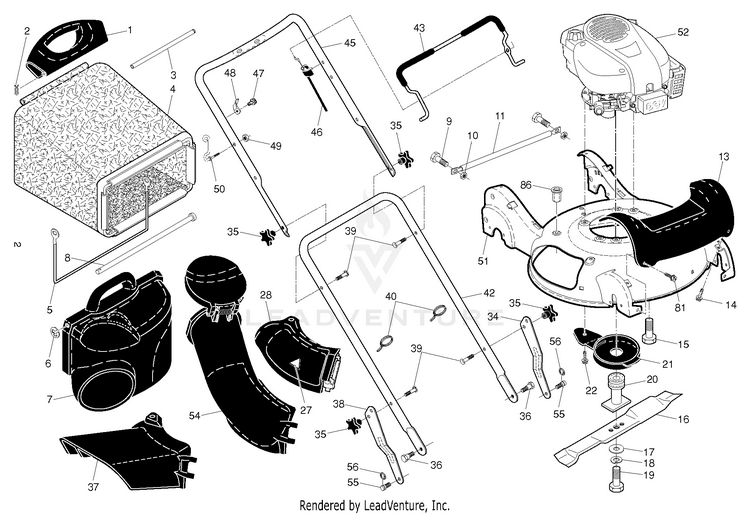

FRAME & ENGINE

...
...
37
HUS-532433420
...
27
DECAL.CUTFINGER.CE.02 HUS-581579101
...
47
SCREW HUS-532178848
...
54
HUS-532433359
...
22
SCREW 1/4X20 HUS-817600406
...
11
TUBE.SKIRT.HV.RWGD.BLACK HUS-532188359
...
34
BRKT.ADJ.LOWER.HDL.LH HUS-532187063
...
49
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
13
COVER.FRONT.21.HV.H-GRAY HUS-532414958
...
8
ROD, PIVOT HUS-532183479
...
43
BAIL.OVER.MOLD.ERGO.MZR.ORANGE HUS-580849102
...
86
HUS-532432234
...
52
B&S 100602-2980-H8 FOR SERVICE & PARTS 1-800-233-3723 HUS-000000000
...
5
FRAME, GRASSBAG HUS-532188506
...
19
BOLT.HD.HEAD.3/8-24X2.50 (2 2) HUS-532191760
...
50
GUIDE.ROPE.WALK.MOWER HUS-532188501
...
7
DOOR.GRASSBAG.H-GRAY HUS-532188498
...
xx
DECAL.INTERN.4.SYMBOL.CURVED NOT SHOWN HUS-532182191
...
2
COTTER PIN (3 2)(2 2MC) HUS-532065322
...
39
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
36
SCREW.5/16X.680.TRIM.H HUS-532194187
...
45
HANDLE.UPPER.3.POS.BS.AW2.GREY HUS-580638706
...
21
SHIELD.DEBRIS.21.HV.RWGD.BLACK HUS-532188510
...
46
CABLE.MZR.50.SNAP-IN HUS-532427497
...
3
ROD.REAR.HANDLE.YELLOW HUS-532183483
...
35
KNOB.HANDLE.PLASTIC.STAR.BLACK HUS-532182398
...
15
BOLT 3/8-16X1-1/8 HUS-532150406
...
18
Washers HUS-596238701
...
4
Grassbag HUS-532401898
...
20
ADAPTER.BLADE HUS-532186766
...
81
SCREW.HWH.13-16-5.8.BZP HUS-532194189
...
6
E-RING HUS-812000014
...
10
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
28
HUS-532433369
...
56
E-RING 7/16 RE HUS-812000058
...
42
HANDLE.LOWER.GREY HUS-532187096
...
51
HUS-532433366
...
17
WASHER,HARDEN HUS-532851074
...
55
STUD.SHOULDER.T45.BZP HUS-532194192
...
48
BRACKET.UPSTOP.RT HUS-532430034
...
14
SCREW, HEX WASHER HEAD HUS-532199422
...
16
Blade, 21" HUS-532415076
...
38
BRACKET.ADJ.LOWER.HDL.RT.GREY HUS-532190621
...
xx
DECAL.INTRN.SELF-PROPELLED NOT SHOWN HUS-583119801
...
1
HANDLE.GRASSBAG.REAR.H-GRAY HUS-532190582
...
40
WIRE TIE HUS-532007192
...
9
BOLT T HUS-872140405
