Husqvarna R152 - 96141006409 (2012-01) Walk Behind Mower

Model: R152 - 96141006409 (2012-01)

Save Part Not Listed?
product name

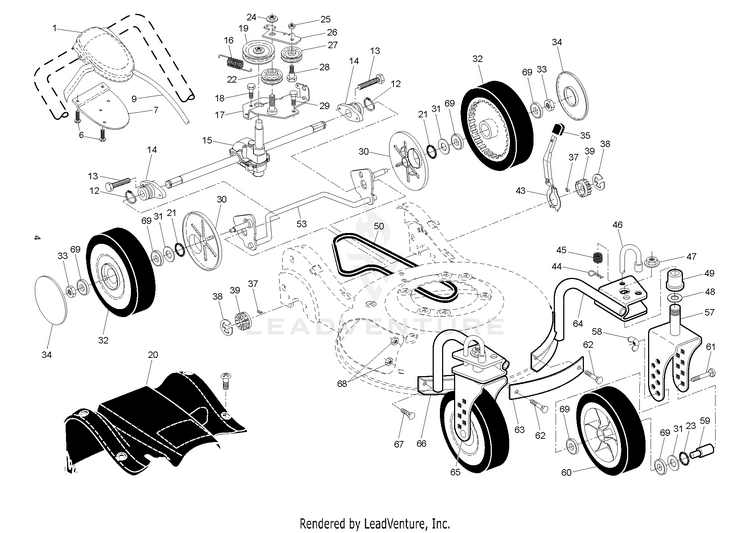

DRIVE

...
...
38
E-RING 7/16 RE HUS-812000058
...
1
Drive Control Assembly, Complete HUS-532425665
...
69
BEARING.8".WHEEL HUS-532751068
...
46
ROD, LOCK HUS-532185054
...
60
WHEEL.9X2.25.LP.TIGER.SILVER HUS-532192234
...
39
PINION.14.TEETH.FGD HUS-532403849
...
59
SPACER HUS-532185111
...
45
SPRING HUS-532185051
...
31
WASHER.FLAT.1/2 HUS-532088348
...
63
STRAP.FRONT.CASTER.ORANGE HUS-532188475
...
32
WHEEL.9X2.25.LP.TIGER.BLACK HUS-532192622
...
58
NUT.WING.5/16-18.YELLOW HUS-532187248
...
21
O-RING..070X.487.NEOPRENE HUS-532197480
...
26
ARM.IDLER.BZP HUS-532416736
...
53
SHAFT.ASM.REAR.TORQUE.HV.BZP HUS-532416740
...
50
BELT, DRIVE HUS-532408031
...
66
SUPPORT.TUBE.ASM.RT HUS-532414069
...
15
TRANSMISSION.21.HV.RWGD.AW/EZ HUS-532419211
...
16
SPRING HUS-532406558
...
17
BRACKET, GEAR CASE / DRIVE HUS-532408005
...
49
BUSHING. HUS-532195996
...
27
IDLER PULLEY HUS-532166043
...
8
ASM.CABLE. HUS-532197011
...
61
CARRIAGE BOLT HUS-872270528
...
65
BRACKET.WHEEL.ASM.RIGHT.ORANGE HUS-532417064
...
14
BEARING / AXLE SUPPORT HUS-532408027
...
23
O-RING..070X.487.NEOPRENE HUS-532197480
...
13
SCREW.1/4-20X21/4.HEX. HUS-532194186
...
19
RP PULLEY.DRIVE.EZ/VAR.SCREWON HUS-532443262
...
6
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
43
LEVER, SELECTOR, HEIGHT, REAR HUS-532188508
...
12
RING.RETAINING. HUS-583607301
...
64
SUPPORT.TUBE.ASM.LT HUS-532414070
...
67
BOLT HUS-532187555
...
62
BOLT HUS-532187474
...
37
PAWL, DRIVE HUS-532404845
...
47
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
22
PULLEY.IDLER.V-BELT HUS-532193791
...
48
WASHER.FLAT.1/2 HUS-532188906
...
44
SPRING RETAINER HUS-532169675
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
24
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
34
HUBCAP.WHEEL.5.SPOKE.SILVER HUS-532183442
...
57
BRACKET.WHEEL.ASM.LT.CASTER.OR HUS-532417063
...
7
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
30
DUST COVER, WHEEL HUS-532183457
...
35
KNOB.SELECTOR.SPRING.BLACK(3 2 HUS-532425242
...
68
Nuts HUS-596583702
...
25
NUT.CENTERLOCK.5/16- HUS-873930500
...
29
SCREW 14-20 X 5/8 HUS-817060410
...
18
SCREW HUS-532163409
...
28
SHOULDER BOLT HUS-532160829
...
20
RP.COVER.DRIVE.REAR.21.HV.GRAY Includes Mounting Screw & Pushnut HUS-532188356

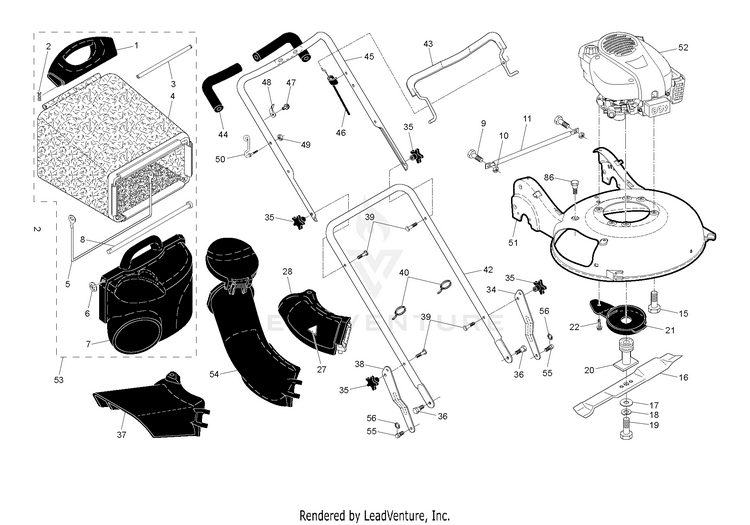

HANDLE & ENGINE

...
...
28
HUS-532433369
...
38
BRACKET.ADJ.LOWER.HDL.RT.GREY HUS-532190621
...
3
ROD.REAR.HANDLE.YELLOW HUS-532183483
...
39
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
9
BOLT T HUS-872140405
...
19
BOLT.HD.HEAD.3/8-24X2.50 (2 2) HUS-532191760
...
46
CABLE.MZR.SNAP-IN HUS-583314001
...
53
Grassbag Assembly, Complete HUS-532401896
...
6
E-RING HUS-812000014
...
49
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
10
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
55
STUD.SHOULDER.T45.BZP HUS-532194192
...
40
WIRE TIE HUS-532007192
...
56
E-RING 7/16 RE HUS-812000058
...
86
HUS-532432234
...
52
B&S 100602-2980-H8 FOR SERVICE & PARTS 1-800-233-3723 HUS-000000000
...
4
Grassbag HUS-532401898
...
35
KNOB.HANDLE.PLASTIC.STAR.BLACK HUS-532182398
...
- -
DECAL.INTRN.SELF-PROPELLED NOT SHOWN HUS-583119801
...
45
HANDLE.ASM.UPPER.W/GRIP HUS-532186296
...
42
HANDLE.LOWER.GREY HUS-532187096
...
22
SCREW 1/4X20 HUS-817600406
...
34
BRKT.ADJ.LOWER.HDL.LH HUS-532187063
...
27
DECAL.CUTFINGER.CE.02 HUS-581579101
...
47
SCREW HUS-532178848
...
2
COTTER PIN (3 2)(2 2MC) HUS-532065322
...
8
ROD, PIVOT HUS-532183479
...
17
WASHER,HARDEN HUS-532851074
...
54
HUS-532433359
...
18
Washers HUS-596238701
...
21
SHIELD.DEBRIS.21.HV.RWGD.BLACK HUS-532188510
...
51
NEEDS DESCRIPTION HUS-532433429
...
37
GUARD.CLIP.ON.21.HV.GRAY HUS-532185996
...
50
GUIDE.ROPE.WALK.MOWER HUS-532188501
...
11
TUBE.SKIRT.HV.RWGD.BLACK HUS-532188359
...
48
BRACKET.UPSTOP.RT HUS-532430034
...
5
FRAME, GRASSBAG HUS-532188506
...
44
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
7
DOOR.GRASSBAG.H-GRAY HUS-532188498
...
36
SCREW.5/16X.680.TRIM.H HUS-532194187
...
1
HANDLE.GRASSBAG.REAR.H-GRAY HUS-532190582
...
20
ADAPTER.BLADE HUS-532186766
...
16
Blade, 21" HUS-532415076
...
43
BAIL.CONTROL.MZR.BS.ORANGE HUS-532426812
...
15
BOLT 3/8-16X1-1/8 HUS-532150406
