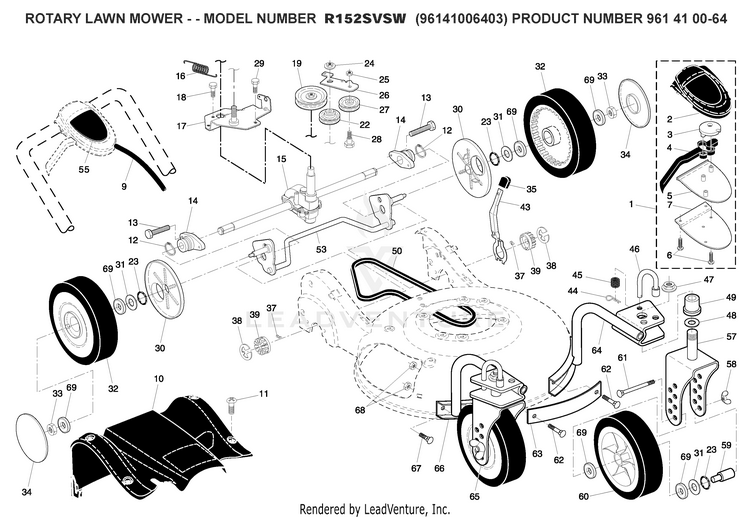

Husqvarna R152 - 96141006403 (2008-02) Walk Behind Mower

Model: R152 - 96141006403 (2008-02)

Back To Assemblies

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
62
BOLT HUS-532187474
...
53
SHAFT.ASM.REAR.TORQUE.HV.BZP HUS-532416740
...
22
PULLEY.IDLER.V-BELT HUS-532193791
...
17
BRACKET, GEAR CASE / DRIVE HUS-532408005
...
47
NUT HUS-532187247
...
23
O-RING..070X.487.NEOPRENE HUS-532197480
...
43
LEVER, SELECTOR, HEIGHT, REAR HUS-532188508
...
64
SUPPORT.TUBE.ASM.LT HUS-532414070
...
6
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
32
WHEEL.9X2.25.LP.TIGER.BLACK HUS-532192622
...
59
SPACER HUS-532185111
...
4
LEVER.BLACK HUS-532425662
...
12
RING.RETAINING. HUS-583607301
...
46
ROD, LOCK HUS-532185054
...
60
WHEEL.9X2.25.LP.TIGER.SILVER HUS-532192234
...
10
RP.COVER.DRIVE.REAR.21.HV.GRAY HUS-532188356
...
7
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
66
SUPPORT.TUBE.ASM.RT HUS-532414069
...
69
BEARING.8".WHEEL HUS-532751068
...
44
SPRING RETAINER HUS-532169675
...
37
PAWL, DRIVE HUS-532404845
...
24
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
68
Nuts HUS-596583702
...
63
STRAP.FRONT.CASTER.ORANGE HUS-532188475
...
25
NUT.CENTERLOCK.5/16- HUS-873930500
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
27
IDLER PULLEY HUS-532166043
...
1
CONTROL.DR.HV.RWGD.GRY/BLU HUS-532197012
...
38
E-RING 7/16 RE HUS-812000058
...
3
PULLEY.CAM.DRIVE.CONTROL.HV HUS-532187353
...
30
DUST COVER, WHEEL HUS-532183457
...
50
BELT, DRIVE HUS-532408031
...
18
SCREW HUS-532163409
...
57
BRACKET.WHEEL.ASM.LT.CASTER.OR HUS-532417063
...
15
TRANSMISSION.21.RWGD.HV HUS-532408029
...
9
ASM.CABLE. HUS-532197011
...
34
HUBCAP.WHEEL.5.SPOKE.SILVER HUS-532183442
...
2
COVER TOP AUTO WALK CONTROL HUS-532406260
...
5
COVER BOTTOM AUTO WLK CONTROL HUS-532406261
...
35
KNOB.SELECTOR.SPRG.H-GRY (2 2) HUS-532185994
...
48
WASHER.FLAT.1/2 HUS-532188906
...
58
NUT.WING.5/16-18.YELLOW HUS-532187248
...
31
WASHER.FLAT.1/2 HUS-532088348
...
14
BEARING / AXLE SUPPORT HUS-532408027
...
39
PINION.14.TEETH.FGD HUS-532403849
...
13
HINGE SCREW HUS-532088652
...
29
SCREW 14-20 X 5/8 HUS-817060410
...
16
SPRING HUS-532406558
...
61
CARRIAGE BOLT HUS-872270528
...
11
SCREW HUS-532194188
...
49
BUSHING. HUS-532195996
...
26
ARM.IDLER.BZP HUS-532416736
...
65
BRACKET.WHEEL.ASM.RIGHT.ORANGE HUS-532417064
...
28
SHOULDER BOLT HUS-532160829
...
67
BOLT HUS-532187555
...
19
RP PULLEY.DRIVE.EZ/VAR.SCREWON HUS-532443262
...
55
NEEDS DESCRIPTION HUS-532416958
...
45
SPRING HUS-532185051
