product name

Husqvarna R152 - 96141006402 (2008-02) Walk Behind Mower

Model: R152 - 96141006402 (2008-02)

Save Part Not Listed?
product name

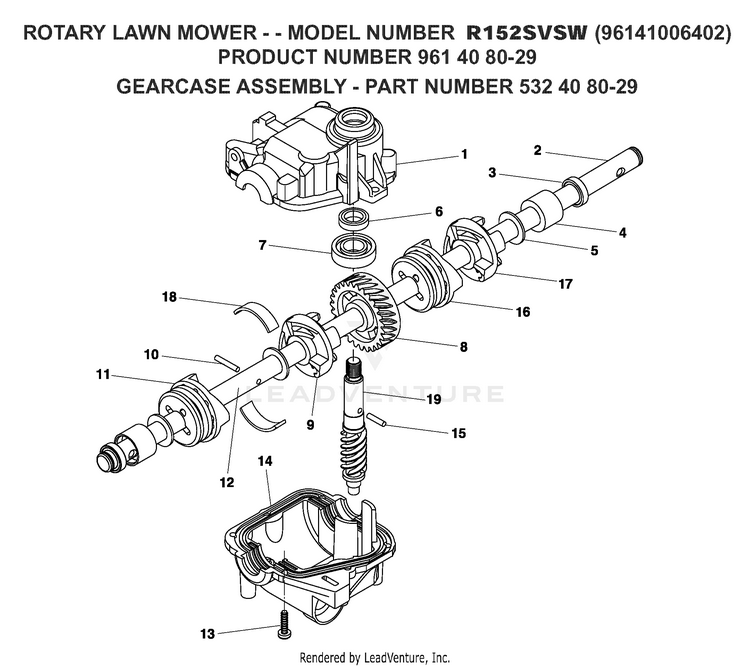

GEAR CASE

...
...
8
GEAR 28 TEETH HUS-532412742
...
9
DOG.FIXED.LH.32003 HUS-532412739
...
17
DOG.MOVEABLE.RH.32006 HUS-532412743
...
5
WASHER HUS-532183509
...
4
BUSHING HUS-532183511
...
7
BEARING HUS-532183506
...
15
PIN 3.50.337 - 33733 HUS-532412746
...
10
PIN 7 33732 HUS-532412741
...
19
NEEDS DESCRIPTION HUS-532413267
...
12
NEEDS DESCRIPTION HUS-532413268
...
2
NEEDS DESCRIPTION HUS-532413269
...
6
SEAL INPUT SHAFT HUS-532183514
...
11
DOG.MOVEABLE.LH.32005 HUS-532412740
...
3
SEAL.OUTPUT.SHAFT HUS-532183508
...
1
CASE UPPER HUS-532412736
...
13
SCREW HUS-532183513
...
18
SPRING LEAF HUS-532410731
...
14
CASE, LOWER HUS-532412747
...
16
DOG.FIXED.RH.32004 HUS-532412744

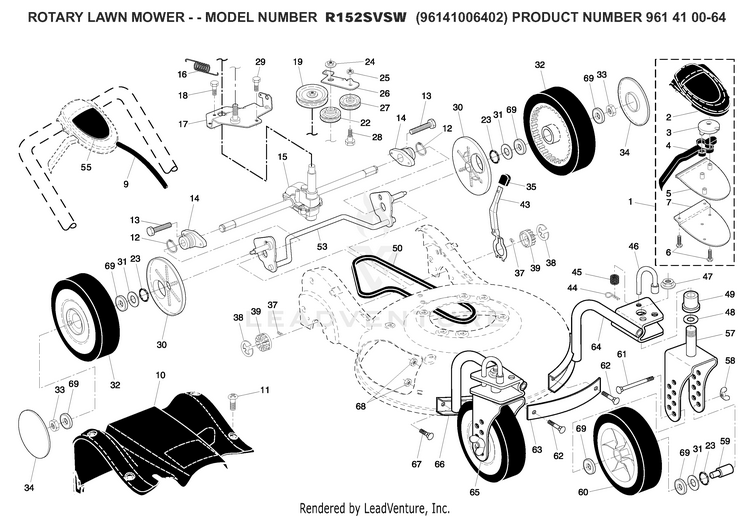

PRODUCT COMPLETE

...
...
61
CARRIAGE BOLT HUS-872270528
...
69
BEARING.8".WHEEL HUS-532751068
...
23
O-RING..070X.487.NEOPRENE HUS-532197480
...
55
DECAL, DRIVE HUS-532189378
...
62
BOLT HUS-532187474
...
10
RP.COVER.DRIVE.REAR.21.HV.GRAY HUS-532188356
...
63
STRAP.FRONT.CASTER.ORANGE HUS-532188475
...
22
PULLEY.IDLER.V-BELT HUS-532193791
...
44
SPRING RETAINER HUS-532169675
...
6
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
50
BELT, DRIVE HUS-532408031
...
47
NUT HUS-532187247
...
59
SPACER HUS-532185111
...
28
SHOULDER BOLT HUS-532160829
...
45
SPRING HUS-532185051
...
60
WHEEL.9X2.25.LP.TIGER.SILVER HUS-532192234
...
27
IDLER PULLEY HUS-532166043
...
16
SPRING HUS-532406558
...
67
BOLT HUS-532187555
...
15
TRANSMISSION.21.RWGD.HV HUS-532408029
...
48
WASHER.FLAT.1/2 HUS-532188906
...
13
HINGE SCREW HUS-532088652
...
38
E-RING 7/16 RE HUS-812000058
...
57
BRACKET.WHEEL.ASM.LT.CASTER.OR HUS-532417063
...
26
ARM.IDLER.BZP HUS-532416736
...
68
Nuts HUS-596583702
...
7
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
37
PAWL, DRIVE HUS-532404845
...
29
SCREW 14-20 X 5/8 HUS-817060410
...
3
PULLEY.CAM.DRIVE.CONTROL.HV HUS-532187353
...
12
RING.RETAINING. HUS-583607301
...
19
RP PULLEY.DRIVE.EZ/VAR.SCREWON HUS-532443262
...
31
WASHER.FLAT.1/2 HUS-532088348
...
43
LEVER, SELECTOR, HEIGHT, REAR HUS-532188508
...
58
NUT.WING.5/16-18.YELLOW HUS-532187248
...
18
SCREW HUS-532163409
...
65
BRACKET.WHEEL.ASM.RIGHT.ORANGE HUS-532417064
...
2
COVER TOP AUTO WALK CONTROL HUS-532406260
...
30
DUST COVER, WHEEL HUS-532183457
...
39
PINION.14.TEETH.FGD HUS-532403849
...
53
SHAFT.ASM.REAR.TORQUE.HV.BZP HUS-532416740
...
25
NUT.CENTERLOCK.5/16- HUS-873930500
...
4
LEVER.BLACK HUS-532425662
...
17
BRACKET, GEAR CASE / DRIVE HUS-532408005
...
11
SCREW HUS-532194188
...
14
BEARING / AXLE SUPPORT HUS-532408027
...
9
ASM.CABLE. HUS-532197011
...
32
WHEEL.9X2.25.LP.TIGER.BLACK HUS-532192622
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
66
SUPPORT.TUBE.ASM.RT HUS-532414069
...
24
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
46
ROD, LOCK HUS-532185054
...
5
COVER BOTTOM AUTO WLK CONTROL HUS-532406261
...
35
KNOB.SELECTOR.SPRG.H-GRY (2 2) HUS-532185994
...
1
CONTROL.DR.HV.RWGD.GRY/BLU HUS-532197012
...
34
HUBCAP.WHEEL.5.SPOKE.SILVER HUS-532183442
...
49
BUSHING. HUS-532195996
...
64
SUPPORT.TUBE.ASM.LT HUS-532414070

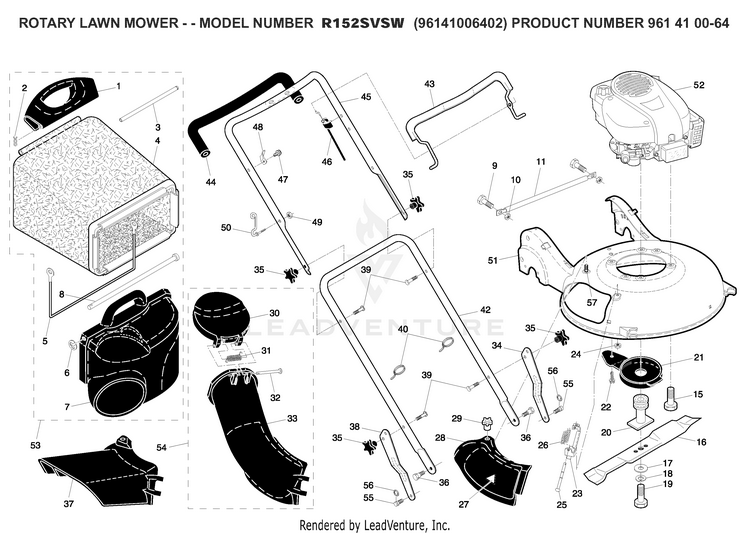

PRODUCT COMPLETE 2

...
...
56
E-RING 7/16 RE HUS-812000058
...
43
BAIL.CONTROL.MZR.BS.ORANGE HUS-532426812
...
10
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
33
DISCHARGE CHUTE, PLASTIC HUS-532188504
...
34
BRKT.ADJ.LOWER.HDL.LH HUS-532187063
...
49
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
19
BOLT.HD.HEAD.3/8-24X2.50 (2 2) HUS-532191760
...
36
SCREW.5/16X.680.TRIM.H HUS-532194187
...
24
NUT.HEX.FLANGE.1/4 HUS-532191730
...
51
NEEDS DESCRIPTION HUS-532400737
...
2
COTTER PIN (3 2)(2 2MC) HUS-532065322
...
57
STUD.SHOULDER.T45.BZP HUS-532194192
...
27
DECAL.CUTFINGER.CE.02 HUS-581579101
...
3
ROD.REAR.HANDLE.YELLOW HUS-532183483
...
15
BOLT 3/8-16X1-1/8 HUS-532150406
...
23
NEEDS DESCRIPTION HUS-532195997
...
42
HANDLE.LOWER.GREY HUS-532187096
...
-
DECAL.INTRN.SELF-PROPELLED HUS-583119801
...
4
Grassbag HUS-532401898
...
44
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
30
CHUTE.DOOR.21.HV.H-GRAY HUS-532190580
...
18
Washers HUS-596238701
...
40
WIRE TIE HUS-532007192
...
35
KNOB.HANDLE.STAR.HUSQ.GRAY HUS-532185588
...
54
CHUTE.LOWER.ASM.WALK.MOWER HUS-532189014
...
50
GUIDE.ROPE.WALK.MOWER HUS-532188501
...
47
SCREW HUS-532750634
...
28
DOOR.MULCH HUS-532188507
...
26
SPRING.MULCH.DOOR HUS-532183446
...
37
GUARD.CLIP.ON.21.HV.GRAY HUS-532185996
...
5
FRAME, GRASSBAG HUS-532188506
...
29
KNOB.MULCH.DOOR HUS-532183447
...
53
Grassbag Assembly, Complete HUS-532401896
...
7
DOOR.GRASSBAG.H-GRAY HUS-532188498
...
17
WASHER,HARDEN HUS-532851074
...
45
HANDLE.ASM.UPPER.W/GRIP HUS-532186296
...
11
TUBE.SKIRT.HV.RWGD.BLACK HUS-532188359
...
16
Blade, 21" HUS-532415076
...
6
E-RING HUS-812000014
...
21
SHIELD.DEBRIS.21.HV.RWGD.BLACK HUS-532188510
...
20
ADAPTER.BLADE HUS-532186766
...
46
CABLE.MZR.SNAP-IN HUS-583314001
...
31
SPRING HUS-532183478
...
32
ROD.HINGE.1/4"3.82" HUS-532183445
...
38
BRACKET.ADJ.LOWER.HDL.RT.GREY HUS-532190621
...
1
HANDLE.GRASSBAG.REAR.H-GRAY HUS-532190582
...
25
ROD.HINGE.1/4"3.82" HUS-532183445
...
48
BRACKET.UPSTOP.RT HUS-532430034
...
22
SCREW 1/4X20 HUS-817600406
...
8
ROD, PIVOT HUS-532183479
...
39
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
9
BOLT T HUS-872140405
