Husqvarna R152 - 96141006300 (2006-02) Walk Behind Mower

Model: R152 - 96141006300 (2006-02)

Back To Assemblies

Save Part Not Listed?
product name

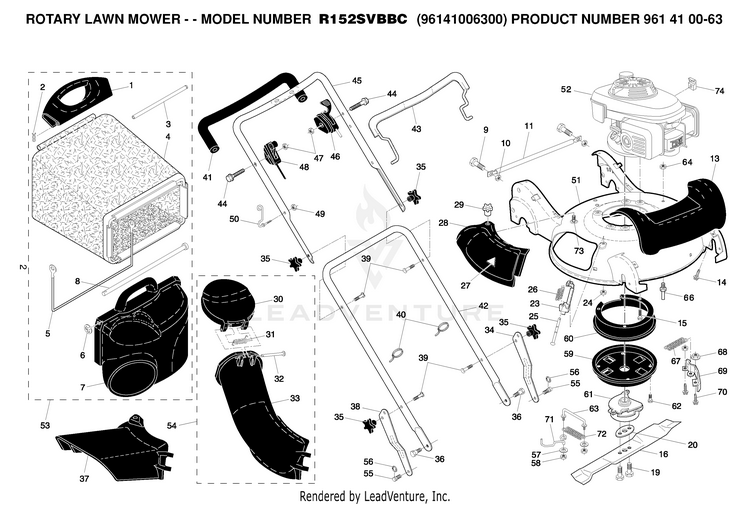

FRAME & ENGINE

...
...
4
Grassbag HUS-532401898
...
27
DECAL.CUTFINGER.CE.02 HUS-581579101
...
64
NEEDS DESCRIPTION HUS-873197033
...
57
WASHER HUS-532053998
...
7
DOOR.GRASSBAG.H-GRAY HUS-532188498
...
- -
NEEDS DESCRIPTION HUS-532194070
...
13
COVER.FRONT.21.HI-VAC.BLK HUS-586531501
...
51
NEEDS DESCRIPTION HUS-532400728
...
40
WIRE TIE HUS-532007192
...
44
SCREW HUS-532189937
...
- -
NEEDS DESCRIPTION HUS-532194071
...
36
SCREW.5/16X.680.TRIM.H HUS-532194187
...
47
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
50
GUIDE.ROPE.WALK.MOWER HUS-532188501
...
35
KNOB.HANDLE.STAR.HUSQ.GRAY HUS-532185588
...
63
LINK.TORQUE.BBC HUS-532180188
...
70
Bolts HUS-596582501
...
14
SCREW.HWH.13-16-5.8.BZP HUS-532194189
...
43
BAIL.CONTROL.HV.BBC.BLACK HUS-583754701
...
46
CONTROL.BBC.HV.GRY/ORG HUS-532196541
...
31
SPRING HUS-532183478
...
16
NEEDS DESCRIPTION HUS-532199380
...
6
E-RING HUS-812000014
...
- -
DECAL.INTRN.SELF-PROPELLED HUS-583119801
...
49
SCREW HUS-532183365
...
67
SPRING.BBC HUS-532180393
...
74
BRACKET.THROTTLE HUS-532190903
...
37
GUARD.CLIP.ON.21.HV.GRAY HUS-532185996
...
42
HANDLE.LOWER.GREY HUS-532187096
...
9
BOLT T HUS-872140405
...
34
BRKT.ADJ.LOWER.HDL.LH HUS-532187063
...
10
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
32
ROD.HINGE.1/4"3.82" HUS-532183445
...
72
SPRING.LINK.BBC HUS-532180394
...
56
E-RING 7/16 RE HUS-812000058
...
1
HANDLE.GRASSBAG.REAR.H-GRAY HUS-532190582
...
60
COVER.BELT.BBC.AW.TOP HUS-532190930
...
15
BOLT 3/8-16X1-1/8 HUS-532150406
...
23
BRACKET.ASM.HINGE HUS-532183609
...
68
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
29
KNOB.MULCH.DOOR HUS-532183447
...
28
DOOR.MULCH HUS-532188507
...
66
STUC.GUIDE.BELT.RWGD HUS-532182131
...
69
CLUTCH/BRAKE.BZP HUS-532188525
...
- -
NEEDS DESCRIPTION HUS-532199407
...
25
ROD.HINGE.1/4"3.82" HUS-532183445
...
45
HANDLE.ASM.UPPER.W/GRIP HUS-532186296
...
39
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
2
COTTER PIN (3 2)(2 2MC) HUS-532065322
...
71
BELT KEEPER HUS-532188545
...
54
CHUTE.LOWER.ASM.WALK.MOWER HUS-532189014
...
73
STUD.INSERT HUS-532188634
...
53
Grassbag Assembly, Complete HUS-532401896
...
62
SCREW HUS-817021008
...
20
NEEDS DESCRIPTION HUS-532193409
...
11
TUBE.SKIRT.HV.RWGD.BLACK HUS-532188359
...
55
STUD.SHOULDER.T45.BZP HUS-532194192
...
59
BELT COVER, LOWER HUS-532188546
...
3
ROD.REAR.HANDLE.YELLOW HUS-532183483
...
58
NUT HUS-873510600
...
48
THROTTLE CONTROL HUS-532191257
...
19
NEEDS DESCRIPTION HUS-532193407
...
38
BRACKET.ADJ.LOWER.HDL.RT.GREY HUS-532190621
...
8
ROD, PIVOT HUS-532183479
...
24
NUT.HEX.FLANGE.1/4 HUS-532191730
...
26
SPRING.MULCH.DOOR HUS-532183446
...
33
DISCHARGE CHUTE, PLASTIC HUS-532188504
...
41
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
30
CHUTE.DOOR.21.HV.H-GRAY HUS-532190580
...
5
FRAME, GRASSBAG HUS-532188506
...
- -
NEEDS DESCRIPTION HUS-532199408
