Husqvarna R152 - 95417024500 (2005-02) Walk Behind Mower

Model: R152 - 95417024500 (2005-02)

Back To Assemblies

Save Part Not Listed?
product name

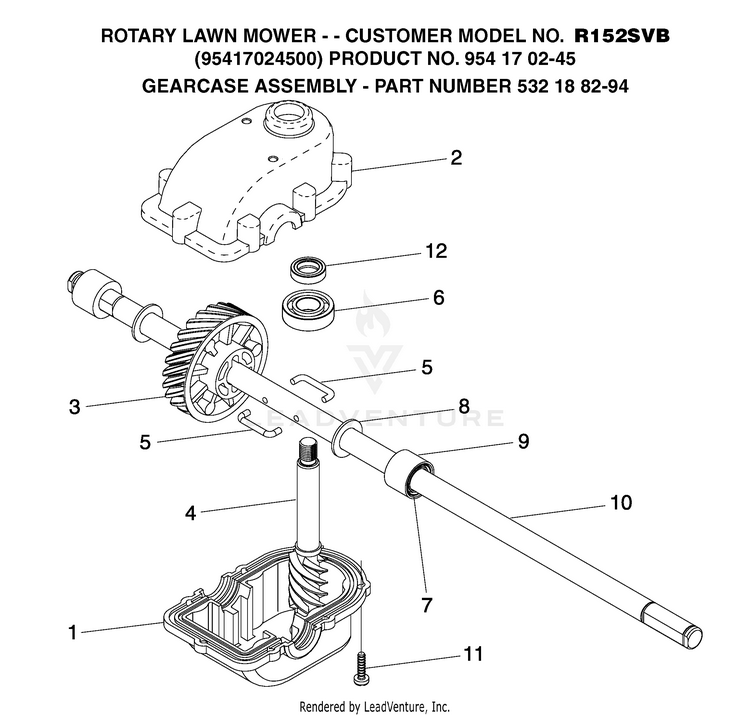

GEAR CASE

...
...
12
SEAL INPUT SHAFT HUS-532183514
...
10
SHAFT OUTPUT HUS-532191247
...
7
SEAL.OUTPUT.SHAFT HUS-532183508
...
2
GEARCASE.HOUSING HUS-532191245
...
- -
GREASE, 14 OZ. CARTRIDGE HUS-585517301
...
11
SCREW HUS-532183513
...
1
CASE, LOWER HUS-532187530
...
9
BUSHING HUS-532183511
...
5
WIRE, FORMED (15966) HUS-532183505
...
4
WORM GEAR HUS-532191246
...
6
BEARING HUS-532183506
...
3
GEAR.24.TOOTH.WALK.MOWER HUS-532187532
...
8
WASHER HUS-532183509
Schematic Image Zoomed
