Husqvarna R152 - 95417024400 (2005-02) Walk Behind Mower

Model: R152 - 95417024400 (2005-02)

Back To Assemblies

Save Part Not Listed?
product name

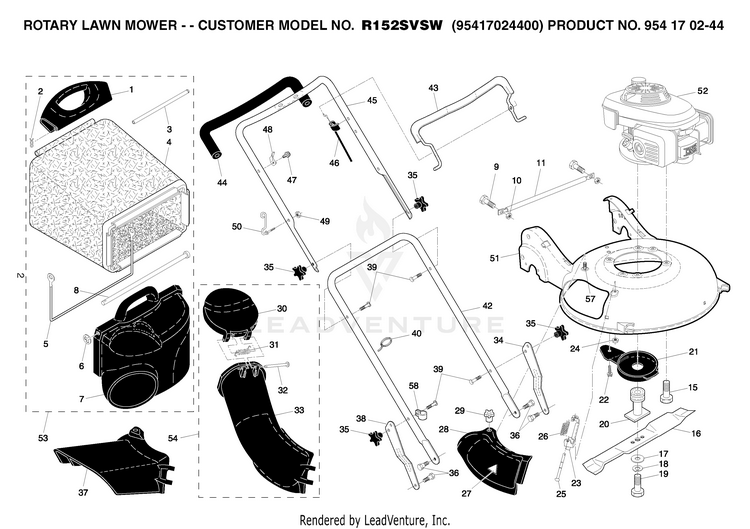

FRAME & ENGINE

...
...
38
BRACKET.ADJ.LOWER.HDL.RT.GREY HUS-532190621
...
50
GUIDE.ROPE.WALK.MOWER HUS-532188501
...
2
COTTER PIN (3 2)(2 2MC) HUS-532065322
...
23
NEEDS DESCRIPTION HUS-532195997
...
3
ROD.REAR.HANDLE.YELLOW HUS-532183483
...
29
KNOB.MULCH.DOOR HUS-532183447
...
42
HANDLE.LOWER.GREY HUS-532187096
...
37
GUARD.CLIP.ON.21.HV.GRAY HUS-532185996
...
8
ROD, PIVOT HUS-532183479
...
48
BRACKET.UPSTOP.RT HUS-532430034
...
49
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
54
CHUTE.LOWER.ASM.WALK.MOWER HUS-532189014
...
21
SHIELD.DEBRIS.21.HV.RWGD.BLACK HUS-532188510
...
16
21" WALK MOWER BLADE HUS-594893001
...
1
HANDLE.GRASSBAG.REAR.H-GRAY HUS-532190582
...
17
WASHER,HARDEN HUS-532851074
...
11
TUBE.SKIRT.HV.RWGD.BLACK HUS-532188359
...
35
KNOB.HANDLE.STAR.HUSQ.GRAY HUS-532185588
...
28
DOOR.MULCH HUS-532188507
...
53
NEEDS DESCRIPTION HUS-532194087
...
24
NUT.HEX.FLANGE.1/4 HUS-532191730
...
15
BOLT 3/8-16X1-1/8 HUS-532150406
...
19
BOLT.HD.HEAD.3/8-24X2.50 (2 2) HUS-532191760
...
9
BOLT T HUS-872140405
...
31
SPRING HUS-532183478
...
58
CLIP.CABLE.BLK HUS-532197991
...
30
CHUTE.DOOR.21.HV.H-GRAY HUS-532190580
...
47
SCREW HUS-532750634
...
25
ROD.HINGE.1/4"3.82" HUS-532183445
...
44
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
51
NEEDS DESCRIPTION HUS-532190281
...
36
SCREW.5/16X.680.TRIM.H HUS-532194187
...
40
WIRE TIE HUS-532007192
...
5
FRAME, GRASSBAG HUS-532188506
...
- -
NEEDS DESCRIPTION HUS-532195534
...
43
BAIL.CONTROL.MZR.BS.ORANGE HUS-532426812
...
22
SCREW 1/4X20 HUS-817600406
...
27
DECAL.CUTFINGER.CE.02 HUS-581579101
...
7
DOOR.GRASSBAG.H-GRAY HUS-532188498
...
20
ADAPTER.BLADE HUS-532186766
...
46
CABLE.MZR.ZONE.CONTROL HUS-532424983
...
10
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
26
SPRING.MULCH.DOOR HUS-532183446
...
- -
DECAL.INTERN.4.SYMBOL.CURVED HUS-532182191
...
18
Washers HUS-596238701
...
- -
NEEDS DESCRIPTION HUS-532195535
...
6
E-RING HUS-812000014
...
57
STUD.INSERT HUS-532188634
...
33
DISCHARGE CHUTE, PLASTIC HUS-532188504
...
45
HANDLE.ASM.UPPER.W/GRIP HUS-532186296
...
34
BRKT.ADJ.LOWER.HDL.LH HUS-532187063
...
39
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
4
NEEDS DESCRIPTION HUS-532194086
...
32
ROD.HINGE.1/4"3.82" HUS-532183445
