Husqvarna R152 - 95417024202 (2005-04) Walk Behind Mower

Model: R152 - 95417024202 (2005-04)

Save Part Not Listed?
product name

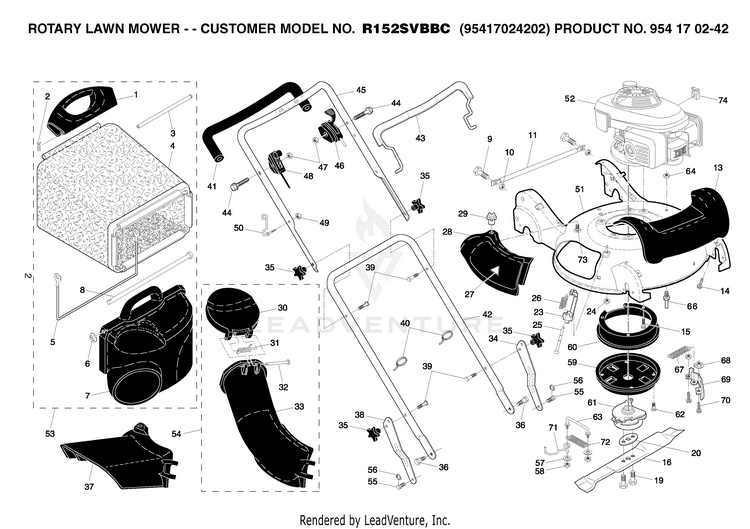

FRAME & ENGINE

...
...
70
Bolts HUS-596582501
...
71
BELT KEEPER HUS-532188545
...
- -
NEEDS DESCRIPTION HUS-532194070
...
35
KNOB.HANDLE.STAR.HUSQ.GRAY HUS-532185588
...
30
CHUTE.DOOR.21.HV.H-GRAY HUS-532190580
...
9
BOLT T HUS-872140405
...
51
NEEDS DESCRIPTION HUS-532194088
...
60
COVER.BELT.BBC.AW.TOP HUS-532190930
...
36
SCREW.5/16X.680.TRIM.H HUS-532194187
...
64
NEEDS DESCRIPTION HUS-873197033
...
66
STUC.GUIDE.BELT.RWGD HUS-532182131
...
48
THROTTLE CONTROL HUS-532191257
...
24
NUT.HEX.FLANGE.1/4 HUS-532191730
...
14
SCREW.HWH.13-16-5.8.BZP HUS-532194189
...
- -
DECAL.INTRN.SELF-PROPELLED HUS-583119801
...
57
WASHER HUS-532053998
...
5
FRAME, GRASSBAG HUS-532188506
...
16
BLADE.21".BBC HUS-532180459
...
40
WIRE TIE HUS-532007192
...
41
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
26
SPRING.MULCH.DOOR HUS-532183446
...
63
LINK.TORQUE.BBC HUS-532180188
...
68
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
62
SCREW HUS-817021008
...
55
STUD.SHOULDER.T45.BZP HUS-532194192
...
72
SPRING.LINK.BBC HUS-532180394
...
23
BRACKET.ASM.HINGE HUS-532183609
...
31
SPRING HUS-532183478
...
47
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
29
KNOB.MULCH.DOOR HUS-532183447
...
69
CLUTCH/BRAKE.BZP HUS-532188525
...
54
CHUTE.LOWER.ASM.WALK.MOWER HUS-532189014
...
7
DOOR.GRASSBAG.H-GRAY HUS-532188498
...
44
SCREW HUS-532189937
...
3
ROD.REAR.HANDLE.YELLOW HUS-532183483
...
32
ROD.HINGE.1/4"3.82" HUS-532183445
...
56
E-RING 7/16 RE HUS-812000058
...
39
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
43
BAIL.CONTROL.HV.BBC.BLACK HUS-583754701
...
73
STUD.INSERT HUS-532188634
...
6
E-RING HUS-812000014
...
34
BRKT.ADJ.LOWER.HDL.LH HUS-532187063
...
20
NEEDS DESCRIPTION HUS-532193409
...
13
COVER.FRONT.21.HI-VAC.BLK HUS-586531501
...
19
NEEDS DESCRIPTION HUS-532193407
...
42
HANDLE.LOWER.GREY HUS-532187096
...
58
NUT HUS-873510600
...
25
ROD.HINGE.1/4"3.82" HUS-532183445
...
15
BOLT 3/8-16X1-1/8 HUS-532150406
...
37
GUARD.CLIP.ON.21.HV.GRAY HUS-532185996
...
49
SCREW HUS-532183365
...
28
DOOR.MULCH HUS-532188507
...
50
GUIDE.ROPE.WALK.MOWER HUS-532188501
...
33
DISCHARGE CHUTE, PLASTIC HUS-532188504
...
2
COTTER PIN (3 2)(2 2MC) HUS-532065322
...
4
NEEDS DESCRIPTION HUS-532194086
...
27
DECAL.CUTFINGER.CE.02 HUS-581579101
...
74
BRACKET.THROTTLE HUS-532190903
...
45
HANDLE.ASM.UPPER.W/GRIP HUS-532186296
...
46
CONTROL.BBC.HV.GRY/ORG HUS-532196541
...
1
HANDLE.GRASSBAG.REAR.H-GRAY HUS-532190582
...
53
NEEDS DESCRIPTION HUS-532194087
...
38
BRACKET.ADJ.LOWER.HDL.RT.GREY HUS-532190621
...
11
TUBE.SKIRT.HV.RWGD.BLACK HUS-532188359
...
- -
NEEDS DESCRIPTION HUS-532194071
...
8
ROD, PIVOT HUS-532183479
...
67
SPRING.BBC HUS-532180393
...
59
BELT COVER, LOWER HUS-532188546
...
10
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602

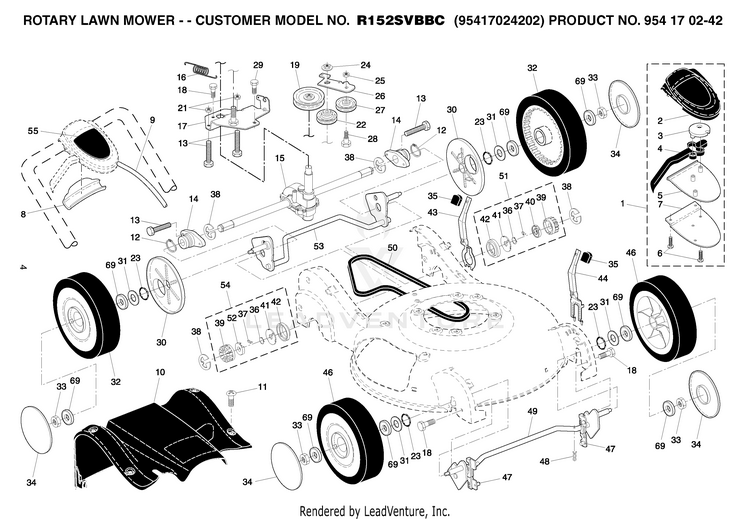

WHEELS & TIRES

...
...
12
RING.RETAINING. HUS-583607301
...
43
LEVER, SELECTOR, HEIGHT, REAR HUS-532188508
...
2
KIT.CONTROL.DR.CASE.HALVES.GRY HUS-532414555
...
28
SHOULDER BOLT HUS-532160829
...
3
PULLEY.CAM.DRIVE.CONTROL.HV HUS-532187353
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
23
O-RING..070X.487.NEOPRENE HUS-532197480
...
21
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
25
NUT.CENTERLOCK.5/16- HUS-873930500
...
52
RETAINER, DRIVE, RH HUS-532175102
...
69
BEARING.8".WHEEL HUS-532751068
...
35
KNOB.SELECTOR.SPRG.H-GRY (2 2) HUS-532185994
...
4
LEVER.BLACK HUS-532425662
...
15
TRANSMISSION.21.HI-VAC.EZ HUS-532188294
...
31
WASHER.FLAT.1/2 HUS-532088348
...
10
RP.COVER.DRIVE.REAR.21.HV.GRAY HUS-532188356
...
55
DECAL, DRIVE HUS-532189378
...
9
ASM.CABLE. HUS-532197011
...
40
RETAINER.DRIVE.21.EZ-WALK.LT HUS-532175105
...
17
BRKT.TRANSMISSION.HV.E HUS-532196822
...
51
KIT.PINION.ASM HUS-532414860
...
27
IDLER PULLEY HUS-532166043
...
22
PULLEY.IDLER.V-BELT HUS-532193791
...
29
SCREW 14-20 X 5/8 HUS-817060410
...
49
SHAFT.ASM.FRONT.TORQUE HUS-532192431
...
42
SEAL.PINION HUS-532184172
...
50
BELT.DRIVE.EZ.WALK.HI-VAC HUS-532183688
...
30
DUST COVER, WHEEL HUS-532183457
...
38
E-RING 7/16 RE HUS-812000058
...
18
SCREW HUS-532163409
...
13
SCREW.1/4-20X21/4.HEX. HUS-532194186
...
24
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
11
SCREW HUS-532194188
...
53
AXLE.ASM.REAR.TORQUE.BZP HUS-532192138
...
8
EZ WALK SNAP COVER PLATE HUS-532186297
...
26
ARM.IDLER.BZP HUS-532194123
...
1
CONTROL.DR.HV.RWGD.GRY/BLU HUS-532197012
...
19
PULLEY HUS-532194128
...
32
WHEEL.9X2.25.LP.TIGER.BLACK HUS-532192622
...
6
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
16
SPRING.RETURN HUS-532194124
...
36
SPRING, TORSION HUS-532188291
...
48
SPRING RETAINER HUS-532169675
...
46
WHEEL.9X2.25.LP.TIGER.BLK HUS-532192232
...
39
GEAR, PINION HUS-532175103
...
5
KIT.CONTROL.DR.CASE.HALVES.GRY HUS-532414555
...
44
SPRING.SELECTOR.FRONT HUS-532188509
...
37
PAWL.DRIVE.21.EZ-WALK HUS-532175098
...
54
KIT.PINION.ASM HUS-532414860
...
14
BEARING.SUPPORT.ASSEM HUS-532187120
...
34
HUBCAP.WHEEL.5.SPOKE.SILVER HUS-532183442
...
47
BUSHING.FRONT.TORQUE.SHAFT HUS-532183438
...
41
DISC.DRIVE.21.EZ-WALK HUS-532175104
...
7
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
