Husqvarna R145 SV - 96141013105 (2010-01) Walk Behind Mower

Model: R145 SV - 96141013105 (2010-01)

Save Part Not Listed?
product name

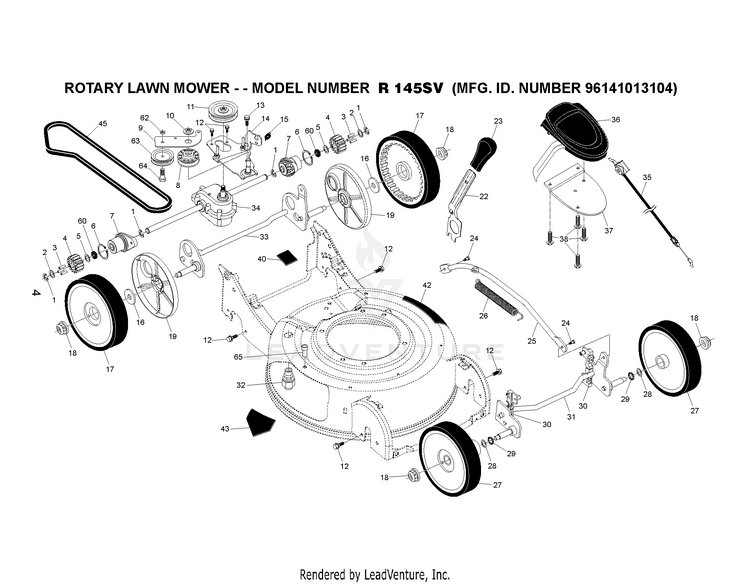

DRIVE

...
...
16
WASHER FLUT HUS-532067725
...
11
PULLEY.1.PIECE HUS-532193443
...
31
NEEDS DESCRIPTION HUS-532414071
...
24
SHOULDER BOLT SEMI GIMLET PT. HUS-532407059
...
14
NEEDS DESCRIPTION HUS-532401113
...
45
NEEDS DESCRIPTION HUS-532199225
...
4
PINION.DRIVE.WALK HUS-532166450
...
30
BUSHING.FRONT.TORQUE.SHAFT HUS-584465001
...
18
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
19
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
8
PULLEY.IDLER.V-BELT HUS-532193791
...
40
NEEDS DESCRIPTION HUS-532199731
...
10
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
64
SHOULDER BOLT HUS-532160829
...
63
IDLER PULLEY HUS-532166043
...
38
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
43
DECAL.CUTFINGER.CE.02 HUS-581579101
...
2
THRUST WASHER HUS-532057079
...
7
BEARING.ASM HUS-583259401
...
26
SPRING EXTENSION HUS-532409616
...
3
PAWL.DRIVE.ETCHED HUS-532170011
...
36
NEEDS DESCRIPTION HUS-532425663
...
9
ARM.IDLER.BZP HUS-532421101
...
1
E-RING 7/16 RE HUS-812000058
...
22
NEEDS DESCRIPTION HUS-532413519
...
17
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 HUS-532401274
...
34
NEEDS DESCRIPTION HUS-532199231
...
60
WASHER HUS-532088118
...
33
NEEDS DESCRIPTION HUS-532414073
...
35
NEEDS DESCRIPTION HUS-532401553
...
5
Washers HUS-596040101
...
23
NEEDS DESCRIPTION HUS-532167653
...
29
O-RING..070X.487.NEOPRENE HUS-532197480
...
6
RING.RETAINING. HUS-583607301
...
27
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 HUS-532401273
...
25
ROD.LIFT.BZP HUS-532431815
...
37
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
32
NEEDS DESCRIPTION HUS-532400094
...
62
NUT.CENTERLOCK.5/16- HUS-873930500
...
13
SCREW 14-20 X 5/8 HUS-817060410
...
42
NEEDS DESCRIPTION HUS-532199912
...
12
SCREW HUS-532163409
...
28
WASHER.FLAT.1/2 HUS-532088348
...
15
SPRING.RETURN HUS-532194124

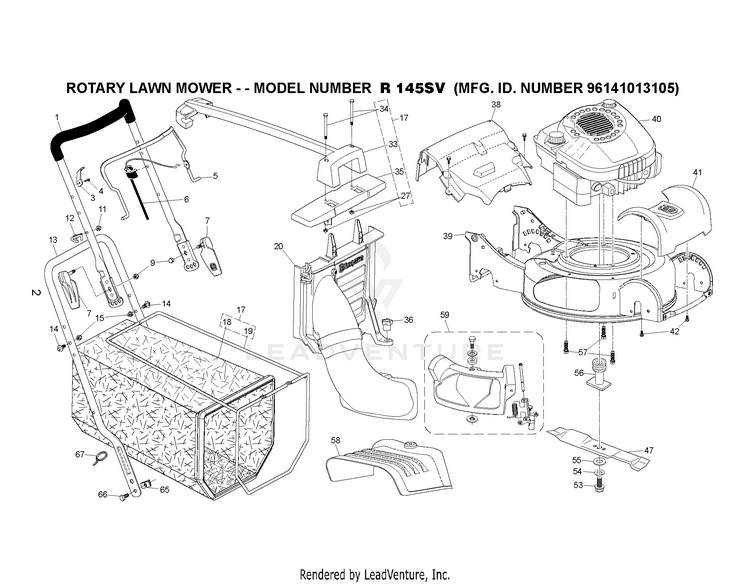

HANDLE & ENGINE

...
...
13
NEEDS DESCRIPTION HUS-532413535
...
18
NEEDS DESCRIPTION HUS-532199273
...
9
Locknut, Hex 1/4-20 HUS-532400413
...
46
SCREW.HEX.WSH HUS-532192325
...
17
NEEDS DESCRIPTION HUS-532400136
...
20
NEEDS DESCRIPTION HUS-532433360
...
34
NEEDS DESCRIPTION HUS-871090448
...
6
CABLE.MZR.47.75.SNAP-IN.PU.L HUS-532425923
...
25
BRACKET.DEBRIS.SHIELD.BZP HUS-532188839
...
54
Washers HUS-596238701
...
57
BOLT 3/8-16X1-1/8 HUS-532150406
...
45
NEEDS DESCRIPTION HUS-532413515
...
53
BOLT.HD.HEAD.3/8-24X2.50 (2 2) HUS-532191760
...
19
NEEDS DESCRIPTION HUS-532199278
...
15
NUT.LOCK.5/16-18 HUS-532751153
...
4
SCREW HUS-532750634
...
39
NEEDS DESCRIPTION HUS-532433394
...
59
NEEDS DESCRIPTION HUS-532433406
...
12
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
65
NEEDS DESCRIPTION HUS-532404008
...
1
HANDLE.ASM.UP.W/ADJ.BKT HUS-583255301
...
36
KNOB.MULCH.DOOR HUS-532183447
...
5
BAIL.CONTROL.MZR.BS.ORANGE HUS-532426812
...
35
NEEDS DESCRIPTION HUS-532413512
...
66
SCREW HUS-532850999
...
47
BLADE.SWEPT.WING.45CM.H.TREAT HUS-583250401
...
55
WASHER,HARDEN HUS-532851074
...
27
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
56
ADAPTER.BLADE HUS-532186766
...
38
NEEDS DESCRIPTION HUS-532432680
...
42
SCREW.HWH.13-16-5.8.BZP HUS-532194189
...
67
WIRE TIE HUS-532007192
...
44
HINGE SCREW HUS-532088652
...
58
NEEDS DESCRIPTION HUS-532433419
...
7
QUICK.ASM.RELEASE.BLACK HUS-532430679
...
41
NEEDS DESCRIPTION HUS-532413514
...
14
STUD.QUICK.ADJUST HUS-532199255
...
3
BRACKET.UPSTOP.RT HUS-532430034
...
33
NEEDS DESCRIPTION HUS-532413536
...
43
NEEDS DESCRIPTION HUS-532401216
