Husqvarna R145 SV - 96141013101 (2007-06) Walk Behind Mower

Model: R145 SV - 96141013101 (2007-06)

Save Part Not Listed?
product name

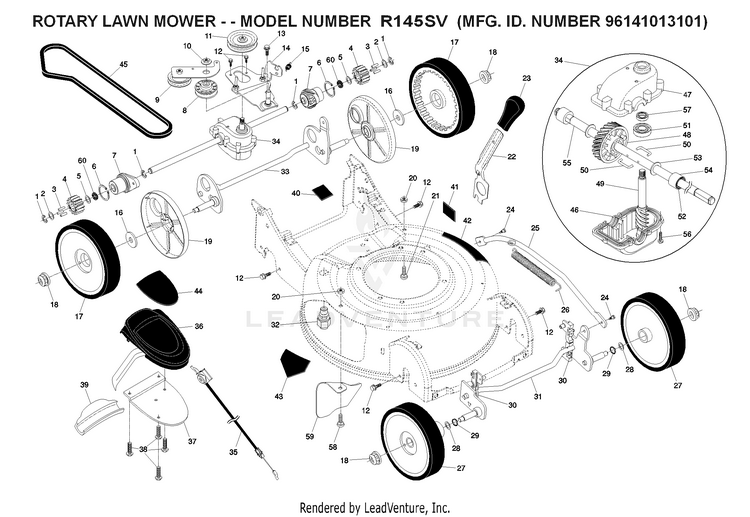

DRIVE

...
...
53
WASHER HUS-532183509
...
31
NEEDS DESCRIPTION HUS-532414071
...
20
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
19
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
55
NEEDS DESCRIPTION HUS-532403092
...
52
SEAL.OUTPUT.SHAFT HUS-532183508
...
57
SEAL INPUT SHAFT HUS-532183514
...
30
BUSHING.FRONT.TORQUE.SHAFT HUS-584465001
...
23
NEEDS DESCRIPTION HUS-532199269
...
29
O-RING..070X.487.NEOPRENE HUS-532197480
...
2
Washers HUS-596040101
...
25
NEEDS DESCRIPTION HUS-532407142
...
28
WASHER.FLAT.1/2 HUS-532088348
...
34
NEEDS DESCRIPTION HUS-532199231
...
18
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
4
PINION.DRIVE.WALK HUS-532166450
...
16
WASHER FLUT HUS-532067725
...
10
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
26
SPRING EXTENSION HUS-532409616
...
8
PULLEY.IDLER.V-BELT HUS-532193791
...
46
CASE, LOWER HUS-532187530
...
48
GEAR.24.TOOTH.WALK.MOWER HUS-532187532
...
54
BUSHING HUS-532183511
...
6
RING.RETAINING. HUS-583607301
...
7
NEEDS DESCRIPTION HUS-532400134
...
27
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 HUS-532401273
...
47
GEARCASE.HOUSING HUS-532191245
...
14
NEEDS DESCRIPTION HUS-532401113
...
12
SCREW HUS-532163409
...
40
NEEDS DESCRIPTION HUS-532199731
...
1
E-RING 7/16 RE HUS-812000058
...
43
DECAL.CUTFINGER.CE.02 HUS-581579101
...
17
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 HUS-532401274
...
24
SHOULDER BOLT SEMI GIMLET PT. HUS-532407059
...
11
PULLEY.1.PIECE HUS-532193443
...
32
NEEDS DESCRIPTION HUS-532400094
...
3
PAWL.DRIVE.ETCHED HUS-532170011
...
50
WIRE, FORMED (15966) HUS-532183505
...
35
NEEDS DESCRIPTION HUS-532401553
...
45
NEEDS DESCRIPTION HUS-532199225
...
37
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
9
NEEDS DESCRIPTION HUS-532401188
...
36
CONTROL.DR.HV.RGD.GRY/BLU.45CM HUS-583270901
...
13
SCREW 14-20 X 5/8 HUS-817060410
...
44
DECAL, DRIVE HUS-532189378
...
42
NEEDS DESCRIPTION HUS-532199912
...
33
NEEDS DESCRIPTION HUS-532414073
...
49
NEEDS DESCRIPTION HUS-532403091
...
39
EZ WALK SNAP COVER PLATE HUS-532186297
...
56
SCREW HUS-532183513
...
51
BEARING HUS-532183506
...
22
NEEDS DESCRIPTION HUS-532413519
...
21
BOLT.CARRIAGE.1/4-20 X 7/8 HUS-872110407
...
15
SPRING.RETURN HUS-532194124
...
38
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
41
DECAL HUS-532159736

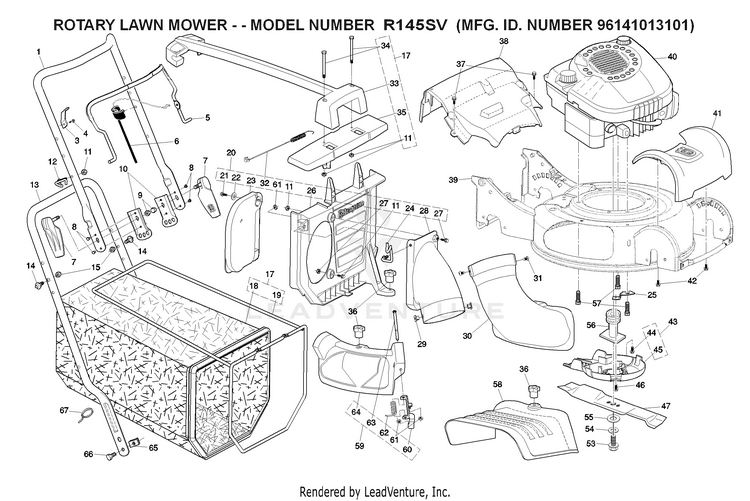

FRAME & ENGINE

...
...
18
NEEDS DESCRIPTION HUS-532199273
...
8
RIVET HUS-532199697
...
44
HINGE SCREW HUS-532088652
...
41
NEEDS DESCRIPTION HUS-532413514
...
9
Locknut, Hex 1/4-20 HUS-532400413
...
26
NEEDS DESCRIPTION HUS-532413509
...
62
SPRING.MULCH.DOOR HUS-532183446
...
4
SCREW HUS-532750634
...
25
BRACKET.DEBRIS.SHIELD.BZP HUS-532188839
...
45
NEEDS DESCRIPTION HUS-532413515
...
14
STUD.QUICK.ADJUST HUS-532199255
...
39
NEEDS DESCRIPTION HUS-532413802
...
31
SCREW.1/4-20X.50-0T30 HUS-583254901
...
1
HANDLE.ASM.UP.W/ADJ.BKT HUS-583255301
...
12
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
67
WIRE TIE HUS-532007192
...
46
SCREW.HEX.WSH HUS-532192325
...
35
NEEDS DESCRIPTION HUS-532413512
...
21
SCREW HUS-532163409
...
57
BOLT 3/8-16X1-1/8 HUS-532150406
...
19
NEEDS DESCRIPTION HUS-532199278
...
22
WASHER HUS-819091214
...
64
DOOR.MULCH.GREY HUS-532413518
...
5
BAIL.CONTROL.MZR.BS.ORANGE HUS-532426812
...
11
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
7
ASM.QUICK.RELEASE HUS-584380101
...
29
NEEDS DESCRIPTION HUS-532199727
...
59
NEEDS DESCRIPTION HUS-532409314
...
30
NEEDS DESCRIPTION HUS-532413511
...
3
BRACKET.UPSTOP.RT HUS-532430034
...
34
NEEDS DESCRIPTION HUS-871090448
...
66
SCREW HUS-532850999
...
32
NEEDS DESCRIPTION HUS-532401402
...
53
BOLT.HD.HEAD.3/8-24X2.50 (2 2) HUS-532191760
...
47
BLADE.SWEPT.WING.45CM.H.TREAT HUS-583250401
...
6
CABLE.MZR.50.SNAP-IN HUS-532427497
...
61
NUT.HEX.FLANGE.1/4 HUS-532191730
...
65
NEEDS DESCRIPTION HUS-532404008
...
37
SCREW, HEX WASHER HEAD HUS-532199422
...
42
SCREW.HWH.13-16-5.8.BZP HUS-532194189
...
23
NEEDS DESCRIPTION HUS-532413508
...
20
NEEDS DESCRIPTION HUS-532400135
...
17
NEEDS DESCRIPTION HUS-532400136
...
10
BRACKET.ADJ.3POS.GREY HUS-532413534
...
55
WASHER,HARDEN HUS-532851074
...
63
ROD.HINGE.1/4"3.82" HUS-532183445
...
56
ADAPTER.BLADE HUS-532186766
...
13
NEEDS DESCRIPTION HUS-532413535
...
15
NUT.LOCK.5/16-18 HUS-532751153
...
38
NEEDS DESCRIPTION HUS-532413513
...
36
KNOB.MULCH.DOOR HUS-532183447
...
43
NEEDS DESCRIPTION HUS-532401216
...
60
NEEDS DESCRIPTION HUS-532199268
...
24
NEEDS DESCRIPTION HUS-532408652
...
27
BOLT, SHOULDER HUS-532183518
...
28
NEEDS DESCRIPTION HUS-532413510
...
33
NEEDS DESCRIPTION HUS-532413536
...
58
NEEDS DESCRIPTION HUS-532413517
...
54
Washers HUS-596238701
