Husqvarna R145 SV - 96141013100 (2007-04) Walk Behind Mower

Model: R145 SV - 96141013100 (2007-04)

Back To Assemblies

Save Part Not Listed?
product name

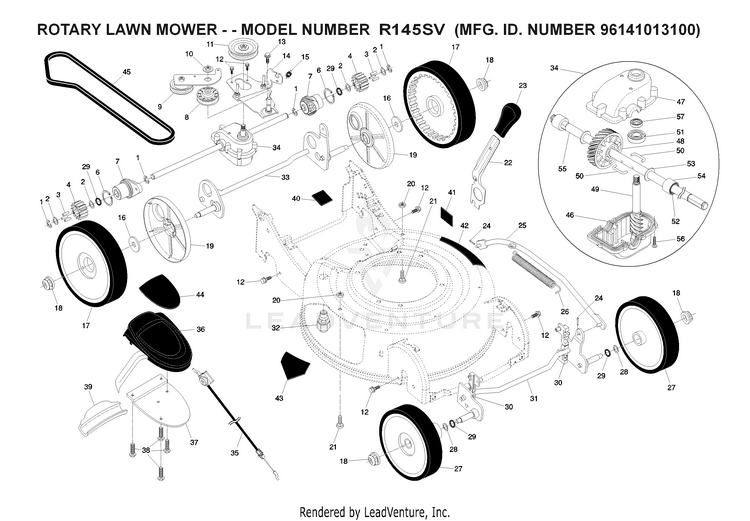

DRIVE

...
...
12
SCREW HUS-532163409
...
9
NEEDS DESCRIPTION HUS-532401188
...
51
BEARING HUS-532183506
...
1
E-RING 7/16 RE HUS-812000058
...
36
CONTROL.DR.HV.RGD.GRY/BLU.45CM HUS-583270901
...
22
NEEDS DESCRIPTION HUS-532413519
...
34
NEEDS DESCRIPTION HUS-532199231
...
2
Washers HUS-596040101
...
30
BUSHING.FRONT.TORQUE.SHAFT HUS-584465001
...
7
NEEDS DESCRIPTION HUS-532400134
...
3
PAWL.DRIVE.ETCHED HUS-532170011
...
46
CASE, LOWER HUS-532187530
...
43
DECAL.CUTFINGER.CE.02 HUS-581579101
...
31
NEEDS DESCRIPTION HUS-532413521
...
21
BOLT.CARRIAGE.1/4-20 X 7/8 HUS-872110407
...
24
RETAINER CLIP HUS-532700279
...
23
NEEDS DESCRIPTION HUS-532199269
...
35
NEEDS DESCRIPTION HUS-532401553
...
47
GEARCASE.HOUSING HUS-532191245
...
38
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
56
SCREW HUS-532183513
...
6
RING.RETAINING. HUS-583607301
...
25
ROD.ASM.LIFT HUS-583251101
...
33
NEEDS DESCRIPTION HUS-532413522
...
26
SPRING EXTENSION HUS-532409616
...
13
SCREW 14-20 X 5/8 HUS-817060410
...
37
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
49
NEEDS DESCRIPTION HUS-532403091
...
48
GEAR.24.TOOTH.WALK.MOWER HUS-532187532
...
27
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 HUS-532401273
...
41
DECAL HUS-532159736
...
19
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
57
SEAL INPUT SHAFT HUS-532183514
...
54
BUSHING HUS-532183511
...
16
WASHER FLUT HUS-532067725
...
10
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
39
EZ WALK SNAP COVER PLATE HUS-532186297
...
15
SPRING.RETURN HUS-532194124
...
4
PINION.DRIVE.WALK HUS-532166450
...
18
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
40
NEEDS DESCRIPTION HUS-532199731
...
50
WIRE, FORMED (15966) HUS-532183505
...
55
NEEDS DESCRIPTION HUS-532403092
...
11
PULLEY.1.PIECE HUS-532193443
...
28
WASHER.FLAT.1/2 HUS-532088348
...
45
NEEDS DESCRIPTION HUS-532199225
...
29
O-RING..070X.487.NEOPRENE HUS-532197480
...
17
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 HUS-532401274
...
44
DECAL, DRIVE HUS-532189378
...
53
WASHER HUS-532183509
...
20
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
8
PULLEY.IDLER.V-BELT HUS-532193791
...
14
NEEDS DESCRIPTION HUS-532401113
...
52
SEAL.OUTPUT.SHAFT HUS-532183508
...
32
NEEDS DESCRIPTION HUS-532400094
...
42
NEEDS DESCRIPTION HUS-532199912
