Husqvarna R145 - 96131002104 (2009-11) Walk Behind Mower

Model: R145 - 96131002104 (2009-11)

Save Part Not Listed?
product name

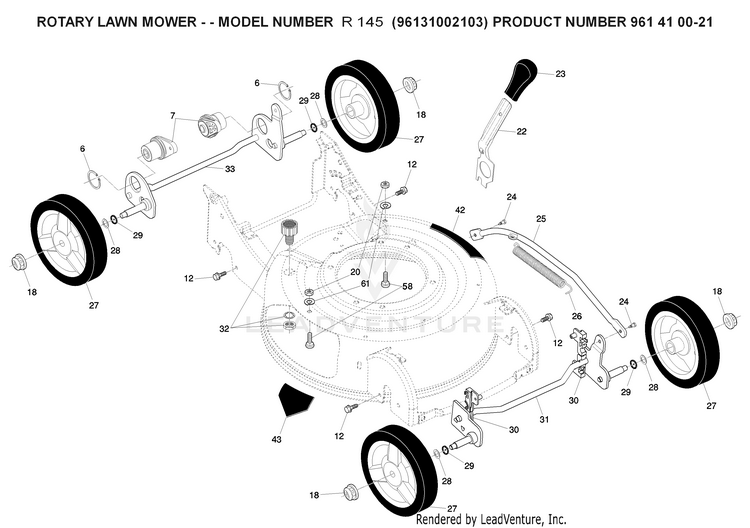

DRIVE

...
...
28
WASHER.FLAT.1/2 HUS-532088348
...
31
NEEDS DESCRIPTION HUS-532414071
...
42
NEEDS DESCRIPTION HUS-532199912
...
6
RING.RETAINING. HUS-583607301
...
30
BUSHING.FRONT.TORQUE.SHAFT HUS-584465001
...
23
NEEDS DESCRIPTION HUS-532167653
...
32
NEEDS DESCRIPTION HUS-532400094
...
26
SPRING EXTENSION HUS-532409616
...
7
NEEDS DESCRIPTION HUS-532199245
...
33
AXLE.ASM.REAR.TORQUE.BZP HUS-532414072
...
58
BOLT.CARRIAGE.1/4-20 X 7/8 HUS-872110407
...
24
SHOULDER BOLT SEMI GIMLET PT. HUS-532407059
...
27
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 HUS-532401273
...
18
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
61
Washers HUS-596238701
...
20
Hardware HUS-596041001
...
22
NEEDS DESCRIPTION HUS-532413519
...
29
O-RING..070X.487.NEOPRENE HUS-532197480
...
43
DECAL.CUTFINGER.CE.02 HUS-581579101
...
25
ROD.LIFT.BZP HUS-532431815
...
12
SCREW HUS-532163409

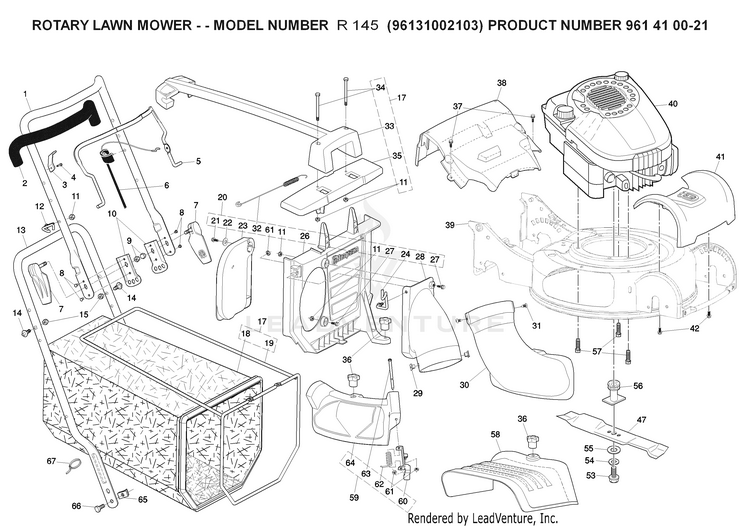

FRAME & ENGINE

...
...
34
NEEDS DESCRIPTION HUS-871090448
...
19
NEEDS DESCRIPTION HUS-532199278
...
24
NEEDS DESCRIPTION HUS-532408652
...
58
NEEDS DESCRIPTION HUS-532425130
...
38
NEEDS DESCRIPTION HUS-532413513
...
3
BRACKET.UPSTOP.RT HUS-532430034
...
62
SPRING.MULCH.DOOR HUS-532183446
...
5
BAIL.CONTROL.MZR.BS.ORANGE HUS-532426812
...
23
NEEDS DESCRIPTION HUS-532413508
...
29
NEEDS DESCRIPTION HUS-532199727
...
63
ROD.HINGE.1/4"3.82" HUS-532183445
...
40
B&S 122T02-1230-B1 HUS-000000000
...
2
GRIP, FOAM HUS-532186362
...
12
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
31
SCREW.1/4-20X.50-0T30 HUS-583254901
...
21
SCREW HUS-532163409
...
9
Locknut, Hex 1/4-20 HUS-532400413
...
59
NEEDS DESCRIPTION HUS-532409314
...
18
NEEDS DESCRIPTION HUS-532199273
...
22
WASHER HUS-819091214
...
39
NEEDS DESCRIPTION HUS-532413803
...
7
QUICK.ASM.RELEASE.BLACK HUS-532430679
...
64
DOOR.MULCH.GREY HUS-532413518
...
37
SCREW, HEX WASHER HEAD HUS-532199422
...
36
KNOB.MULCH.DOOR HUS-532183447
...
56
ADAPTER.BLADE.PUSH HUS-583250601
...
35
NEEDS DESCRIPTION HUS-532413512
...
55
WASHER,HARDEN HUS-532851074
...
4
SCREW HUS-532750634
...
66
SCREW HUS-532850999
...
13
NEEDS DESCRIPTION HUS-532413535
...
57
BOLT 3/8-16X1-1/8 HUS-532150406
...
15
NUT.LOCK.5/16-18 HUS-532751153
...
33
NEEDS DESCRIPTION HUS-532413536
...
30
NEEDS DESCRIPTION HUS-532413511
...
60
NEEDS DESCRIPTION HUS-532199268
...
54
Washers HUS-596238701
...
42
SCREW.HWH.13-16-5.8.BZP HUS-532194189
...
8
RIVET HUS-532199697
...
28
NEEDS DESCRIPTION HUS-532413510
...
14
STUD.QUICK.ADJUST HUS-532199255
...
6
CABLE.MZR.47.75.SNAP-IN.PU.L HUS-532425923
...
26
NEEDS DESCRIPTION HUS-532413509
...
53
BOLT.HD.HEAD.3/8-24X2.50 (2 2) HUS-532191760
...
20
NEEDS DESCRIPTION HUS-532400135
...
17
NEEDS DESCRIPTION HUS-532400136
...
1
NEEDS DESCRIPTION HUS-532400604
...
61
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
27
BOLT SHOULDER HUS-532401369
...
11
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
65
NEEDS DESCRIPTION HUS-532404008
...
32
NEEDS DESCRIPTION HUS-532401402
...
10
BRACKET.ADJ.3POS.GREY HUS-532413534
...
47
BLADE.SWEPT.WING.45CM.H.TREAT HUS-583250401
...
41
NEEDS DESCRIPTION HUS-532413514
...
67
WIRE TIE HUS-532007192
