Husqvarna R 18 AWD (966414101) (2010-03) Ride Mower

Model: R 18 AWD (966414101) (2010-03)

Back To Assemblies

Save Part Not Listed?
product name

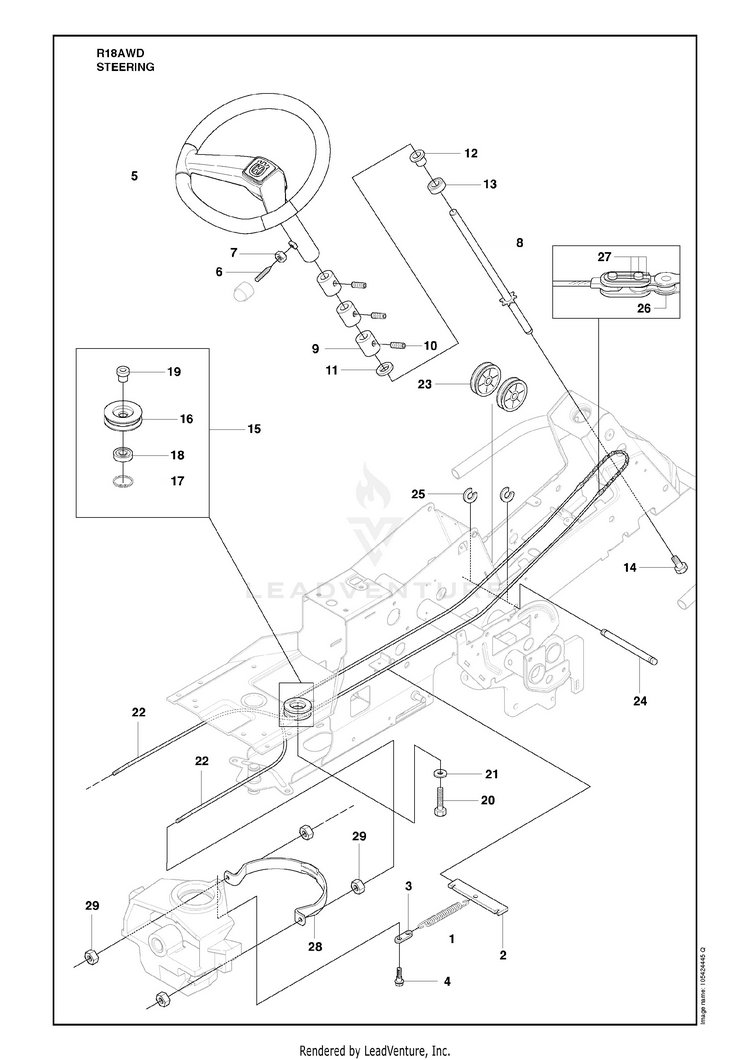

Steering

...
...
1
SPRING HUS-506671901
...
2
Brackets HUS-590735401
...
3
CONNECTOR HUS-506670801
...
4
BOLT HUS-506597401
...
5
STEERING WHEEL HUS-544375202
...
6
SCREW HUS-728745505
...
7
NUT HUS-731231801
...
8
ROD STEERING ASSY HUS-535499501
...
9
DRIVER STEERING WHEEL HUS-587080901
...
10
Screw HUS-728844305
...
11
WASHER HUS-506863601
...
12
SPACER HUS-506887801
...
13
BALL BEARING 6004-2RS1 HUS-738210404
...
14
BOLT HUS-506570104
...
15
RP PULLEY HUS-506500903
...
16
ROLLER HUS-535424101
...
17
CIRCLIP SGH 47 HUS-735314010
...
18
BALL-BEARING 6204-2RS HUS-738220419
...
19
BUSHING HUS-506500802
...
20
BOLT HUS-506675402
...
21
WASHER HUS-734117441
...
22
WIRE ASSY HUS-501604804
...
23
ROLLER HUS-506522401
...
24
SHAFT HUS-506539404
...
25
RETAINING RING HUS-735311420
...
26
STEERING CHAIN HUS-506554601
...
27
LINK HUS-506554701
...
28
WIRE GUIDE HUS-544427301
...
29
Nut HUS-731232001
