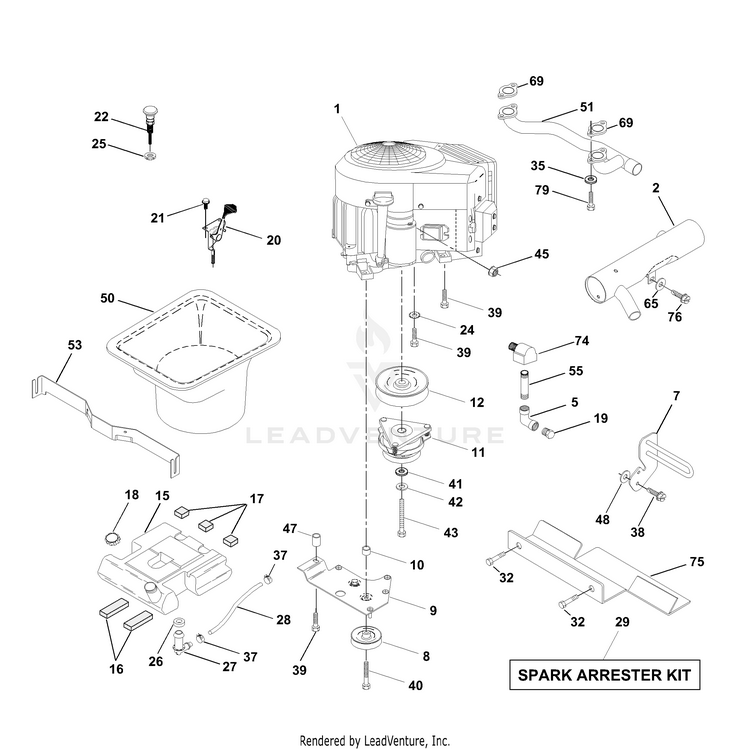

Husqvarna QPGT22H46B (2000) Tractor

Model: QPGT22H46B (2000)

Back To Assemblies

Save Part Not Listed?
product name

Engine

...
...
2
Muffler Side HUS-161063
...
5
Elbow STD 90 Degree 3/8 - 18 NPT HUS-13200300
...
7
Muffler Assembly Guard HUS-151396
...
8
Pulley V-Idler HUS-121361X
...
9
Keeper Asm. Belt Engine VGT96 HUS-150828
...
10
Bushing HUS-105432X
...
11
Clutch Electric HUS-140923
...
12
Pulley Engine VGT Elect Clutch HUS-143996
...
15
Tank Fuel Rear 3.50 YT/GT 96 HUS-151346
...
16
Pad Spacer HUS-109227X
...
17
Pad Spacer HUS-106082X
...
18
Cap Asm Fuel W/Sym Vented HUS-140527
...
19
Plug Oil Drain (Order From Engine Manufacturer) HUS-13290300
...
20
Control Throttle HUS-143885
...
21
Screw Hex Thd Cut 1/4 - 20 X 5/8 HUS-17720410
...
22
Control Choke HUS-132781
...
24
Washer Ext Tooth 3/8 HUS-11050600
...
25
Nut , Keps 3/8-24 UNF HUS-73920600
...
26
Bushing HUS-3645J
...
27
Stem Tank Fuel HUS-139277
...
28
Fuel Line HUS-7834R
...
29
Spark Arrester Kit HUS-132920
...
32
Screw Thdrl 5/16-18 x 1/2 HUS-17490508
...
35
Washer Lock Hvy HLCL Spr 5/16 HUS-10040500
...
37
Clamp Hose HUS-123487X
...
38
Screw 3/8-16 x 1-1/4 HUS-17060620
...
39
Screw TT 3/8-16 x 2-1/4 UNC HUS-17490636
...
40
Screw TT 3/8-16 x 4 UNC HUS-17490664
...
41
Washer 1-1/2 OD X 15/32 ID X .250 HUS-126197X
...
42
Washer Lock 7/16 HUS-10040700
...
43
Bolt, Hex 7/16-20 x 4-1/4 5 Ga. 1.38 HUS-150280
...
45
Nut Keps Hex 1/4-20 UNC HUS-73510400
...
47
Spacer Engine CV22 Round PM HUS-142040
...
48
Washer 13/32 x 1-1/4 x 7 Ga. HUS-19132007
...
50
Duct Air Intake HUS-161862
...
51
Manifold VGT HUS-165986
...
53
Rod Support Hood Duct HUS-161829
...
55
Nipple, Pipe 3/8 NPT x 4-1/2 HUS-13280336
...
65
Washer 13/32 x 1 x 14 Ga. HUS-19131614
...
69
Gasket HUS-165391
...
74
Elbow Street Brass HUS-162295
...
75
Shield Heat Intek VGT HUS-163776
...
76
Screw Hexwsh Thdrl 3/8-16 x 3/4 HUS-17000612
...
79
Screw Hex Hd Cap 5/16-18 x 3/4 HUS-71070512
