Husqvarna QPGT22H46A (2000) Tractor

Model: QPGT22H46A (2000)

Back To Assemblies

Save Part Not Listed?
product name

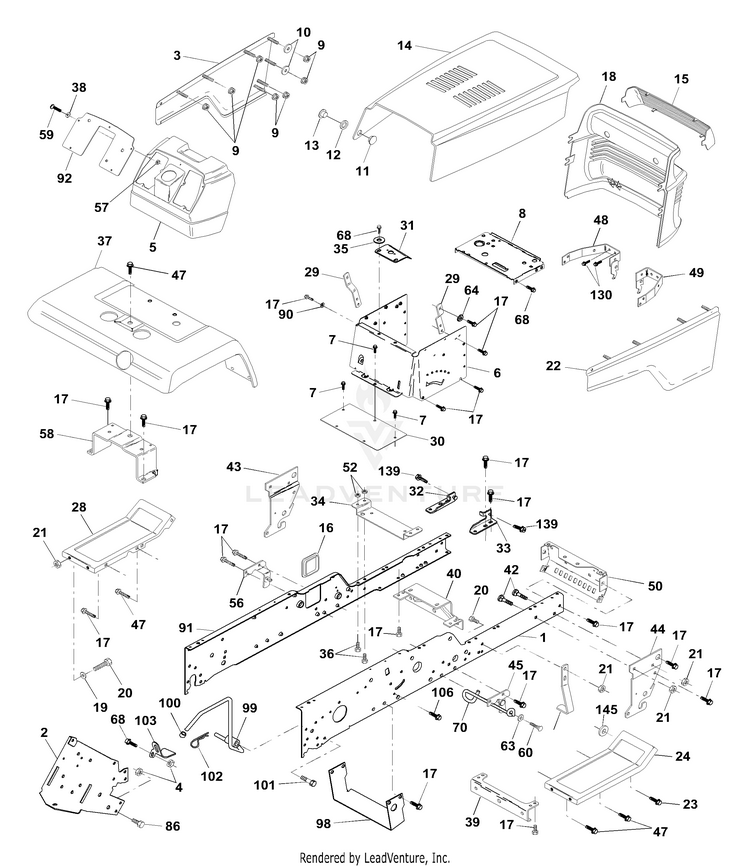

Chassis And Enclosures

...
...
1
Rail, Frame RH HUS-150253
...
2
Drawbar, Gt HUS-140506
...
3
Panel Asm., Side LH HUS-136671X428
...
4
Nut, Lock Hex 7/16 Unc HUS-73680700
...
5
Dash, Plastic Black HUS-170119
...
6
Dash, Lower Vgt One-Piece HUS-157882
...
7
Screw, Thd Cut 1/4-20 x 1/2 HUS-17720408
...
8
Support, Battery HUS-145166
...
9
Nut, Pal HUS-108067X
...
10
Washer 9/32 x 1-1/4 x 16 HUS-19092016
...
11
Rivet Ratchet Male HUS-137270
...
12
Washer Nylon HUS-137269
...
13
Rivet Ratchet Female HUS-137271
...
14
Hood, Asm Pnt HUS-136673X428
...
15
Lens, Clip Asm, Bar, Clear HUS-136374X599
...
16
Cover, Access HUS-121794X
...
17
Screw 3/8-16 x 3/4 HUS-17000612
...
18
Grille HUS-136373X428
...
19
Washer 13/32 x 13/16 x 12 Ga. HUS-19131312
...
20
Bolt, Fin Hex 3/8-16 x 1 HUS-74760616
...
21
Nut, Crownlock 3/8-16 Unc HUS-73800600
...
22
Panel Asm., Side RH HUS-136670X428
...
23
Screw, Thdrol 3/8-16 x 1 Ty-Tt HUS-17490616
...
24
Footrest, RH HUS-145243X428
...
28
Footrest, LH HUS-145244X428
...
29
Bracket, Support Dash HUS-145349
...
30
Saddle, Hydro 1995 HUS-145052
...
31
Bracket Support HUS-161419
...
32
Bracket Asm., Frame Pivot Lh HUS-161327
...
33
Bracket Asm., Frame Pivot Rh HUS-161326
...
34
Bracket, Engine Support Rear HUS-142131
...
35
Washer 11/32 x 11/16 x 16 Ga. HUS-19111116
...
36
Bolt, Fin Hex 5/16-18 x 3/4 HUS-74780512
...
37
Fender, Pnt. HUS-167287X428
...
38
Washer 9/32 x 3/4 x 16 HUS-19091216
...
39
Bracket, Axle Front HUS-136961
...
40
Bracket, Support Axle/Engine HUS-156111
...
42
Bolt RDHD SQNK 3/8-16unc x 1 HUS-72140608
...
43
Bracket, Spnsn Front Lh HUS-136939
...
44
Bracket, Spnsn Front Rh HUS-136940
...
45
Bracket Asm., Susp Chassis Rh HUS-154913
...
47
Screw Thdrol 3/8-16 x 1/2 HUS-17490608
...
48
Bracket Asm Hood Lh HUS-157105
...
49
Bracket Asm Hood Rh HUS-157107
...
50
Bracket, Chassis Front HUS-152728
...
52
Nut, Crownlock 5/16-18 HUS-73680500
...
56
Bracket Asm., Susp Chassis Lh HUS-154914
...
57
Nut Keps Blk Hex 1/4-20 HUS-73640400
...
58
Bracket Asm., Fender HUS-137113
...
59
Screw Mach Cr 1/4-20 x 3/4 HUS-74180412
...
60
Screw Thdrol 3/8-16 x 1-1/4 HUS-17490620
...
63
Washer 13/32 x 1 x 14 Ga. HUS-19131614
...
64
Washer Serrated Disc 13/32 x 1 HUS-144283
...
68
Screw, Thdrol 5/16-18 x 1/2 HUS-17490508
...
70
Guide, Belt Mid Span HUS-137159
...
84
Stop, Over Center Mower HUS-142992
...
86
Bolt, Fin Hex 7/16-14 Unc x 1 HUS-74760716
...
90
Washer, Lock External Tooth 3/8 HUS-11050600
...
91
Rail, Frame Lh HUS-170755
...
92
Plate, Silkscreen Dash HUS-170086X011
...
98
Bracket, Chassis Skid HUS-140503
...
99
Rod By Pass HUS-140871
...
100
Cap By Pass Rod HUS-124236X
...
101
Screw Thdrol 3/8-16 x 1-3/4 HUS-17490628
...
102
Retainer, Spring HUS-4497H
...
103
Lock By Pass/Bracket HUS-142273
...
106
Screw, Thdrol Hex Head Zinc Mwr HUS-138776
...
130
Screw Hw Hd Hi-l Lo #13-16 x 3/4 HUS-164863
...
139
Bolt Shoulder 5/16-18 HUS-161330
...
145
Washer Flat 13/32 x 7/8 x 14 Ga. HUS-19131414
...
xx
Plug, Hole HUS-8022J
