Husqvarna QP20H46B (2000) Tractor

Model: QP20H46B (2000)

Back To Assemblies

Save Part Not Listed?
product name

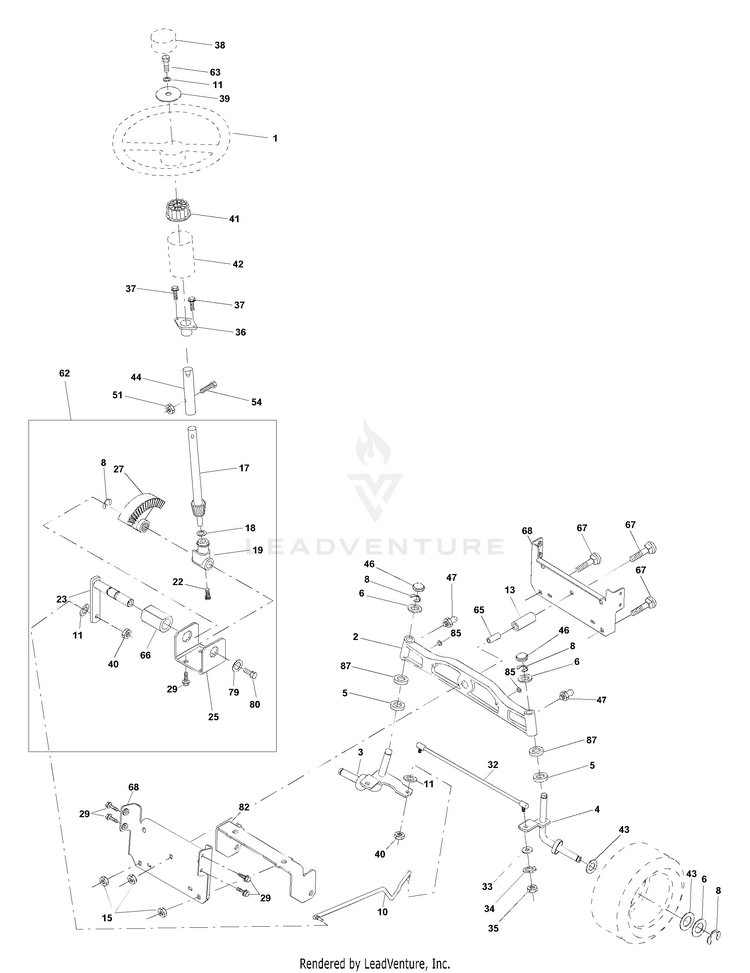

Steering Assembly

...
...
1
Wheel Steering HUS-159944X428
...
2
Axle Cast Lt Machined HUS-165854
...
3
Spindle Asm LH HUS-169840
...
4
Spindle Asm RH HUS-169839
...
5
Bearing Race Thrust Harden HUS-6266H
...
6
Washer 25/32 X 1-5/8 X 16 Ga HUS-121748X
...
8
Ring Klip #t5304-75 HUS-12000029
...
10
Link Drag HUS-169832
...
11
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
13
Spacer Brg Axle Front HUS-136518
...
15
Nut Hex Flange Lock HUS-145212
...
17
Shaft Asm Strg Private Label HUS-156546
...
18
Washer Thrust 515x 750x 033 HUS-57079
...
19
Support Shaft HUS-160395
...
22
Screw Hex Wsh Hd Torx HUS-165857
...
23
Shaft Asm Pittman HUS-165851
...
25
Bracket Steering HUS-154406
...
27
Gear Sector 22 Teeth HUS-136874
...
29
Screw 3/8-16x3/4 HUS-17060612
...
32
Rod Tie HUS-171888
...
33
Washer 11/32 x 3/4 x 16 Ga. HUS-19111216
...
34
Washer Lock Hry Hlcl Spr 5/16 HUS-10040500
...
35
Nut Crownlock 5/16 - 24 UNF HUS-73540500
...
36
Bushing Strg HUS-155099
...
37
Screw TT #32.5 x 5 x 3/8 Flange HUS-152927
...
38
Cap Wheel Steer HUS-159946X428
...
39
Washer 13/32 x 1-1/20 x 11 Ga HUS-19132411
...
40
Nut Lock Center 3/8-24 Unf HUS-7810H
...
41
Adaptor Wheel Strg HUS-159945
...
42
Boot Dash Steering HUS-145054X428
...
43
Washer 25/32 X 1 1/4 X 16 Ga HUS-121749X
...
44
Extension Steering Non-adjust HUS-153720
...
46
Cap Spindle Fr Top Blk HUS-121232X
...
47
Fitting Grease HUS-6855M
...
51
Nut Lock Hex W/Ins 5/16-18 UNC HUS-73800500
...
54
Bolt Fin Hex 5/16-18 UNC x 1-1/4 HUS-74780520
...
62
Steering Assembly HUS-167902
...
63
Bolt Fin Hex 3/8-16 UNC x 1 Gr. 5 HUS-74780616
...
65
Spacer Brace Axle HUS-160367
...
66
Bearing Arm Pittm-an HUS-154404
...
67
Bolt Rdhd Sqn 3/8-16 x 2-1/4 HUS-72140618
...
68
Brace, Axle HUS-169827
...
79
Washer 13/32 x 1-1/4 x 12 Ga. HUS-19132012
...
80
Bolt Hex Nylon 3/8-16 x 3/4 HUS-74950612
...
82
Bracket Susp Chassis Front HUS-169835
...
85
Fastner Christmas Tree HUS-133835
...
87
Washer Flat .781 x 1-1/2 x .14 HUS-173966
