Husqvarna QGT2046B (2000) Tractor

Model: QGT2046B (2000)

Back To Assemblies

Save Part Not Listed?
product name

Mower Deck

...
...
1
Deck Asm., Mower 46" HUS-164210
...
3
Bracket Asm., Sway Bar HUS-138457
...
5
Retainer Spring HUS-4939M
...
6
Arm, Suspension, Rear (Sway Bar) HUS-130832
...
8
Bolt, Patched 3/8-24 x 1-1/4 Gr. 8 HUS-850857
...
9
Washer, Lock Hvy., Unplated 3/8 HUS-10030600
...
10
Washer, Hard Blade, Mower Vented HUS-140296
...
11
Blade Hi-Perf 46" HUS-170698
...
12
Bearing, Ball, Mandrel #6204 HUS-129895
...
13
Shaft Asm. w/Lower Bearing (Includes Key No. 12) HUS-137553
...
14
Housing, Mandrel HUS-137152
...
15
Bearing, Ball, Mandrel HUS-110485X
...
16
Stripper, Mower Round HUS-140329
...
18
Bolt, Carriage 5/16-18 x 5/8 HUS-72140505
...
19
Bolt, Hex Head, Shoulder 5/16-18 HUS-132827
...
20
Baffle, Vortex Mower 46" HUS-145055
...
21
Nut, Crownlock 5/16-18 UNC HUS-73680500
...
22
Stiffiner, Bracket HUS-134753
...
23
Bracket, Deflector HUS-131267
...
24
Cap, Sleeve HUS-105304X
...
25
Spring, Torsion, Deflector HUS-149287
...
26
Nut, Push HUS-110452X
...
27
Shield, Deflector Mower HUS-166883
...
28
Washer 11/32 x 5/8 x 16 Ga. HUS-19111016
...
29
Rod, Hinge HUS-131491
...
30
Screw, Thdroll Washer Head HUS-157722
...
31
Washer, Spacer Mower Vented HUS-129963
...
32
Pulley, Mandrel HUS-153531
...
33
Nut, Flg. Top Lock Cntr. 9/16 HUS-137266
...
34
Anchor, Spring Deck 46" HUS-144945
...
35
Screw, Thdroll 3/8-16 x 1-3/4 Tytt HUS-17490628
...
37
Pulley, Idler, Flat HUS-131494
...
38
Keeper, Belt, Idler HUS-156085
...
39
Pulley, Idler, Driven HUS-144917
...
40
Spring, Secondary 44/46/50 Vent HUS-137273
...
41
Screw 3/8-16 x 1-1/4 HUS-17060620
...
42
Spacer, Retainer HUS-165723
...
43
Arm, Idler Secondary HUS-144949
...
44
Washer, Hardened HUS-133943
...
45
Cover, Mandrel Deck HUS-145059
...
46
Screw, Thdroll. 1/4-20 x 5/8 HUS-137729
...
47
V-Belt, Mower, Secondary HUS-144959
...
48
V-Belt, Mower, Primary HUS-139573
...
49
Nut, Crownlock 3/8-16 UNC HUS-73680600
...
50
Bolt, Carriage 3/8-16 x 1-1/2 Gr. 5 HUS-72110612
...
51
Washer Felt HUS-153390
...
52
Pulley Idler Flat HUS-165888
...
58
Rod Brake 46" HUS-165906
...
59
Guide Bolt 46" Mower Dr HUS-157034
...
60
Arm Asm Brake 46" HUS-156722
...
61
Bolt Shld 5/16-18 HUS-161315
...
62
Spring Return HUS-131870
...
67
Knob Rd 3/8-16 Plstc Thds Blk HUS-106932X
...
69
Nut Hex Jam 3/8-16 Unc HUS-73350600
...
72
Washer 13/32 x 1 x 16 Ga. HUS-19131316
...
82
Retainer Spring HUS-4497H
...
85
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
101
Cover Mulcher 46" Black HUS-145579
...
102
Screw Truss Hd Phil 10-24 x 5/8 HUS-71161010
...
103
Washer Lock #10 HUS-10071000
...
104
Washer #10 HUS-19061216
...
105
Latch Asm Bagger HUS-130758
...
106
Nut Weld .327/.304 #10-24 HUS-2029J
...
116
Bolt, Shoulder HUS-4898H
...
117
Gauge Wheel HUS-165746
...
118
Nut, Centerlock 3/8-16 UNC HUS-73930600
...
119
Washer 3/8 x 7/8 x 14 Ga. HUS-19121414
...
126
Arm, Idler, Primary Deck 46" HUS-156472
...
127
Pulley, Idler, V-Groove Dim. 4.25 HUS-146763
...
129
Washer 13/32 x 2-3/8 x 8 Ga HUS-19133808
...
130
Bolt Carriage Idler HUS-165891
...
131
SPring Return Idler HUS-169022
...
132
Arm Spring Brake Mower HUS-165890
...
133
Bracket Anchor Cable 46" HUS-165904
...
134
Screw Thdrol 5/16-18 x 3/4 HUS-17490512
...
135
Retainer Spring Yellow HUS-165898
...
136
Washer 9/32 x 3/4 x 16 Ga HUS-19091216
...
151
Bracket Clutch Cable HUS-169670
...
152
Clutch Cable 38"/46" HUS-170328
...
153
Washer Flat 3/8" Type B HUS-169674
...
154
Spring Retainer HUS-169675
...
155
Spring Retension Q HUS-169671
...
156
SPacer Clutch Cable HUS-169672
...
157
Rod Clutch Cable 3/8" HUS-169669
...
158
Screw Hex Thd Cut 1/4-20 x 5/8 HUS-17720410
...
xx
Mandrel Asm 44"/46"/50" Service HUS-143651
...
xx
Blade Mulch 46" HUS-152443
...
xx
Deck Complete (Std. Deck-Order separately mulch plate and gauge wheel components Key Nos. 101-106 and 116-118) HUS-172497

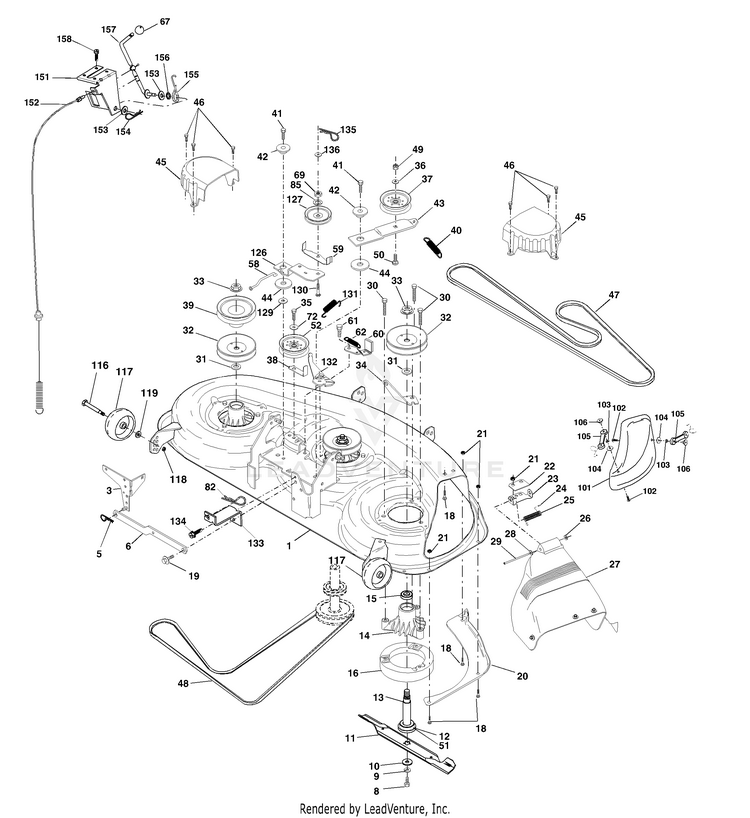

Schematic Image Zoomed
