Husqvarna QGT2046B (2000) Tractor

Model: QGT2046B (2000)

Back To Assemblies

Save Part Not Listed?
product name

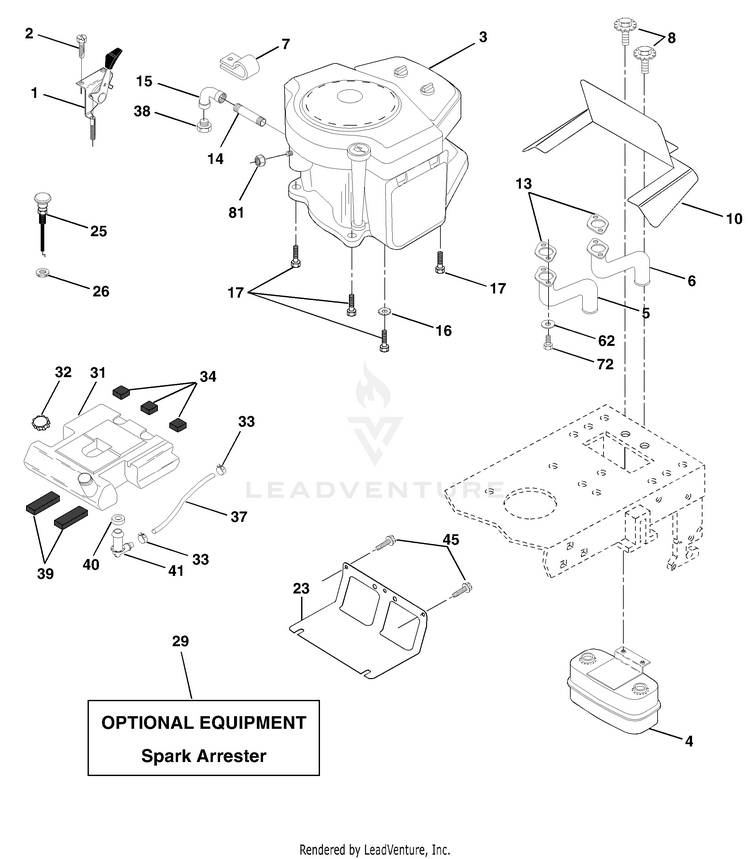

Engine

...
...
1
Control, Throttle HUS-148875
...
2
Screw, Hex Head, Thread Cutting 1/4-20 x 5/8 HUS-17720410
...
4
Muffler HUS-149723
...
5
Tube, Manifold, LH HUS-159955
...
6
Tube, Manifold, RH HUS-160589
...
7
Clip Insulated HUS-126470X
...
8
Bolt 5/16-18 UNC x 3/4 w/Sems HUS-150176
...
10
Shield, Browning HUS-162797
...
13
Muffler Gasket HUS-165391
...
14
Nipple, Pipe 3/8 NPT x 4-1/2 HUS-13280336
...
15
Elbow, Standard 90° 3/8-18 NPT HUS-13200300
...
16
Washer, Lock, External Tooth 3/8 HUS-11050600
...
17
Screw Thdrol 3/8-16 x 1-1/2 HUS-17490624
...
23
Shield, Browning / Debris Guard HUS-169837
...
25
Choke Control HUS-145996
...
26
Nut, Keps 3/8-24 UNF HUS-73920600
...
29
Kit, Spark Arrestor HUS-137180
...
31
Tank Fuel 3 50 Rear HUS-151346
...
32
Cap Asm Fuel W/sym Vented HUS-140527
...
33
Clamp, Hose HUS-123487X
...
34
Pad, Spacer HUS-106082X
...
37
Line, Fuel HUS-8543R
...
39
Pad, Idler HUS-109227X
...
40
Bushing HUS-3645J
...
41
Stem, Fuel Tank HUS-139277
...
45
Screw Hex wsh Thdrol 3/8-16 x 3/4 HUS-17000612
...
62
Washer Lock 5/16 HUS-10040500
...
72
Screw Hex Hd Cap 5/16-18 x 3/4 HUS-71070512
...
81
Nut Keps Hex 1/4-20 Unc HUS-73510400
