Husqvarna QGT2046B (2000) Tractor

Model: QGT2046B (2000)

Back To Assemblies

Save Part Not Listed?
product name

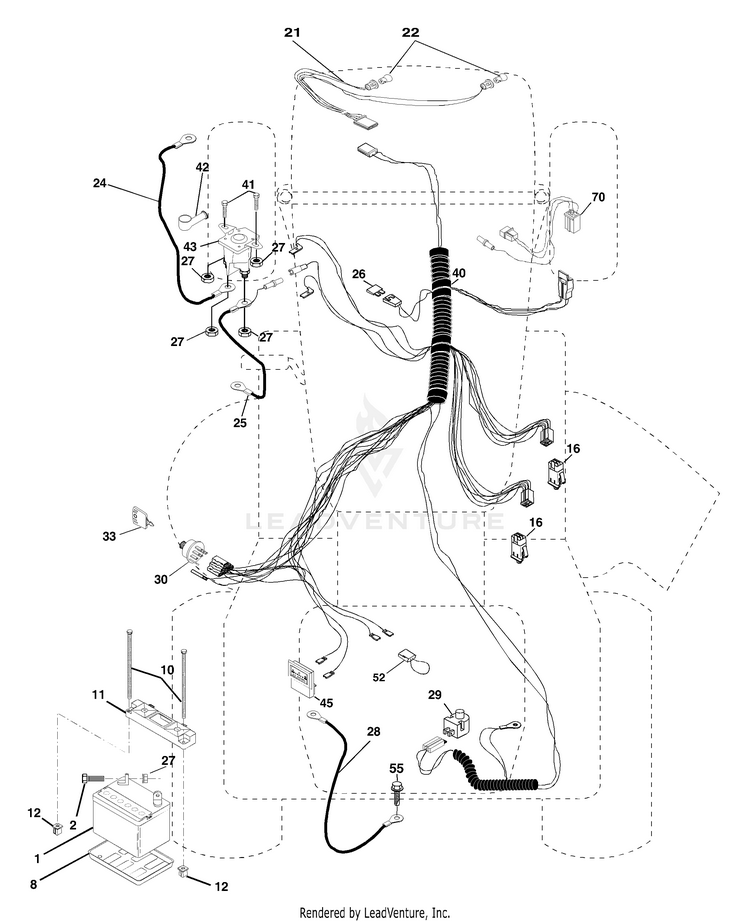

Electrical

...
...
1
Battery, 12 Volt, 28 Amp HUS-163465
...
2
Bolt, Hex Head 1/4-20 UNC x 3/4 HUS-74760412
...
8
Tray, Battery HUS-7603J
...
10
Bolt, Battery Front 1/4-20 x 7.5 Zinc HUS-145211
...
11
Holddown Battery Dash Mount HUS-150109
...
12
Nut, Push Nylon 1/4" Battery Front HUS-145769
...
16
Switch Interlock Push-In HUS-153664
...
21
Harness, Light HUS-166181
...
22
Bulb, Light HUS-4152J
...
24
Cable, Battery, 6 Gauge, 11", Red HUS-4799J
...
25
Cable, Battery HUS-146148
...
26
Fuse, 15 Amp HUS-166180
...
27
Nut, Hex, Keps 1/4-20 UNC HUS-73510400
...
28
Cable, Ground, 6 Gauge, 12", Black HUS-145491
...
29
Switch, Plunger HUS-121305X
...
30
Switch, Ignition, Push-In HUS-163968
...
33
Key, Ignition HUS-140401
...
40
Harness, Ignition HUS-170217
...
41
Bolt, Hex, Fin. 1/4-20 x 1/2 HUS-71110408
...
42
Cover, Terminal, Red HUS-131563
...
43
Solenoid HUS-145673
...
45
Ammeter, Rectangular HUS-122822X
...
52
Protection Wire Loop (Hour Meter) HUS-141940
...
55
Screw, Thdrol 5/16-18 x 1/2 TYT HUS-17490508
...
70
Harness, Engine HUS-170247
