Husqvarna QGT2046A (2000) Tractor

Model: QGT2046A (2000)

Back To Assemblies

Save Part Not Listed?
product name

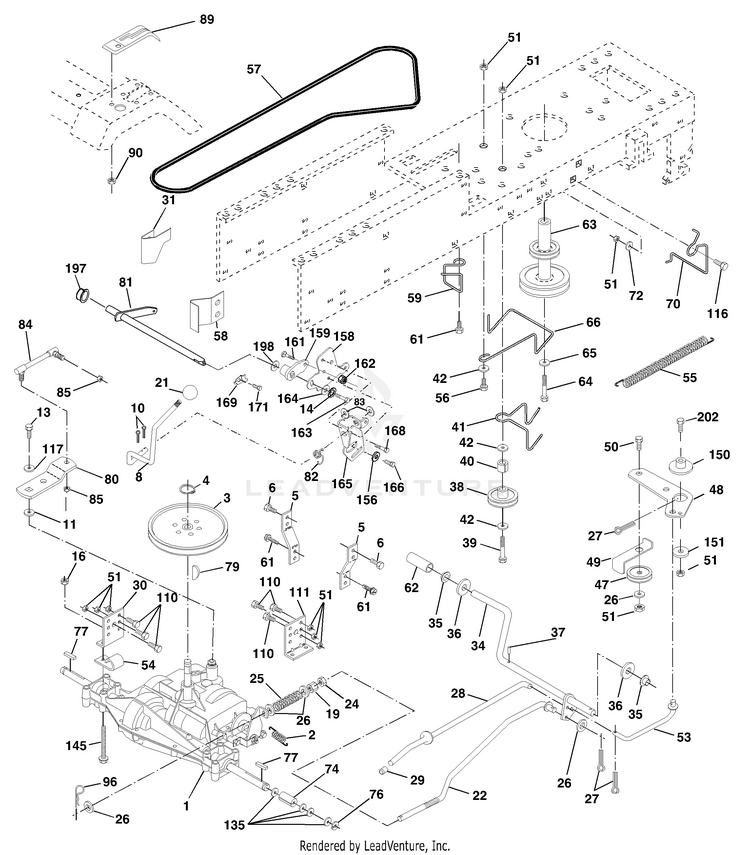

Drive

...
...
2
Spring, Brake Return HUS-146682
...
3
Pulley, Transaxle (Driven) HUS-121327X
...
4
Ring, Retainer HUS-12000004
...
5
Strap, Torque HUS-123787X
...
6
Screw, 5/16-18 x 3/4 HUS-17060512
...
8
Rod Shift Fender Adjust Yt HUS-166020
...
10
Pin, Cotter 1/8 x 1 HUS-76020416
...
11
Washer, Shift Plate HUS-105701X
...
13
Bolt 1/4-28 UNF Gr. 8 w/Patch HUS-74550412
...
14
Washer Lock Hvy Helical HUS-10040400
...
19
Nut, Lock Hex w/Ins. 3/8-16 UNC HUS-73800600
...
21
Knob HUS-106933X
...
22
Rod, Brake HUS-145340
...
24
Nut, Hex Jam 3/8-16 HUS-73350600
...
25
Spring, Rod, Brake HUS-126909X
...
26
Washer 13/32 x 5/8 x 16 Ga. HUS-19131016
...
27
Pin, Cotter 1/8 x 3/4 HUS-76020412
...
28
Rod, Brake, Park HUS-145204
...
29
Cap, Brake Parking Black HUS-71673
...
30
Bracket, Transaxle, L.H. HUS-123780X
...
31
Keeper, Belt, Transaxle, L.H. HUS-123791X
...
34
Shaft, Foot Pedal HUS-155071
...
35
Bearing Nylon HUS-120183X
...
36
Washer 21/32 x 1 x 16 Ga. HUS-19211616
...
37
Pin, Roll 3/16 x 1 HUS-1572H
...
38
Idler, Flat HUS-131494
...
39
Bolt Rdhd 3/8-16 Unc x 2-3/4 Gr. 5 HUS-72110622
...
40
Spacer HUS-4470J
...
41
Keeper, Idler HUS-165838
...
42
Washer 13/32 x 13/16 x 12 Ga. HUS-19131312
...
47
Pulley, Idler HUS-127783
...
48
Bellcrank Clutch Grnd Drv Stl HUS-154407
...
49
Retainer, Belt HUS-123205X
...
50
Bolt, Hex 3/8-16 x 1-1/2 HUS-74760624
...
51
Nut, Crownlock 3/8-16 HUS-73680600
...
53
Link, Clutch HUS-105710X
...
54
Clip, Insulator HUS-126471X
...
55
Spring, Return, Clutch HUS-105709X
...
56
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
57
V-Belt, Drive HUS-163817
...
58
Keeper, Belt, Transaxle, R.H. HUS-123792X
...
59
Keeper Belt Centerspan HUS-169595
...
61
Screw 3/8-16 x 3/4 HUS-17060612
...
62
Cover, Foot Pedal HUS-8883R
...
63
Pulley, Engine HUS-140186
...
64
Bolt, Hex 7/16-20 x 4-1/4 HUS-71170764
...
65
Washer, Lock Hvy Hlcl Spr 7/16 HUS-10040700
...
66
Keeper Belt Engine F-proof HUS-154778
...
70
Keeper Belt Engine HUS-162848
...
72
Washer 13/32 x 1-1/4 x 12 Ga. HUS-19132012
...
74
Spacer, Split HUS-108097X
...
76
E-Ring HUS-12000053
...
77
Key Square 1/4 x 2 HUS-9396E
...
79
Key, Woodruff #9 HUS-2228M
...
80
Shift Arm HUS-123794X
...
81
Shaft Asm Cross Tapered P820.23" HUS-165601
...
82
Spring, Torsion HUS-123782X
...
83
Washer 17/32 x 3/4 x 16 Gauge HUS-19171216
...
84
Link Transaxle P820/23" Zinc HUS-166230
...
85
Nut Lock Center 1/4-28 Fnthd HUS-150360
...
89
Console, 6 Speed HUS-139992X428
...
90
Nut, Washer Head, Self-Thread 1/4 HUS-124346X
...
96
Retainer Spring 1" Zinc/cad. HUS-4497H
...
110
Bolt Hex 3/8-16 x 3/4 HUS-74760612
...
111
Bracket, Transaxle, R.H. HUS-123776X
...
116
Bolt Rdhd Sq Neck 3/8-16 x 1/25 HUS-72110610
...
117
Washer 9/32 x 3/4 x 16 Gauge HUS-19091216
...
135
Washer 1-1/32 x 1-5/8 x 16 Gauge HUS-123800X
...
145
Bolt Hex Flghd 5/16-18 x Gr. 5 HUS-74490540
...
150
Bushing Bellcrank HUS-165850
...
151
Washer 13/32 x 2 x 10 Ga. HUS-19133210
...
156
Washer Srrted 5/16 ID x 1.125 HUS-166002
...
158
Bracket Shift Mount HUS-165589
...
159
Hub Tapered Flange Shift Lt HUS-165494
...
161
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5 HUS-72140406
...
162
Nut Crownlock 1/4-20 Unc HUS-73680400
...
163
Bolt Hex Fin 1/4-20 Unc x 1 Gr 5 HUS-74780416
...
164
Washer 5/8 x .281 x 10 Ga HUS-19091010
...
165
Bracket Pivot Lever HUS-165623
...
166
Screw 5/16-18 x 5/8 HUS-166880
...
168
Bolt Shoulder 5/16-18 x .561 HUS-165492
...
169
Plate Fastening Lt HUS-165581
...
171
Screw Thdrol 3/8-16 x 1/2 Ty-Tt HUS-17490608
...
197
Nyliner Snap-In 5/8" Id HUS-169613
...
198
Washer Nyl 7/8 Id x .105 HUS-169593
...
202
Bolt Carr Sh 3/8-16 x 1-1/2 Gr.5 HUS-72110612
