Husqvarna QGT2046A (2000) Tractor

Model: QGT2046A (2000)

Back To Assemblies

Save Part Not Listed?
product name

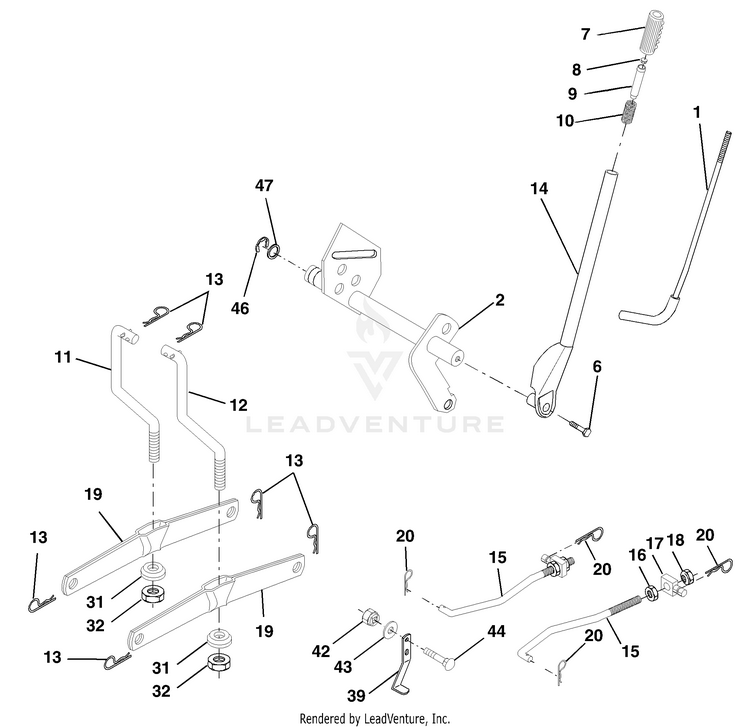

Mower Lift

...
...
1
Rod Assembly, Lever HUS-121006X
...
2
Shaft Assembly, Lift HUS-159188
...
6
Bolt, Hex Head, Fin. 3/8-16 x 1-1/2 HUS-74780624
...
7
Grip Handle HUS-109413X
...
8
Button Plunger Black HUS-124526X
...
9
Plunger Lever Lift HUS-122364X
...
10
Spring HUS-2876H
...
11
Link, Lift, LH HUS-145537
...
12
Link, Lift, RH HUS-145536
...
13
Retainer Spring HUS-4939M
...
14
Lever Assembly, Lift, RH HUS-159189
...
15
Link, Front HUS-173288
...
16
Nut, Hex, Jam 1/2-13 UNC HUS-73350800
...
17
Trunnion HUS-130171
...
18
Nut Lock W/Wsh 1/2-13 Unc HUS-73800800
...
19
Arm, Suspension, Rear HUS-139868
...
20
Retainer Spring HUS-163552
...
31
Bearing HUS-169865
...
32
Nut, Crownlock 3/8-24 HUS-73540600
...
39
Stop Over Center HUS-142992
...
42
Nut, Crownlock 3/8-16 UNC HUS-73680600
...
43
Washer 13/32 x 1 x 12 Ga. HUS-19131612
...
44
Bolt, Carriage 3/8-16 x 1.00 HUS-72240608
...
46
E-Ring HUS-12000022
...
47
Washer HUS-19292016
