Husqvarna QFT5A (2000) Tiller

Model: QFT5A (2000)

Save Part Not Listed?
product name

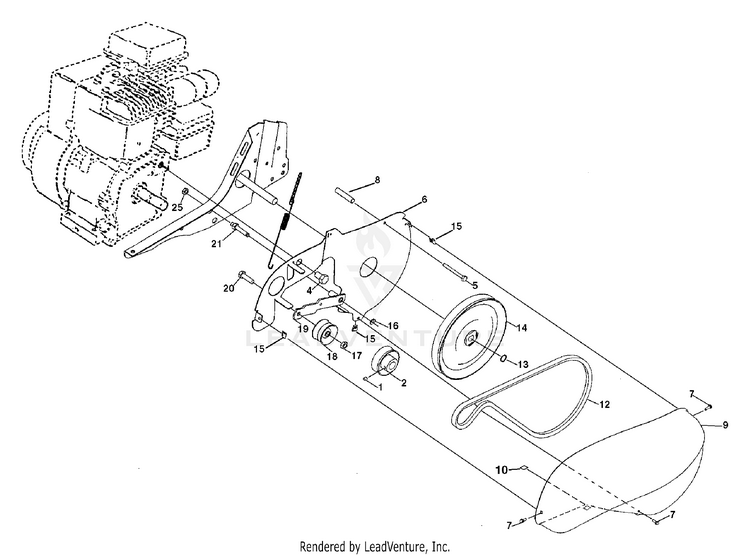

Belt Guard And Pulley Assembly

...
...
1
Screw, Set 5/16-18 x 3/8 HUS-23230506
...
2
Sheave, Engine HUS-130812
...
4
Bolt, Hex 1/2-20 x 3/4 HUS-74610812
...
5
Bolt Thd Roller 1/4-20 X 2-1/2 HUS-17490440
...
6
Shield Inner Guard Belt HUS-165770
...
7
Screw Hex Wsh Hd #8-18 x 1/2 HUS-165503
...
8
Spacer Split .523 x .718 x 2 HUS-139155
...
9
Guard, Belt HUS-165768X602
...
10
Pad, Idler HUS-109227X
...
12
V-Belt Drive HUS-9180R
...
13
Ring, Retainer HUS-12000028
...
14
Sheave, Transmission HUS-151223
...
15
Nut J Clip #8 HUS-165504
...
16
Ring, Klip HUS-12000036
...
17
Nut, Hex, Jam 3/8-16 HUS-73350600
...
18
Pulley, Idler HUS-161806
...
19
Arm, Idler HUS-162290
...
20
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
21
Shaft, Idler Arm HUS-106968X
...
25
Nut, Hex, Jam 5/16-18 HUS-73350500

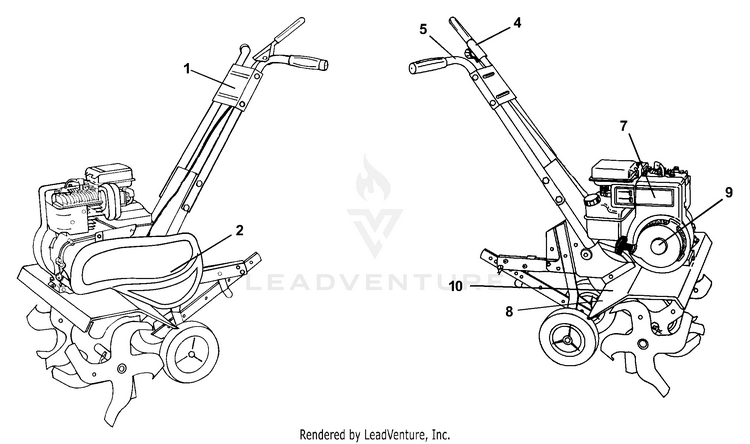

Decals

...
...
1
Decal, Logo HUS-172944
...
2
Decal, Logo HUS-172943
...
4
Decal, Tine Control HUS-110594X
...
5
Decal, Hand Placement HUS-120431X
...
7
Decal, Briggs & Stratton HUS-171803
...
8
Decal, Warning, Rotating Tines HUS-120075X
...
9
Decal, 5 HP HUS-171804
...
10
Decal, Warning HUS-162215
...
xx
Manual, Owner's (English) HUS-172993

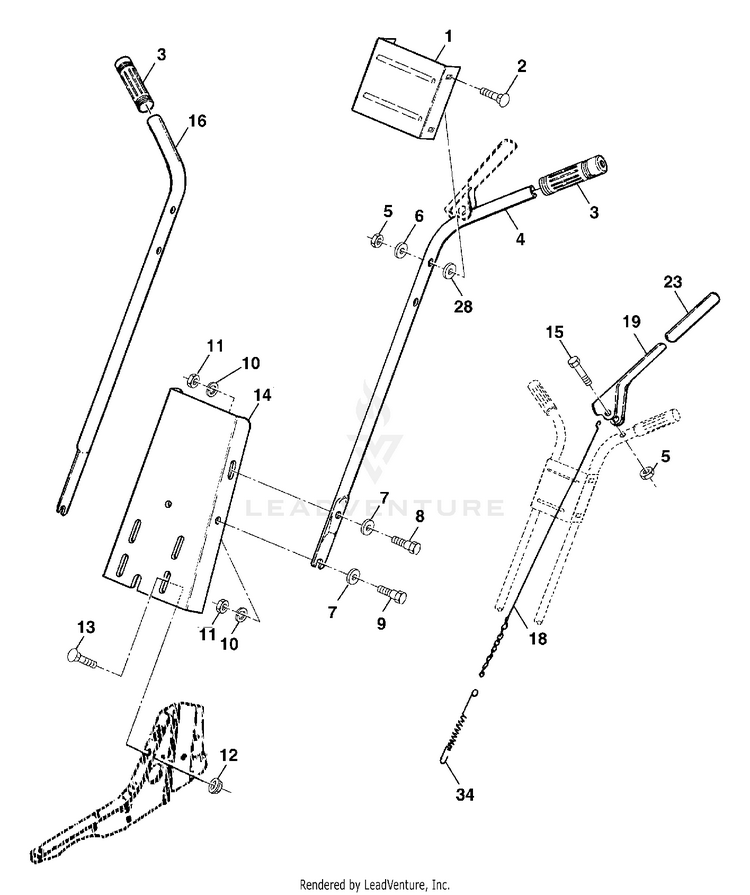

Handle Assembly

...
...
1
Bracket, Handle HUS-137176X602
...
2
Bolt, Carriage 5/16-18 UNC x 1-1/2 HUS-72140512
...
3
Grip, Handle HUS-9266R
...
4
Handle, L.H. HUS-151473
...
5
Locknut, Crown 5/16-18 HUS-73680500
...
6
Washer 11/32 x 11/16 x 16 Ga. HUS-19111116
...
7
Washer 3/8 x 7/8 x 14 Ga. HUS-19121414
...
8
Bolt, Hex Hd. 5/16-18 x 1 HUS-74760516
...
9
Bolt, Hex Hd 5/16-18 x 3/4 HUS-74760512
...
10
Washer, Lock 5/16 HUS-10040500
...
11
Nut, Hex 5/16-18 HUS-73220500
...
12
Nut, Flanged 5/16-18 HUS-98000129
...
13
Bolt, Carriage 5/16-18 x 3/4 Gr. 5 HUS-72140506
...
14
Panel, Handle HUS-9209R602
...
15
Bolt Fin Hex 5/16-18 HUS-74760524
...
16
Handle, R.H. HUS-151474
...
18
Cable Asm Clutch HUS-3067J
...
19
Lever Clutch HUS-164937
...
23
Grip Handle HUS-8206H
...
28
Washer 13/32 x 13/16 x 12 Ga. HUS-19131312
...
34
Spring HUS-3070J

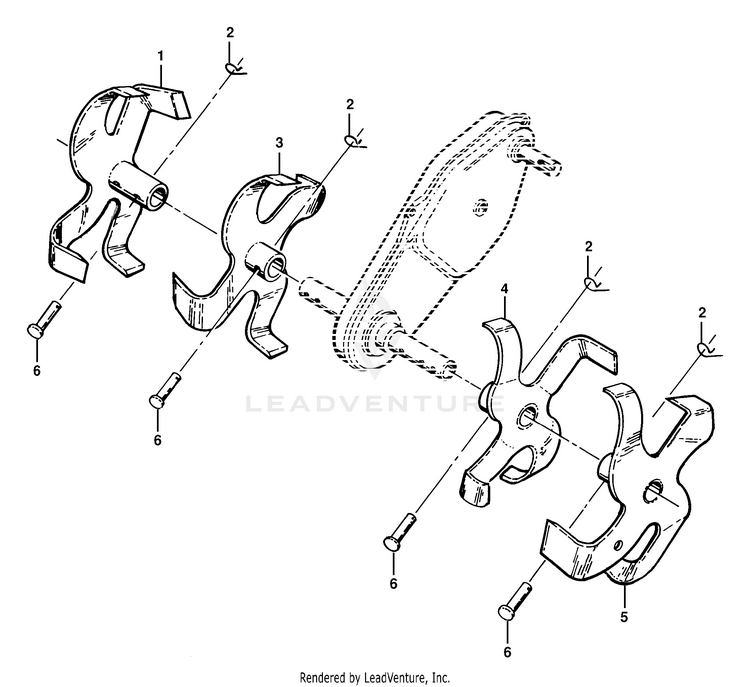

Tine Assembly

...
...
1
Tine, Outer, R.H. HUS-156926
...
2
Retainer, Spring HUS-3146R
...
3
Tine, Inner, R.H. HUS-156924
...
4
Tine, Inner, L.H. HUS-156923
...
5
Tine, Outer, L.H. HUS-156925
...
6
Pin, Clevis HUS-4929H

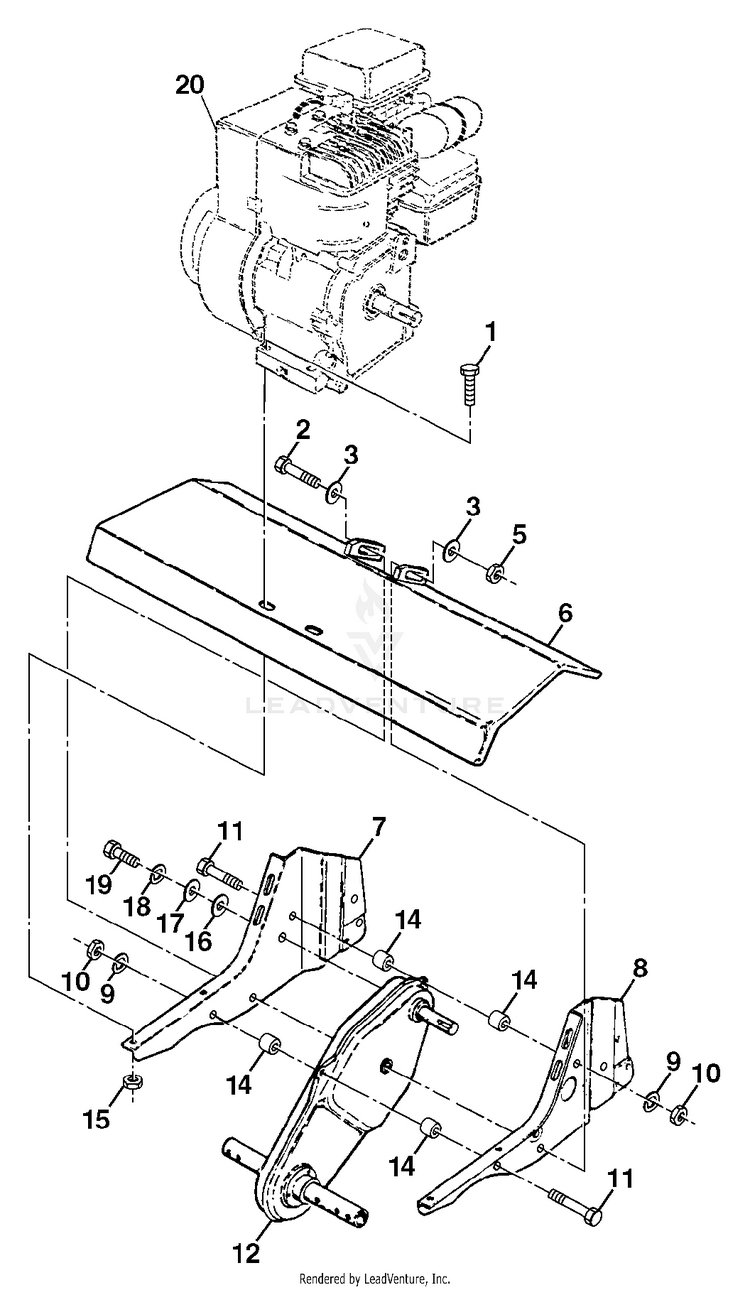

Transmission

...
...
1
Bolt, Hex 5/16-18 x 1-1/2 Gr. 2 HUS-74760524
...
2
Bolt, Hex, Fin 3/8-16 x 3-1/4 HUS-74780652
...
3
Washer 13/32 x 13/16 x 11 HUS-19131311
...
5
Locknut, Hex, w/washer 3/8-16 HUS-73800600
...
6
Shield, Tine HUS-9056R602
...
7
Bracket, Engine, R.H. HUS-165835
...
8
Bracket, Engine, L.H. HUS-165834
...
9
Washer, Lock 5/16 HUS-10040500
...
10
Nut, Hex 5/16-18 HUS-73220500
...
11
Bolt, Hex 5/16-18 x 2-3/4 HUS-74760544
...
12
Transmission HUS-151222
...
14
Spacer, Split HUS-9173R
...
15
Nut, Keps 5/16 HUS-73510500
...
16
Washer 9/32 x 7/8 x 12 Ga. HUS-19091412
...
17
Washer 9/32 x 1-1/4 x 16 Ga. HUS-19092016
...
18
Washer, Lock 1/4 HUS-10040400
...
19
Bolt, Hex 1/4-28 x 3/4 Gr. 5 HUS-74610412

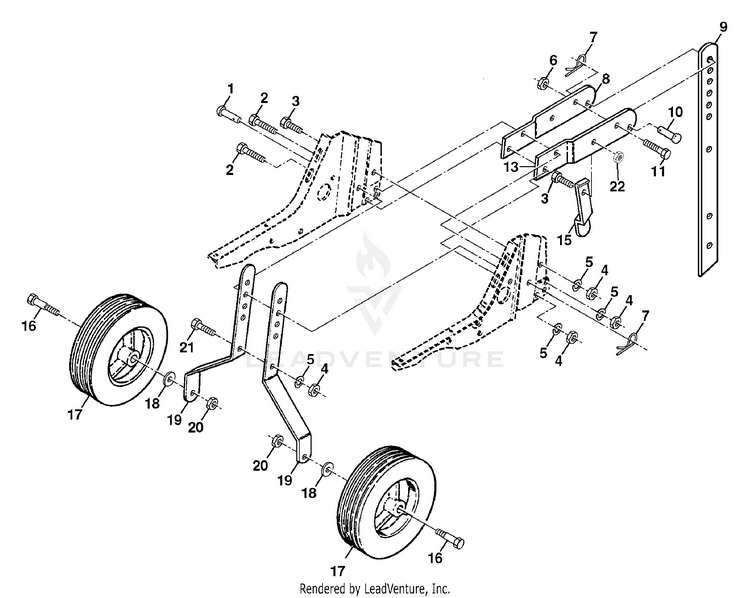

Wheel And Depth Stake Assembly

...
...
1
Pin, Clevis HUS-9194R
...
2
Bolt, Hex 5/16-18 x 1-1/4 HUS-74760520
...
3
Bolt, Hex 5/16-18 x 3/4 HUS-74760512
...
4
Nut, Hex 5/16-18 HUS-73220500
...
5
Washer, Lock 5/16 HUS-10040500
...
6
Locknut, w/washer 3/8-16 HUS-73800600
...
7
Clip, Hairpin HUS-4921H
...
8
Support, Depth Stake, R.H. HUS-1952J
...
9
Stake, Depth HUS-122233X
...
10
Pin, Clevis HUS-326J
...
11
Bolt, Hex, Fin 3/8-16 x 1-3/4 HUS-74780628
...
13
Support, Depth Stake, L.H. HUS-1951J
...
15
Spring, Stake HUS-5388J
...
16
Bolt, Shoulder HUS-121117X
...
17
Wheel HUS-9188R
...
18
Washer 13/32 x 13/16 x 11 Ga. HUS-19131311
...
19
Bracket, Wheel HUS-9190R
...
20
Locknut, Crown 3/8-16 HUS-73680600
...
21
Bolt, Hex 5/16-18 x 1 HUS-74760516
...
22
Locknut, w/insert 5/16-18 HUS-73800500
