Husqvarna QC38A (1999 & Before) Tractor

Model: QC38A (1999 & Before)

Save Part Not Listed?
product name

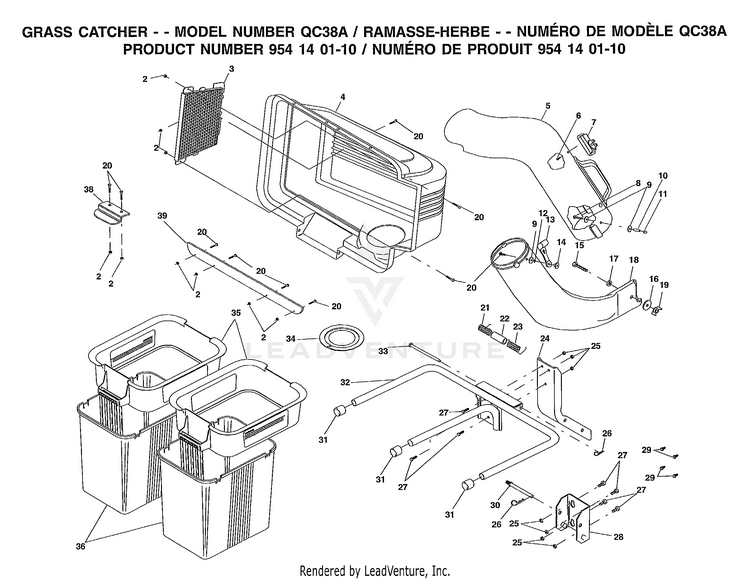

GRASS CATCHER

...
...
2
SUB= 69180 HUS-532069180
...
3
SUB= 127533 HUS-532127533
...
4
COVER ASM HUS-532171061
...
5
SUB= 139569 HUS-532139569
...
6
SCREW, SPECIAL #10-14X1/2 HUS-818021008
...
7
SUB= 140572 HUS-532140572
...
8
SCREW.PAN.HEAD HUS-874981024
...
9
WASHER 3/16X3/4X16 GA HUS-819061216
...
10
SUB= 7206J HUS-532007206
...
11
NUT.#10-24 ACORN.ZD HUS-539108086
...
12
WASHER, LOCK HUS-810071000
...
13
SUB= 109808X HUS-532109808
...
14
NUT.WELD.#10-24 HUS-532002029
...
15
Bolt, Hex Head 3/8-16 x 1-1/4 HUS-874930620
...
16
Washer 13/32 x 1 x 12 Ga. HUS-819131612
...
17
LOCKNUT 3/8-16 NLA HUS-873770600
...
18
CHUTE, LOWER HUS-532131970
...
19
SUB= 135651 HUS-532135651
...
20
Screw #10-24 x 5/8 HUS-871081010
...
21
SUB= 132796 HUS-532132796
...
22
SUB= 133235 HUS-532133235
...
23
SUB= 132983 HUS-532132983
...
24
POST.SUPPORT.BAGGER.2BIN HUS-532180925
...
25
SUB= 73690500 HUS-532063124
...
26
RETAINER SPRING HUS-532085902
...
27
HCS.5/16-18X3/4 HUS-539976934
...
28
BRACKET, MOUNTING HUS-532170053
...
29
BOLT SHOULDER HUS-532170165
...
30
SUB= 131137 HUS-532131137
...
31
Plug, Tubing End HUS-532174083
...
32
SUB= 126919X HUS-532126919
...
33
Pin, Hinge HUS-532192786
...
34
SUB= 127534 HUS-532127534
...
35
Container, Top HUS-532183286
...
36
SUB= 129586 HUS-532129586
...
38
SUB= 130895 HUS-532130895
...
39
STRIP.REINFORCEMENT HUS-532155042
...
xx
SUB= 105070X HUS-532104419
...
xx
OWNER'S MANUAL HUS-532171098

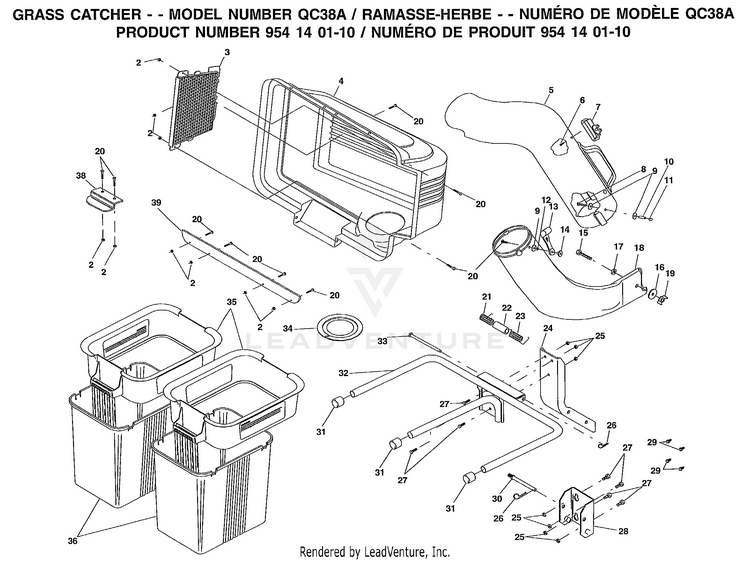

GRASS CATCHER

...
...
