product name

Husqvarna Q185H46A (2000) Tractor

Model: Q185H46A (2000)

Back To Assemblies

Save Part Not Listed?
product name

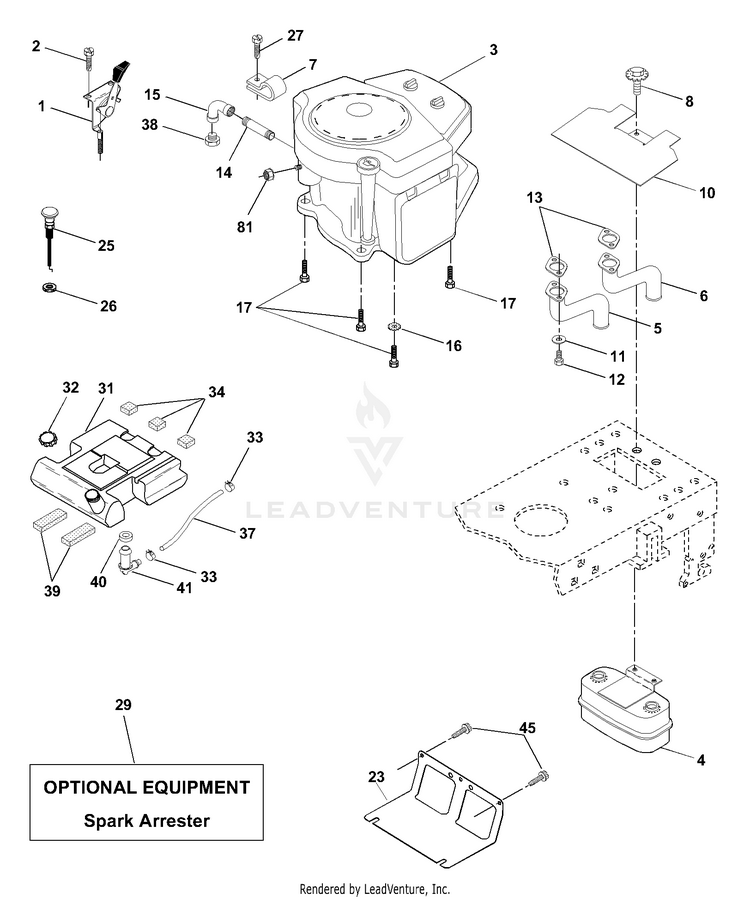

Engine

...
...
1
Control Th/ch LH Flag 35.5 HUS-141295
...
2
Screw Hex Thd Cut 1/4-20x5/8 T HUS-17720410
...
4
Muffler Exhaust HUS-149723
...
5
Exhaust Asm. Left HUS-144069
...
6
Exhaust Asm Right HUS-144068
...
7
Clamp Tube Double Engine HUS-138129
...
8
Bolt 5/16-18 UNC x 3/4 W/Sems HUS-150176
...
10
Heat Shield LT HUS-145552
...
11
Washer Lock Hvy. Helical 1/4 (Order from engine mfg.) HUS-10040400
...
12
Bolt Fin Hex 1/4-20 x 3/4 (order from engine mfg.) HUS-74780412
...
13
Gasket Muffler (order from engine mfg.) HUS-165287
...
14
Nipple Pipe 3/8 Npt X 3" HUS-13280336
...
15
Elbow Std 90 Degree 3/8-18 Npt HUS-13200300
...
16
Washer Lock Ext Tooth 3/8 HUS-11050600
...
17
Screw Thdrol 3/8-16 x 1-1/2 Tytt HUS-17490624
...
23
Shield Browning/Debris Guard HUS-169837
...
25
Control Choke HUS-145996
...
26
Nut Keps 3/8-24 UNF HUS-73920600
...
27
Screw TT Flange HUS-152927
...
29
Kit Spark Arrestor (Flat Scrn) HUS-137180
...
31
Tank Fuel Front HUS-151346
...
32
Cap Asm Fuel HUS-140527
...
33
Clamp Hose HUS-123487X
...
34
Strip Foam HUS-106082X
...
37
Line Fuel HUS-8543R
...
39
Pad Spacer HUS-109227X
...
40
Bushing HUS-3645J
...
41
Stem Tank Fuel HUS-139277
...
45
Screw Hex Wsh Thdrol 3/8-16 x 3/4 HUS-17000612
...
81
Nut Keps Hex 1/4-20 Unc HUS-73510400
