Husqvarna Q185H46A (2000) Tractor

Model: Q185H46A (2000)

Back To Assemblies

Save Part Not Listed?
product name

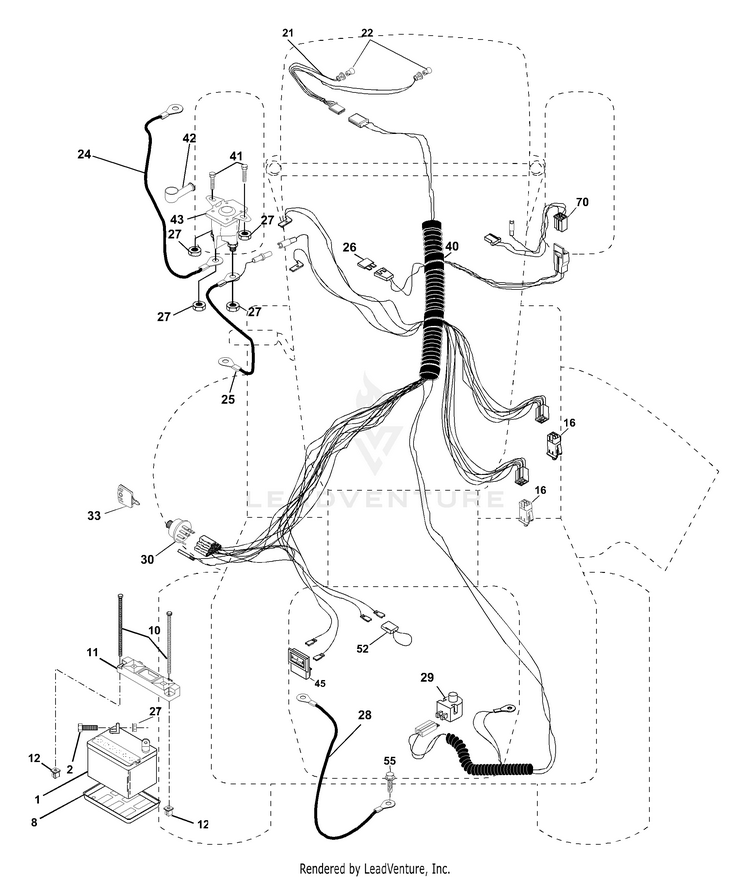

Electrical

...
...
1
Battery 12 Volt 25 Amp HUS-144925
...
2
Bolt Hex Hd 1/4-20unc X 3/4 HUS-74760412
...
8
Tray Battery HUS-7603J
...
10
Bolt Btr Frt 1/4-20 x 7.5 HUS-145211
...
11
Holddown Battery Front Mount HUS-150109
...
12
Nut Push Nylon 1/4" Battery Frt HUS-145769
...
16
Switch Interlock Push-In HUS-153664
...
21
Harness Socket Light HUS-166181
...
22
Bulb, Light # 1156 HUS-4152J
...
24
Cable Battery 6ga 11" Red HUS-4799J
...
25
Cable Battery 6 Ga 22" Red W/16 Wire HUS-146148
...
26
Fuse 15 Amp HUS-166180
...
27
Nut Keps Hex 1/4-20 Unc HUS-73510400
...
28
Cable Ground 6ga 21"black HUS-145491
...
29
Switch Plunger NC Gray HUS-121305X
...
30
Switch Ign HUS-163968
...
33
Key Ign HUS-140401
...
40
Harness Ignition HUS-170217
...
41
Bolt Fin Hex 1/4-20uncx1/2 HUS-71110408
...
42
Cover Terminal Red HUS-131563
...
43
Solenoid HUS-145673
...
45
Ammeter Rectangular HUS-121433X
...
52
Protection Loop HUS-141940
...
55
Screw Thdrol 5/16-18 x 1/2 HUS-17490508
...
70
Harness Engine HUS-170242
