Husqvarna Q165H46A (2000) Tractor

Model: Q165H46A (2000)

Back To Assemblies

Save Part Not Listed?
product name

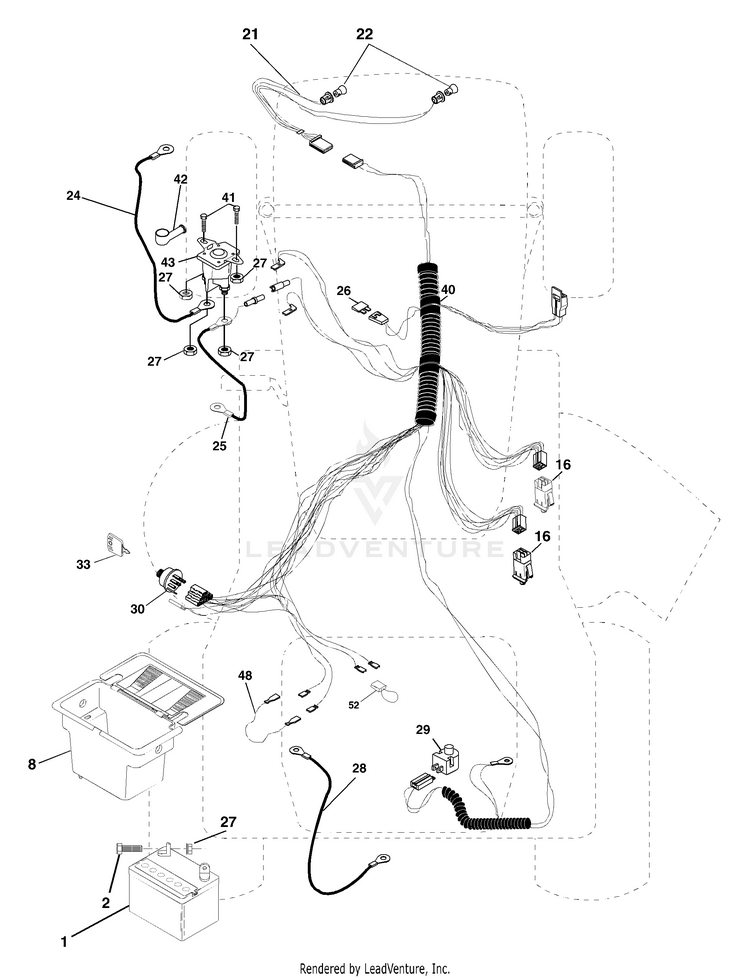

Electrical

...
...
1
Battery 12 Volt 25 Amp HUS-144925
...
2
Bolt Hex Hd 1/4-20unc X 3/4 HUS-74760412
...
8
Case Battery HUS-156417
...
16
Switch Interlock Push -In HUS-153664
...
21
Harness Asm Light W/4152J HUS-166181
...
22
Bulb Light #1156 HUS-4152J
...
24
Cable Battery 6 Ga 11"red HUS-4799J
...
25
Cable Battery 6 Ga w/16 wire,red HUS-146147
...
26
Fuse 15 AMP HUS-166180
...
27
Nut Keps Hex 1/4-20unc HUS-73510400
...
28
Cable Ground 6 Ga 12" black HUS-4207J
...
29
Switch Plunger Nc Gray HUS-121305X
...
30
Switch Ign HUS-163968
...
33
Key Ign HUS-140401
...
40
Harness Ign HUS-170217
...
41
Bolt Blk Fin Hex 1/4-20 X 1/2 HUS-71110408
...
42
Cover Terminal Red HUS-131563
...
43
Solenoid HUS-145673
...
48
Adapter Ammeter Rectangular HUS-140844
...
52
Protection Wire Loop HUS-141940
