Husqvarna Q14542B (2000) Tractor

Model: Q14542B (2000)

Back To Assemblies

Save Part Not Listed?
product name

Engine

...
...
1
Control Throt 35.5 Lh Flag HUS-141295
...
2
Screw Hex Thd Cut 1/4-20x5/8 T HUS-17720410
...
4
Muffler Exhaust HUS-149723
...
5
Exhaust Asm. Left HUS-144069
...
6
Exhaust Asm. Right HUS-144068
...
7
Clamp Tube Double Engine HUS-138129
...
8
Bolt 5/16-18unc x 3/4 w/sems HUS-150176
...
10
Shield Heat HUS-145552
...
11
Wash Lock Hvy Hlcl spr 1/4 HUS-10040400
...
12
Bolt Fin Hex 1/4-20 x 3/4 HUS-74780412
...
13
Gasket Muffler HUS-165287
...
14
Nipple Pipe 4-12" HUS-13280336
...
15
Elbow Std 90 Degree 3/8-18 Npt HUS-13200300
...
16
Washer Lock Ext Tooth 3/8 HUS-11050600
...
17
Screw Thdrol 3/8-16 x 1-1/2 Tytt HUS-17490624
...
23
Shield Brn/Dbr Guard HUS-169837
...
25
Control Choke HUS-145996
...
26
Nut Keps 3/8-24 UNF HUS-73920600
...
27
Screw TT #10-32.5 3/8 Flange HUS-152927
...
29
Arrestor Spark HUS-137180
...
31
Tank Fuel Front 2.00 HUS-161911
...
32
Cap Fuel HUS-140527
...
33
Clamp Hose Blk HUS-123487X
...
37
Line Fuel HUS-137040
...
40
Bushing Snap Nyl Blk Fuel Line HUS-124028X
...
44
Screw Hex wsh Thdrol 1/4-20 x 3/4 HUS-17670412
...
45
Screw Hex Wsh Thdr 3/8-16 x 3/4 HUS-17000612
...
46
Washer 9/32 x 7/8 x 16 Ga. HUS-19091416
...
81
Nut Keps Hex 1/4-20 Unc HUS-73510400

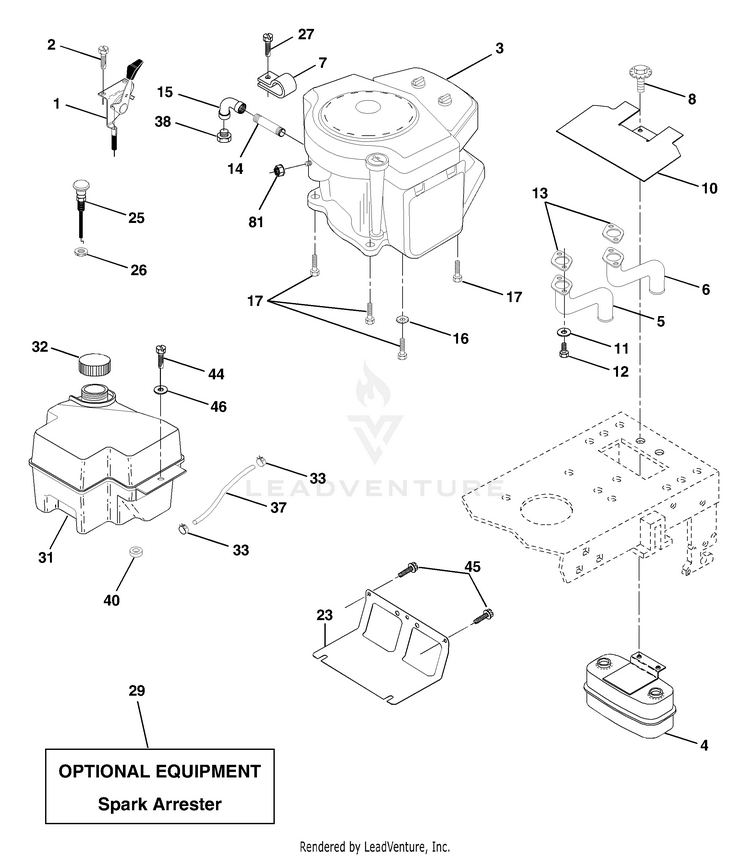

Schematic Image Zoomed
