Husqvarna Q14542A (2000) Tractor

Model: Q14542A (2000)

Back To Assemblies

Save Part Not Listed?
product name

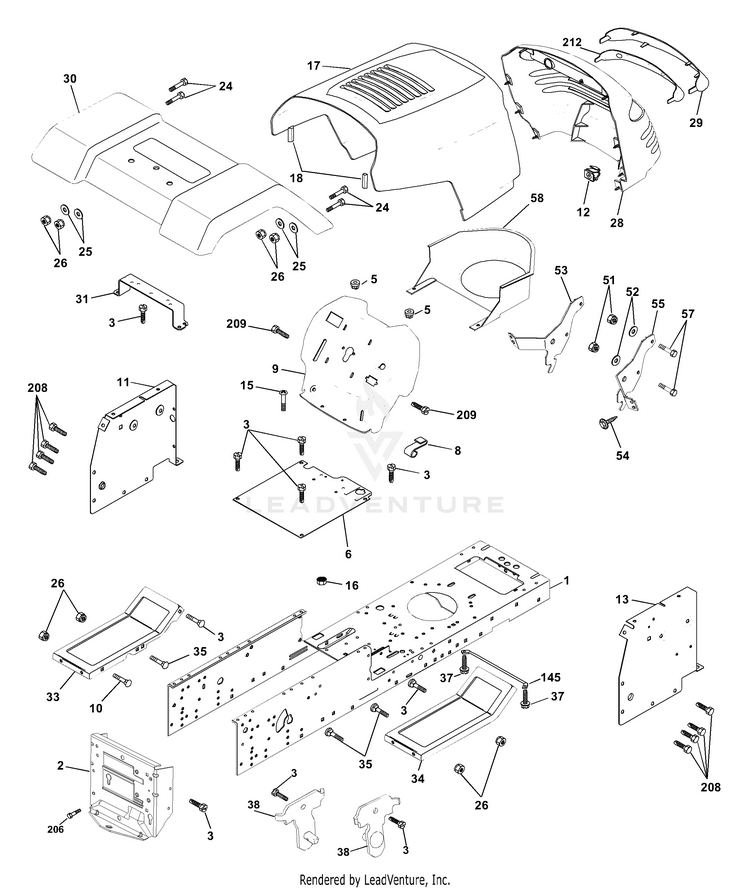

Chassis And Enclosures

...
...
1
Chassis HUS-169831
...
2
Drawbar HUS-169061
...
3
Screw 3/8-16 x 3/4 HUS-17060612
...
4
Washer 13/32 x 3/4 x 16 Ga. HUS-19131216
...
5
Bumper Hood/Dash HUS-155272
...
6
Saddle Slkscr Flat Lt 6Sp HUS-155924X012
...
8
Clip Retainer Slide-On HUS-155138
...
9
Dash HUS-168347X011
...
10
Bolt Rd Hd Sqnk. 3/8-16 Unc x 1 HUS-72140608
...
11
Panel Asm. Dash Lh HUS-155927
...
12
Clip Tinnerman Grile P/L HUS-145660
...
13
Panel Dash Rh HUS-172107X010
...
14
Screw Thdrol. 3/8-16 x 1/2 Ty-Tt HUS-17490608
...
15
Screw Mach Trhd 5/16-18 Unc x 3/4 HUS-74180512
...
16
Nut Keps 5/16-18 Unc HUS-73510500
...
17
Hood HUS-159639X602
...
18
Bumper Hood HUS-126938X
...
24
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 HUS-74780616
...
25
Washer 13/32 x 13/16 x 12 Ga. HUS-19131312
...
26
Nut Lock Hex w/Insert 3/8-16 UNC HUS-73800600
...
28
Grill Private Lable Blk HUS-157373
...
29
Lens Grille Private label HUS-140273X599
...
30
Fender Asm HUS-169465X602
...
31
Bracket Fender HUS-136619
...
33
Footrest HUS-145244X602
...
34
Footrest HUS-145243X602
...
35
Bolt Rd Hd Sht. Sqnk. 3/8-16 x 3/4 HUS-72110606
...
37
Screw Thdrol 5/16-18 x 1/2 Tyt HUS-17490508
...
38
Bracket Asm. Pivot Mower Rear HUS-169834
...
51
Nut Lock Hex W/Ins. 1/4-20 HUS-73800400
...
52
Washer 9/32 x 7/8 x 16 Ga. HUS-19091416
...
53
Bracket Grille LH HUS-144697
...
54
Screw Hex Wshd 8-18 x 7/8 HUS-161464
...
55
Bracket, Grille RH HUS-144696
...
57
Bolt Fin Hex 1/4-20 x .75 HUS-74780412
...
58
Air Duct Private Label HUS-150127
...
145
Rod Pivot Chassis/Hood HUS-156524
...
206
Bolt shoulder 5/16-18 HUS-170165
...
208
Screw Thdrol 3/8-16 x 1/2 HUS-17670608
...
209
Screw Hex Wsh Thdrol 3/8-16 HUS-17000612
...
xx
Plug Btn Blk HUS-5479J
