Husqvarna Q12538C (2000) Tractor

Model: Q12538C (2000)

Back To Assemblies

Save Part Not Listed?
product name

Seat

...
...
1
Seat HUS-127427
...
2
Bracket Seat Pivot HUS-140551
...
3
Bolt Hex 3/8 - 16 X 1 HUS-71110616
...
4
Washer 13/32 X 1 X10Ga. HUS-19131610
...
5
Clip Push-In Hinged HUS-145006
...
6
Nut Lock Hex w/Ins 3/8 - 16 HUS-73800600
...
7
Spring Seat Cprsn 2 250 Blk Zi HUS-124181X
...
8
Screw 3/8-16 x 1.5 HUS-17000616
...
9
Washer 13/32 X 1 X 14 Ga HUS-19131614
...
10
Pan Pnt Seat (Blk) HUS-155925
...
12
Bracket Pnt Mounting Switch HUS-121246X
...
13
Bushing Snap Blk Nyl HUS-121248X
...
14
Bolt Rdhd Sht Nk 1/4 - 20 X 1 -1/2 HUS-72050412
...
15
Spacer Split .28 X .96 HUS-134300
...
16
Spring Cprsn HUS-121250X
...
17
Nut Lock 1/4 Lge Flg HUS-123976X
...
21
Bolt Shoulder 5/16-18 Unc-2A HUS-171852
...
22
Nut Lock Hex w/Ins 5/16 - 18 HUS-73800500
...
23
Bolt Hex Black HUS-71110814
...
24
Washer 17/32 X 1-3/16 X 12 Ga HUS-19171912
...
25
Bolt Shoulder 5/16-18 X .62 HUS-127018X
...
26
Washer Lock Hvy Hlcl Spr 1/2 HUS-10040800

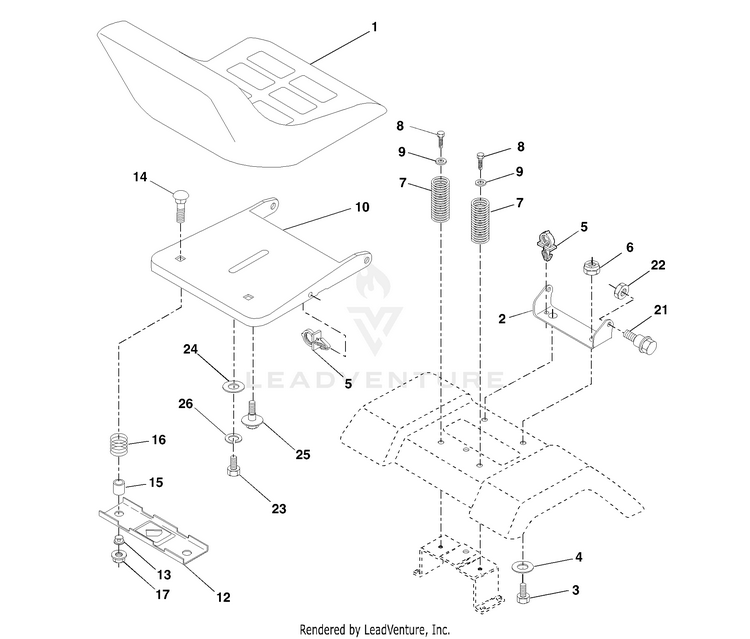

Schematic Image Zoomed
